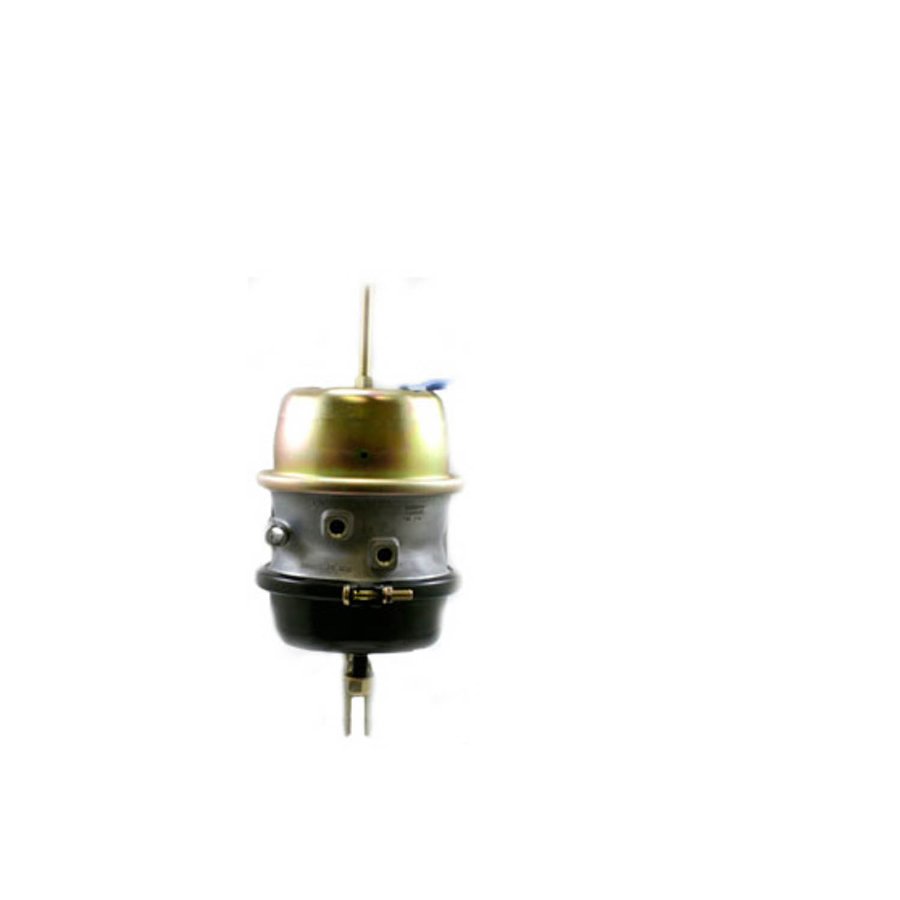

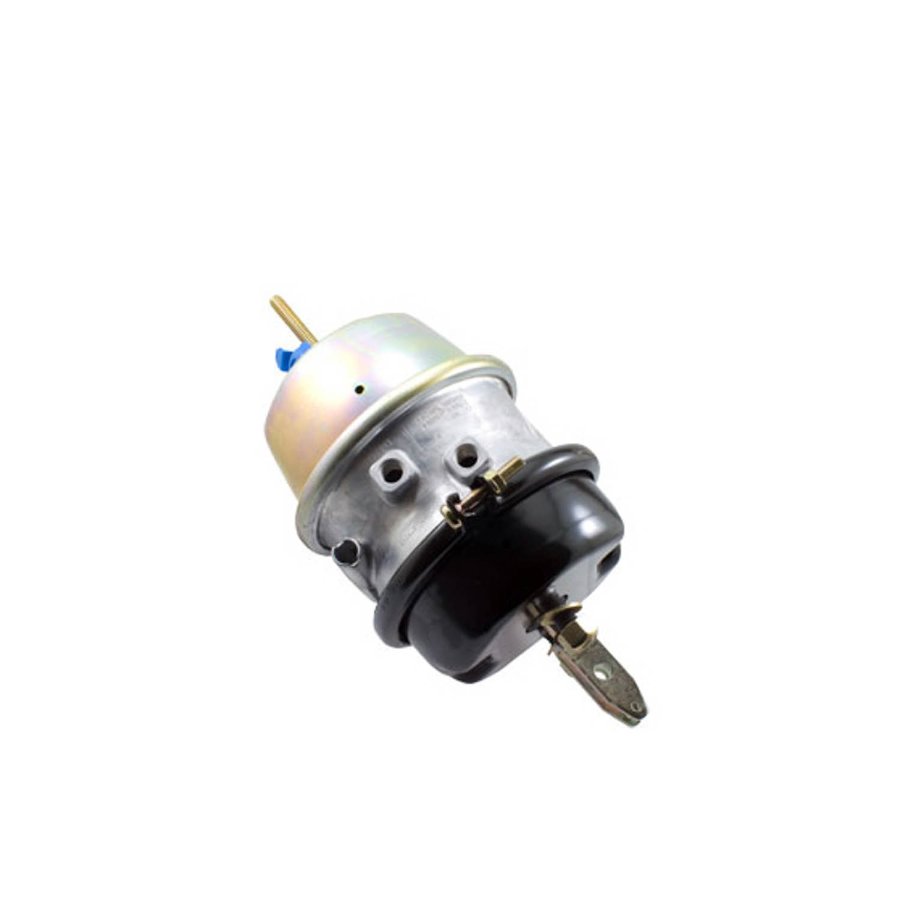

Haldex Brake Systems Air Brake Spring Brake Part No: GC3030LCW
$111.93
Upgrade your spring brakes on trucks with the Haldex Air Brake Spring Brake. Haldex innovates brake solutions for heavy vehicles worldwide, ensuring safer roads for generations. Trust Wofford Truck Parts for reliable safety parts!
Specifications
Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5” stroke to the 1624 2.25” stroke and 3636 3.0” stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ ® 2.5” and 3.0” stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.
- Combination with Welded Clevis - Long Stroke - Size 3030 - Square Bosses
A = Length from mounting bracket to end of Spring Housing
B = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clampband
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Stud Type: 5/8-11 UNC Grade 5
Stud Length: 1.50 in. (38.1mm)
Pushrod Thread: 5/8-18 UNF
Air Port Threads: 3/8-18 NPTF
Maximum Air Pressure: 150 psi
Stroke Type Long
Available Stroke 3.00", 76mm
A 9.9", 251mm
B 7.4", 187mm
C 8.3", 211mm
D 10.2", 259mm
J 1.00"
K 2.25"
Weight 21.9 lbs. , 9.9 kg.
Quantity 1
B = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clampband
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Stud Type: 5/8-11 UNC Grade 5
Stud Length: 1.50 in. (38.1mm)
Pushrod Thread: 5/8-18 UNF
Air Port Threads: 3/8-18 NPTF
Maximum Air Pressure: 150 psi
Stroke Type Long
Available Stroke 3.00", 76mm
A 9.9", 251mm
B 7.4", 187mm
C 8.3", 211mm
D 10.2", 259mm
J 1.00"
K 2.25"
Weight 21.9 lbs. , 9.9 kg.
Quantity 1
Weight
23.7
Compatibility
Combination with Welded Long Stroke - Size 3030 - Square Bosses
Alternative Part Numbers
- Anchorloc 1373030030
- Anchorloc 1373030031
- Anchorloc 1373030032
- Anchorloc 1373030033
- Anchorloc 1373030034
- Anchorloc 1373030035
- Anchorloc 1373030036
- Anchorloc 1373030037
- Anchorloc 1373030038
- Anchorloc 1373030044
- Anchorloc 1373030050
- Anchorloc 1373030051
- Anchorloc 1373030052
- Anchorloc 1373030053
- Anchorloc 1373030054
- Anchorloc 1373030055
- Anchorloc 1373030056
- Anchorloc 1373030057
- Anchorloc 1373030058
- Anchorloc 1373030063
- Anchorloc 1373030064
- Anchorloc 1373030112
- Anchorloc 1373030118
- Anchorloc 1373030165
- Anchorloc 1373030182
- Anchorloc 1373030183
- Anchorloc 1373030187
- Anchorloc 1373030188
- Anchorloc 1373030189
- Anchorloc 1373030190
- Anchorloc 1373030191
- Anchorloc 1373030192
- Anchorloc 1373030193
- Anchorloc 1373030194
- Anchorloc 1373030195
- Anchorloc 1373030209
- Anchorloc 1373030214
- Anchorloc 1373030215
- Anchorloc 1373030217
- Anchorloc 1373030218
- Anchorloc 1373030219
- Anchorloc 1373030220
- Anchorloc 1373030221
- Anchorloc 1373030256
- Anchorloc 1373030257
- Anchorloc 1373030258
- Anchorloc 1373030259
- Anchorloc 1373030320
- Anchorloc 1373030322
- Anchorloc 1373030323
- Anchorloc 1373030324
- Anchorloc 1373030350
- Anchorloc 1373030351
- Anchorloc 1373030352
- Anchorloc 1373030353
- Anchorloc 1373030354
- Anchorloc 1373030355
- Anchorloc 1373030368
- Anchorloc 1373030369
- Anchorloc 1373030389
- Anchorloc 1373030390
- Anchorloc 1373030391
- Anchorloc 1373030394
- Anchorloc 1373030395
- Anchorloc 1373030396
- Anchorloc 1373030397
- Anchorloc 1373030400
- Anchorloc 1373030401
- Anchorloc 1373030402
- Anchorloc 1373030403
- Anchorloc 1373030404
- Anchorloc 1373030405
- Anchorloc GC3030LCW
- Bendix K020869
- Bendix K022882
- Bendix NT3030ELS-WC
- Daimler HDX1373030050
- Daimler HDX1373030051
- Daimler HDX1373030053
- Daimler HDX1373030057
- Daimler HDX1373030058
- Daimler HDX1373030059
- Daimler HDX1373030064
- Daimler HDX1373030187
- Daimler HDX1373030188
- Fleetrite FLT3030LCB20
- Freightliner Trucks HDX1373030050
- Freightliner Trucks HDX1373030051
- Freightliner Trucks HDX1373030052
- Freightliner Trucks HDX1373030053
- Freightliner Trucks HDX1373030054
- Freightliner Trucks HDX1373030055
- Freightliner Trucks HDX1373030056
- Freightliner Trucks HDX1373030057
- Freightliner Trucks HDX1373030058
- Freightliner Trucks HDX1373030063
- Freightliner Trucks HDX1373030064
- Haldex 1373030369
- Haldex S1373030030
- Haldex S1373030031
- Haldex S1373030032
- Haldex S1373030033
- Haldex S1373030035
- Haldex S1373030037
- Haldex S1373030038
- Haldex S1373030182
- Haldex S1373030183
- Haldex S1373030322
- Haldex S1373030323
- Haldex S1373030324
- MGM Brakes 3230951
- MGM Brakes 3230951X
- MGM Brakes 3232951
- MGM Brakes 3832951
- Midland 1373030201
- Midland 1373030202
- Midland 1373030203
- Navistar 2602422C91
- Navistar 2602428C91
- Navistar 2602429C91
- Navistar 2602438C91
- Navistar 3679384C91
- Navistar 3679385C91
- Navistar 3682360C91
- Navistar 3682361C91
- Navistar 3682362C91
- Navistar 3682388C91
- Navistar 3682389C91
- Navistar 4045882C91
- Navistar S1373030030
- Navistar S1373030031
- Navistar S1373030032
- Navistar S1373030033
- Navistar S1373030034
- Navistar S1373030035
- Navistar S1373030036
- Paccar Parts S1373030182
- Paccar Parts S1373030183
- Paccar Parts S1373030256
- Paccar Parts S1373030257
- Paccar Parts S1373030258
- Paccar Parts S1373030259
- RANGER BRAKE 3030LS-WCR
- Ryder U55 GC3030LCW
- Ryder V42 3230951
- Thomas Built Buses 151262
- Volvo 21416316
- Volvo 21416317
- Volvo 21997706
- Volvo 22372843
- Volvo 22372844
- Volvo 22448029
- Volvo 24424204
- Volvo 24424205
- Volvo GM Heavy Truck 24424204
- Volvo GM Heavy Truck 24424205
