Air Brake Chamber

Service Chamber with Welded Clevis - Extra Long Stroke - Size T24

Haldex Brake Systems Part No: SC24XLCW

$71.67

Specifications

Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5” stroke to the 1624 2.25” stroke and 3636 3.0” stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ ® 2.5” and 3.0” stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.

Weight

9.55

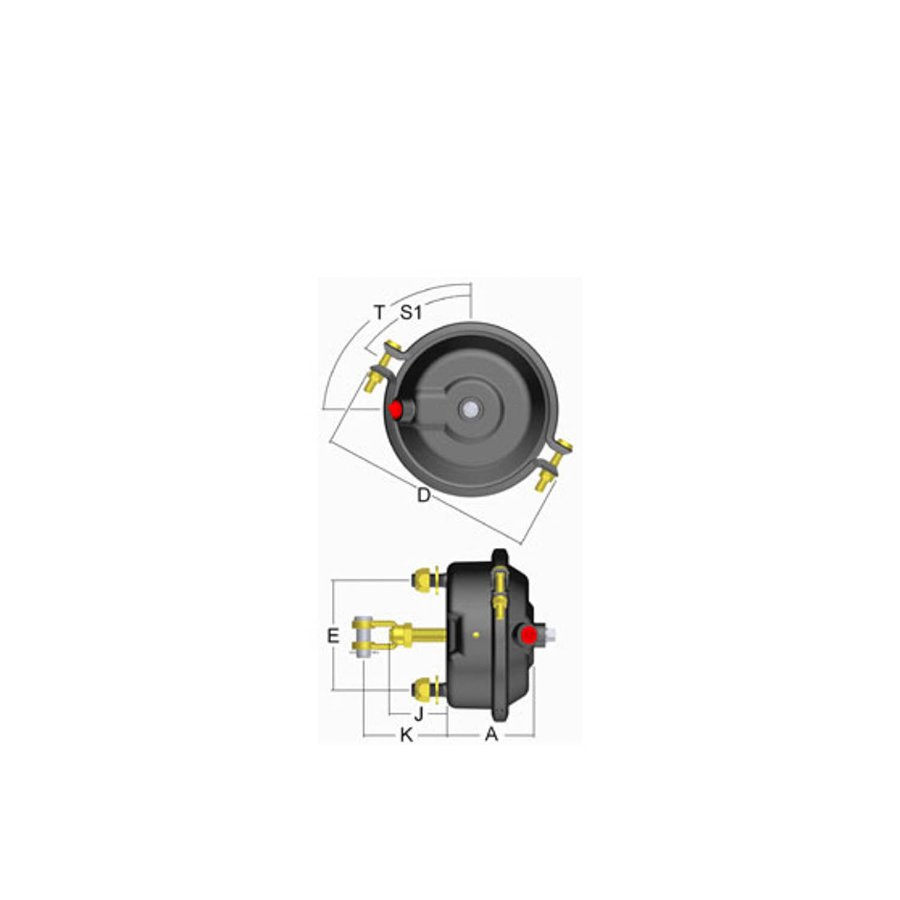

A = Length from mounting bracket to end of Spring Housing
D = Dimension at Service Clampband
E = Stud Spacing: 4.75" (120.7mm) with 5/8-11 UNC studs
J = Pushrod Length from face of Service Housing: 5/8-18 UNF pushrod threads
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Actuator Type Size 24
Stroke Type Extra Long
Available Stroke 3.00", 76mm
A 4.3", 109mm
D Dimension at Service Clampband
7.5"
191mm
E 4.75", 120.7mm
J 1.00"
K Distance to Clevis Pin centerline from face of Service Housing
2.25"
T 0°

Compatibility

Service Chamber with Welded Extra Long Stroke - Size T24

Alternative Part Numbers

Anchorloc 127240003
Anchorloc 127240004
Anchorloc 127240006
Anchorloc 127240010
Anchorloc 127240011
Anchorloc 127240012
Anchorloc 127240030
Anchorloc 127240031
Anchorloc 127240032
Anchorloc 127240033
Anchorloc 127240035
Anchorloc 127240037
Anchorloc 127240048
Anchorloc 127240305
Anchorloc S127240030
Anchorloc S127240033
Anchorloc S127240034
Anchorloc SC24XLCW
Bendix K058315
Bendix K058753
Daimler HDX127240010
Daimler HDX127240011
Daimler HDX127240012
Freightliner Trucks HDX127240010
Freightliner Trucks HDX127240011
Freightliner Trucks HDX127240012
Haldex 127240220
Haldex S127240003
Haldex S127240006
Haldex S127240010
Haldex S127240030
Haldex S127240033
Haldex S127240034
Haldex S127240035
Haldex S127240048
Haldex S129240090
Haldex S129240091
Haldex S129240092
Meritor D41-3276-X-24
MGM Brakes 1428901
Navistar 2602436C91
Navistar 2602974C91
Navistar 2602975C91
Navistar 3682379C91
Navistar 3682380C91
Navistar 3682381C91
Navistar 3857755C91
Navistar 3857756C91
Navistar 3954966C91
Navistar S127240031
Navistar S127240032
Navistar S127240035
Rockwell International D41-3276-X-24
Thomas Built Buses 151692
Volvo 20811896
Volvo 21370106
Volvo 21370850
Volvo 24424193
Volvo GM Heavy Truck 24424193
