Universal LED Projector Headlight Assembly with Glow Position & Marker LED Accents
Upgrade your vehicle’s visibility and style with the TLED-H134 Universal LED Projector Headlight Assembly (Passenger Side) by TRUX Accessories. This patented headlight design includes an integrated traditional visor, housing bucket, and all necessary hardware for hassle-free installation. Equipped with projector beam technology, it delivers a wider, more focused light beam for superior road visibility. The dual-function LED accents offer a white glow position (DRL auxiliary) and amber marker lights, adding both functionality and modern aesthetics. Built to replace OEM 4" x 6" headlight configurations, it ensures a perfect fit for a wide range of vehicles. An optional blue backlit auxiliary function is available, with an independent wire for easy compliance with regional regulations. Sleek and durable, this chrome-finished headlight assembly offers the ideal combination of performance and style. Find it at Wofford Truck Parts today for a premium lighting upgrade.
$501.82
Specifications
The TLED-H134 Universal LED Projector Headlight Assembly (Passenger Side) by TRUX Accessories combines cutting-edge lighting technology with a patented, stylish design. This assembly comes complete with an integrated traditional visor, housing bucket, and mounting hardware for a secure and straightforward installation. Featuring advanced projector beam technology, it provides a wider and more focused light beam for enhanced visibility during nighttime or low-light driving conditions.

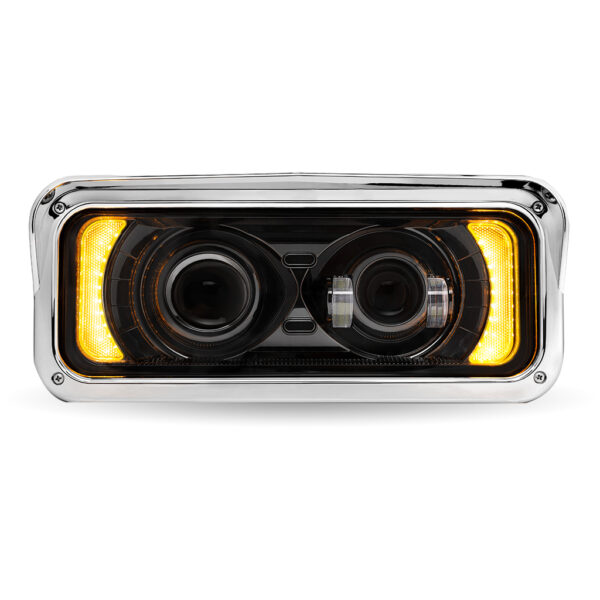

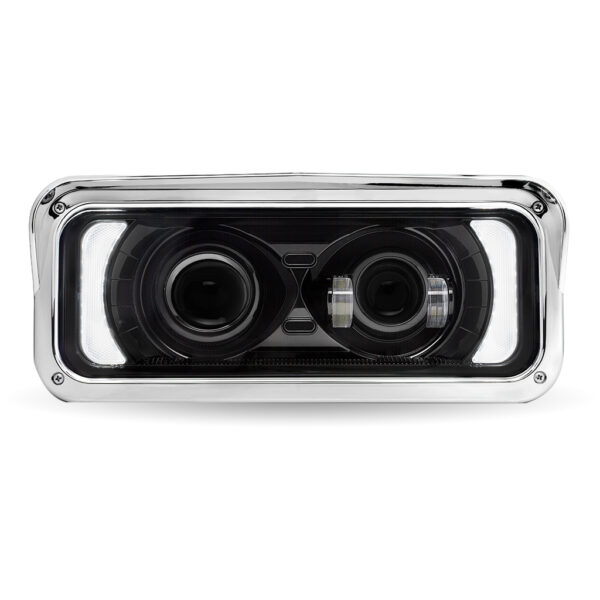

The dual-function LED accents include a white glow position (DRL auxiliary) and amber marker lights, offering a sleek, modern aesthetic while improving road safety. Designed to replace OEM 4" x 6" headlight configurations, this headlight assembly is compatible with a variety of vehicles, ensuring a precise fit.

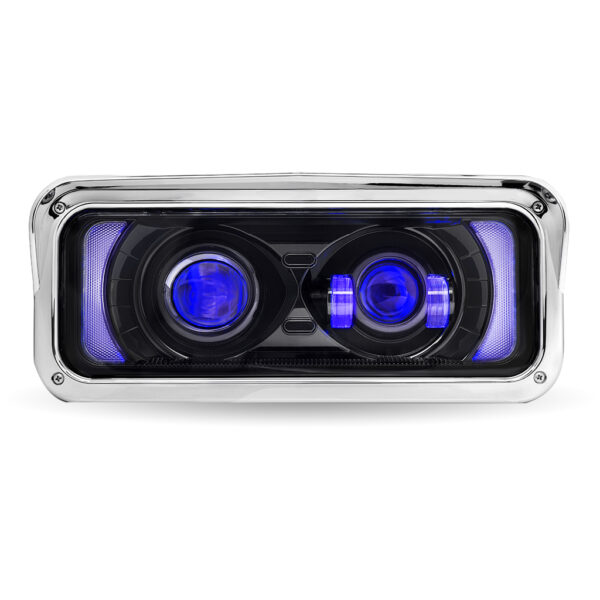

Additionally, the optional blue backlit auxiliary function provides customization and is independently wired, allowing you to turn it off in regions where blue lights are restricted. Finished in chrome for a polished look, the TLED-H134 is a high-performance headlight assembly perfect for drivers looking to upgrade their vehicle’s lighting system. Available now at Wofford Truck Parts!
Size Double 4" x 6"
Sold Individually
Compliance CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type LED Projector
Function 1 Combination High & Low Beam with White Glow Position (DRL Auxiliary)
Function 2 Marker
Function 3 Optional Backlit Auxiliary
LED Power High: 28 Watts, Low: 11 Watts
Raw Lumens High: 5000 Lumens, Low: 3000 Lumens
Effective Lumens High: 2000 Lumens, Low: 1200 Lumens
Operating Voltage 9-30 Volts (DRL Compatible)
Current Draw @ 12 Volts High: 2.5 Amps, Low: 0.87 Amps
DRL Amperage (Watts/Amps) 0.4 Amps
Turn / Marker Amperage (Watts/Amps) 0.4 Amps
Interior Color Black
Lens Color Clear
Lens Material Polycarbonate
Housing Material ABS Plastic
Product Restriction Blue Backlit function has an independent wire that will allow you to turn it off when driving in any region where blue is not permitted
Waterproof Rating IP67 Rating
What's Included Housing Bucket & Hardware Included
Compatibility
Freightliner Classic 1990 - 2007
Kenworth T600 1985 - 2007
Kenworth T800 1987 - Current Year
Kenworth W900 1984 - Current Year
Peterbilt 357 1986 - 2007
Peterbilt 365 2007 - 2009
Peterbilt 378 1986 - 2007
Peterbilt 379 1987 - 2007
Western Star 4800 Series 2002 - Current Year
Western Star 4900 Series 2002 - Current Year
Western Star 6900 Series 2002 - Current Year
