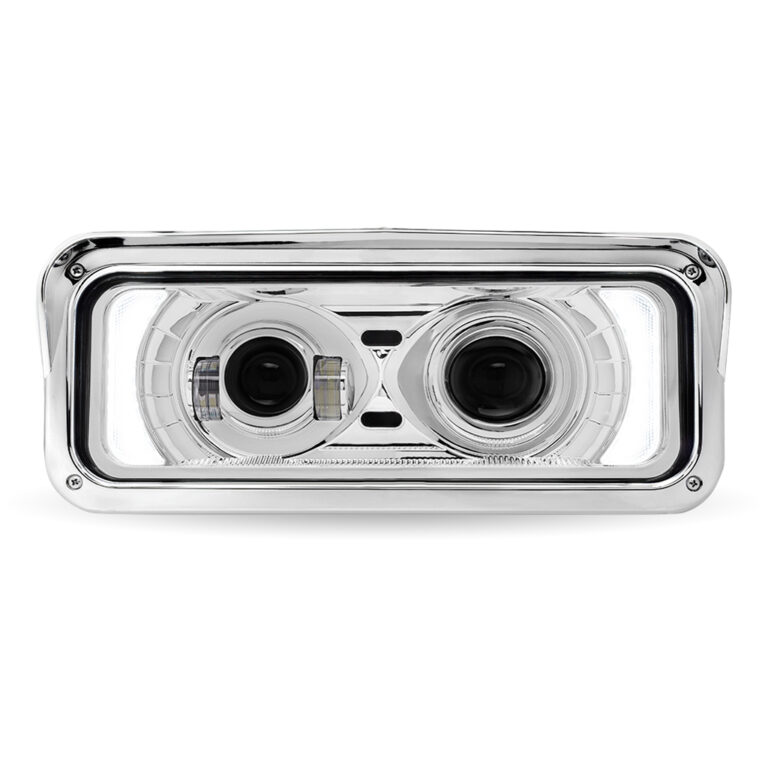

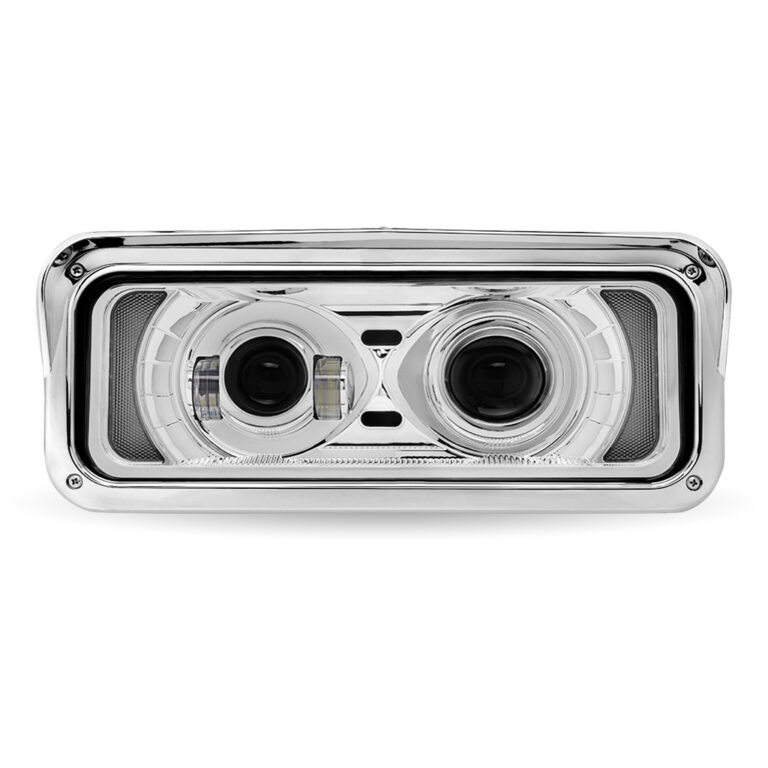

Universal LED Projector Headlight Assembly with Glow Position & Marker LED Accents
Enhance your vehicle's lighting and style with the THORN-2 Universal LED Projector Headlight Assembly by TRUX Accessories. This patented design includes an integrated traditional visor, housing bucket, and hardware for seamless installation. The advanced projector technology ensures a wider beam for optimal visibility, while the dual-function white glow position (DRL auxiliary) and amber marker LED accents add a modern aesthetic. Replacing OEM 4" x 6" headlight configurations, this assembly offers a versatile upgrade with optional blue backlit functionality, controlled by an independent wire to comply with regional regulations. Perfectly crafted for durability and performance, the THORN-2 headlight assembly is an ideal choice for improving safety and visibility. Available in a sleek chrome finish, this headlight assembly blends style and functionality, making it a must-have upgrade for professional and everyday drivers. Get it now at Wofford Truck Parts!
$501.82
Specifications
The THORN-2 Universal LED Projector Headlight Assembly by TRUX Accessories is designed to provide unparalleled lighting performance, durability, and style. This assembly features a patented design that includes an integrated traditional visor, housing bucket, and hardware, ensuring an easy and secure installation. With projector technology, it offers a wider beam for enhanced visibility, making nighttime and low-light driving safer and more comfortable.

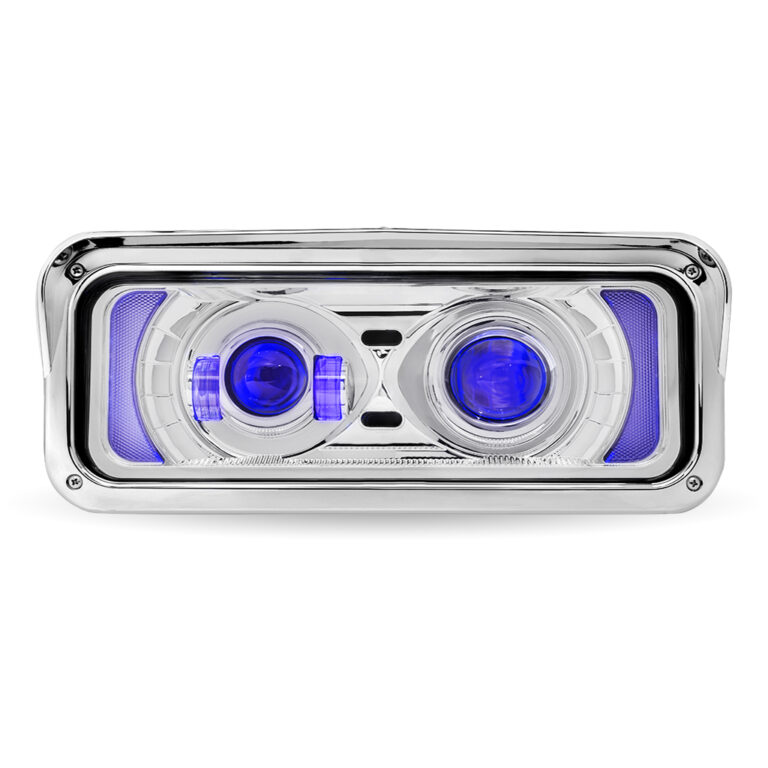

The headlight includes dual-function LED accents, with a white glow position (DRL auxiliary) and amber marker for added functionality and a modern look. Its optional blue backlit auxiliary function can be independently wired, allowing you to disable the blue light in regions where it is restricted.
Designed to replace OEM 4" x 6" headlight configurations, the THORN-2 is built for versatility and durability. Finished in chrome for a sleek appearance, this headlight assembly is an essential upgrade for drivers seeking style and superior performance. Available now at Wofford Truck Parts!
Style Freightliner, Kenworth, Peterbilt, Western Star
Size Double 4" x 6"
Sold Individually
Compliance CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type LED Projector
Function 1 Combination High & Low Beam with DRL Accent

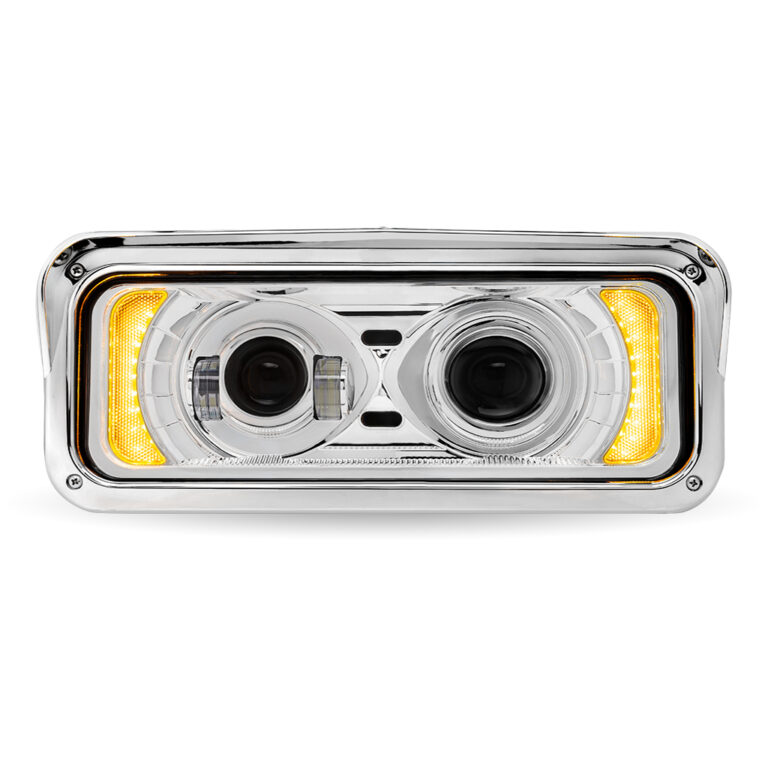

Function 2 Marker
Function 3 Optional Backlit Auxiliary
LED Power High: 28 Watts, Low: 11 Watts
Raw Lumens High: 5000 Lumens, Low: 3000 Lumens
Effective Lumens High: 2000 Lumens, Low: 1200 Lumens
Operating Voltage 9-30 Volts (DRL Compatible)
Current Draw @ 12 Volts High: 2.5 Amps, Low: 0.87 Amps
DRL Amperage (Watts/Amps) 0.4 Amps
Turn / Marker Amperage (Watts/Amps) 0.4 Amps
Interior Color Chrome
Lens Color Clear
Lens Material Polycarbonate
Housing Material ABS Plastic

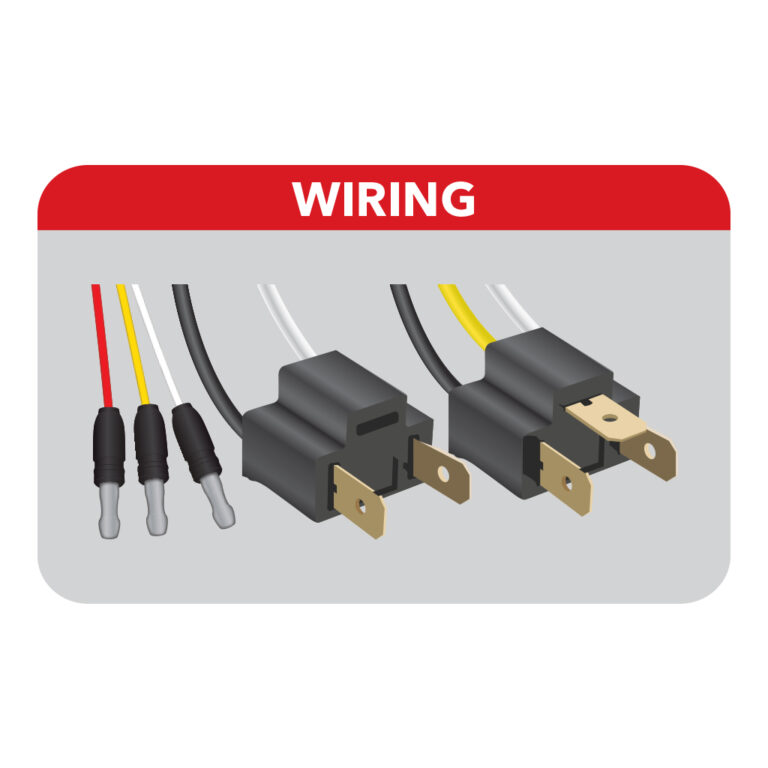

Product Restriction Blue Backlit function has an independent wire that will allow you to turn it off when driving in any region where blue is not permitted
Waterproof Rating IP67 Rating
What's Included Housing Bucket & Hardware Included
Package Dimensions 18.8"L x 9.5"W x 9.8"H
Inner Box QTY 1 PC
Warranty 3 Year Warranty
Compatibility
Kenworth T600 1985 - 2007
Kenworth T800 1987 - Current Year
Kenworth W900 1984 - Current Year
Peterbilt 357 1986 - 2007
Peterbilt 365 2007 - 2009
Peterbilt 378 1986 - 2007
Peterbilt 379 1987 - 2007
Western Star 4800 Series 2002 - Current Year
Western Star 4900 Series 2002 - Current Year
Western Star 6900 Series 2002 - Current Year
Alternative Part Numbers
KH0160R
TLED-H125
