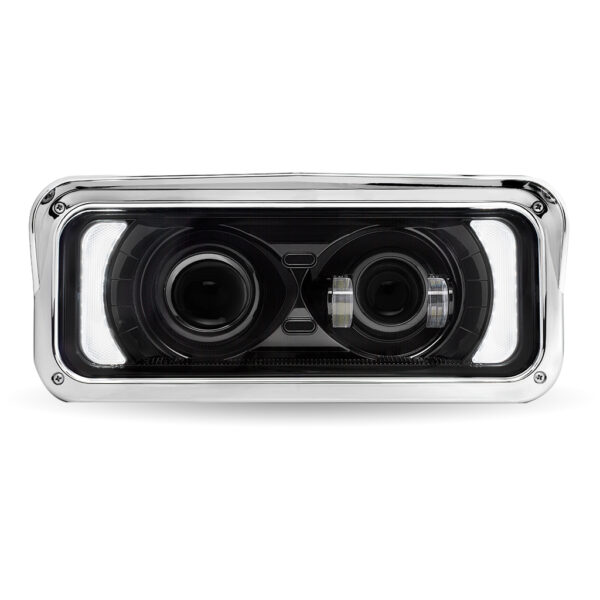

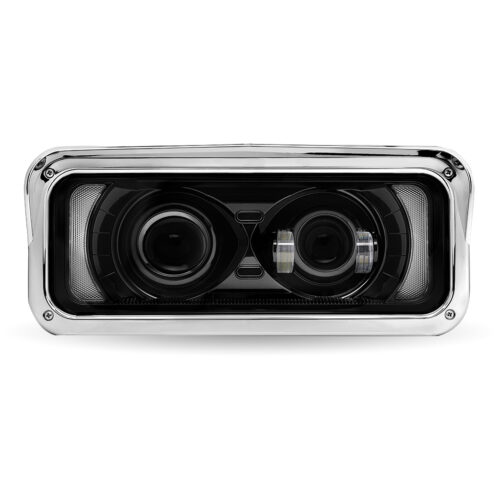

Trux TLED-H134 Rectangular Backlit LED Projector Headlight Assembly
The Trux TLED-H134 rectangular backlit LED projector headlight assembly delivers a sharp, modern lighting upgrade for trucks using standard 4″×6″ housings. It features bright projector beam technology for improved road visibility and dual-function LED accents, including a white glow and amber marker lights. Designed for durability and style, it installs easily with the included plug-and-play hardware. Sold by Wofford Truck Parts, it's a reliable choice for drivers wanting premium performance and standout lighting.
$418.18
Specifications
The Trux TLED-H134 rectangular backlit LED projector headlight assembly delivers a strong upgrade for trucks using standard 4″×6″ headlight setups. Its projector beam design provides a wider, sharper pattern for better visibility on low and high beams. White glow-position LEDs and amber marker LEDs enhance safety and style, while an optional blue backlight can be wired separately based on regional rules. A durable ABS housing, polycarbonate lens, and IP67 sealing offer long-term protection. Compatible with many major truck models, it includes mounting hardware for a simple installation through Wofford Truck Parts.
Size Double 4" x 6"
Sold Individually
Compliance CMVSS-108, DOT/SAE, FMVSS-108
Bulb Type LED Projector
Function 1 Combination High & Low Beam with White Glow Position (DRL Auxiliary)

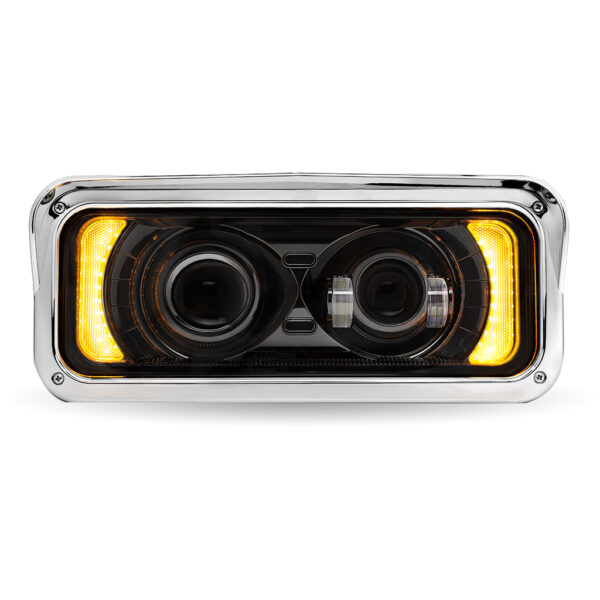

Function 2 Marker

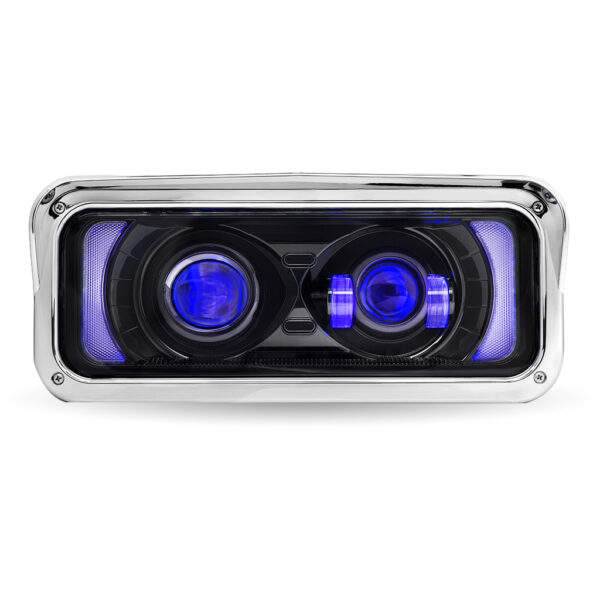

Function 3 Optional Backlit Auxiliary
LED Power High: 28 Watts, Low: 11 Watts
Raw Lumens High: 5000 Lumens, Low: 3000 Lumens
Effective Lumens High: 2000 Lumens, Low: 1200 Lumens
Operating Voltage 9-30 Volts (DRL Compatible)
Current Draw @ 12 Volts High: 2.5 Amps, Low: 0.87 Amps
DRL Amperage (Watts/Amps) 0.4 Amps
Turn / Marker Amperage (Watts/Amps) 0.4 Amps
Interior Color Black
Lens Color Clear
Lens Material Polycarbonate
Housing Material ABS Plastic
Product Restriction Blue Backlit function has an independent wire that will allow you to turn it off when driving in any region where blue is not permitted
Waterproof Rating IP67 Rating
What's Included Housing Bucket & Hardware Included
Compatibility
Freightliner Classic 1990 - 2007
Kenworth T600 1985 - 2007
Kenworth T800 1987 - Current Year
Kenworth W900 1984 - Current Year
Peterbilt 357 1986 - 2007
Peterbilt 365 2007 - 2009
Peterbilt 378 1986 - 2007
Peterbilt 379 1987 - 2007
Western Star 4800 Series 2002 - Current Year
Western Star 4900 Series 2002 - Current Year
Western Star 6900 Series 2002 - Current Year
