Alignment Tools

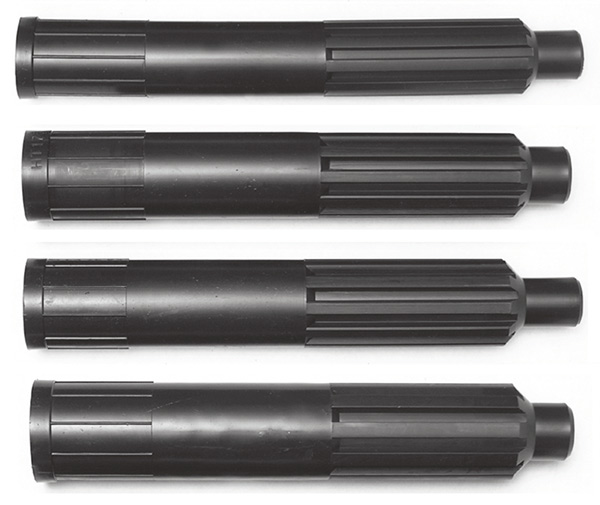

Mid America Clutch’s AT‑175X1 alignment tool is a precision‑made clutch centering tool featuring a 1 ¾″ spline and 1″ pilot designed to match transmission input shafts. The durable plastic tool ensures exact alignment during clutch installation, avoiding input shaft damage. Offered by Wofford Truck Parts, it’s ideal for heavy‑duty commercial truck clutch rebuilds and maintenance operations requiring repeatable, accurate fitment.
$16.18
Specifications
The AT‑175X1 alignment tool from Mid America Clutch (Midco Companies) is designed for clutch installation requiring a 1 ¾″ spline diameter and a 1″ pilot (.980 actual), with 10 spline teeth. Engineered for precision, it duplicates transmission input shaft geometry to ensure flawless clutch disc centering and proper alignment during assembly, significantly reducing the risk of spline or pilot bore damage. Made of rugged plastic and quality‑tested for dependable use in heavy‑duty environments, it's commonly used in clutch service for trucks with that input shaft spec. Supplied via Wofford Truck Parts, the AT‑175X1 delivers consistent installation accuracy and helps maintain clutch longevity and system performance.
Compatibility
Alternative Part Numbers
AT‑175X1
HJAT175A
MC AT175
MCAT175
