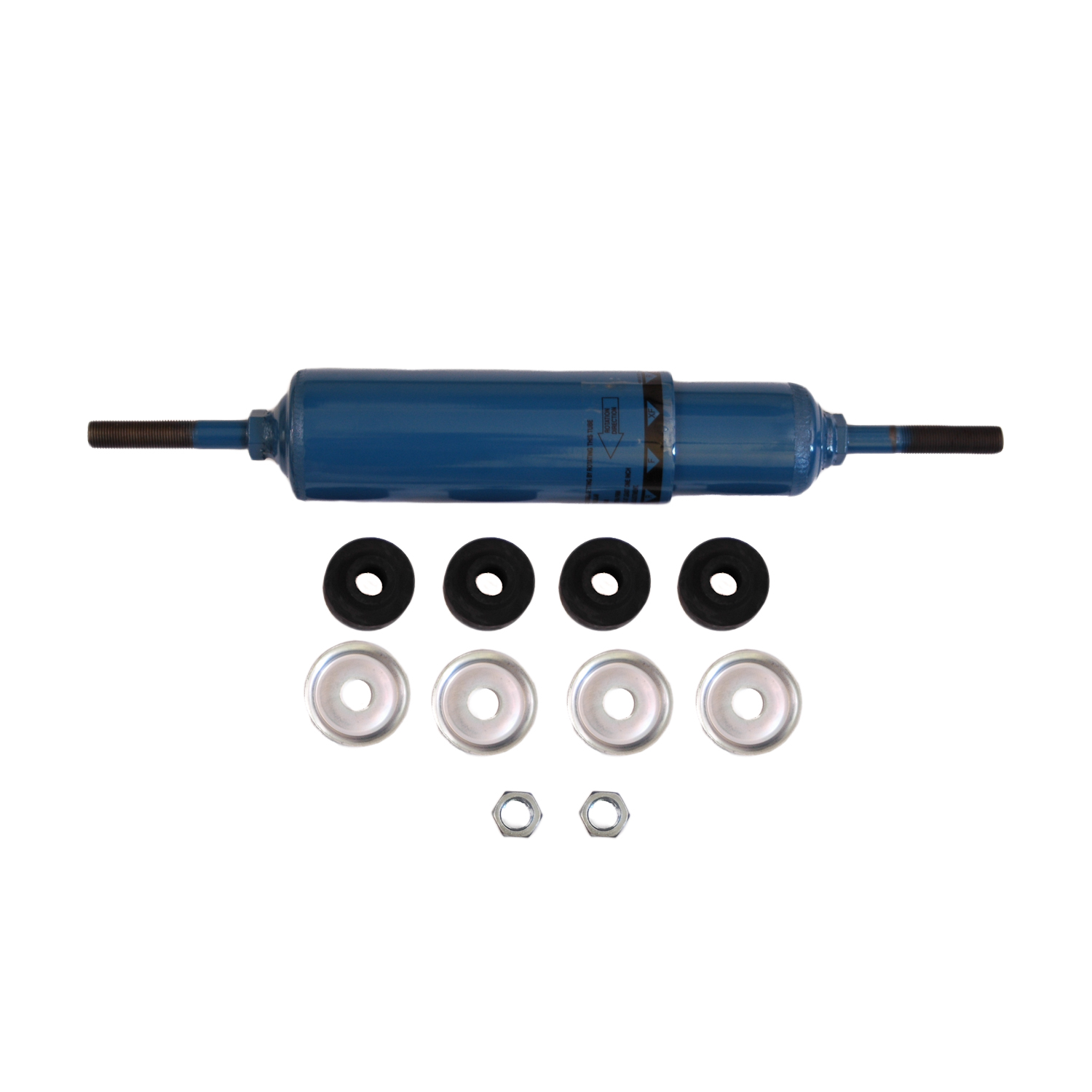

GasSLXTM Shocks – Adjustable Commercial Truck and Trailer Shocks (89000 series) - The three position GasSLX™ adjustable shocks absorbers by Gabriel® allow you to choose from one of three settings – Firm, Regular and Extra Firm – to match different applications. The GasSLX shock incorporates a gas cell design, creating a physical barrier between gas and fluid, preventing aeration which can cause fade, or reduction in damping force. This gas cell technology is a full-life feature and is better suited for longer-life commercial vehicle applications. And like all Gabriel shocks and struts, GasSLX shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Advanced gas cell technology improves gas retention and provides more consistent high temperature operation. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear.
Product Line: GasSLX
Extended Length: 26.31 in. 668.27 mm.
Collapsed Length: 16.03 in. 407.16 mm.
Stroke: 10.28 in. 261.11 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 791 lb. **
Compression: 276 lb. **
** for the GasSLX Series, forces are at the "Firm" (F) Setting
Weight
9.3270

Compatibility

Kenworth:
T680: 2013–2024
W900: 2008–2024
C500: 1981–2016
Peterbilt:
567: 2014–2024
579: 2013–2024
587: 2011–2018
379: 1986–2007
Freightliner:
Cascadia: 2008–2024
Columbia: 2000–2008
Coronado: 2001–2009
Volvo:
FE: 1992–1998

Alternative Part Numbers

  • OEM:
  • <br />
  • 03-08781
  • 1012388000
  • 1012390000
  • 200376
  • 200495
  • 277A13
  • 308781
  • 508781
  • 555019
  • 65468
  • 65468M
  • 65528
  • 66434
  • 665826
  • 665844
  • 671091
  • 711011
  • 711017
  • 716005
  • 74081
  • 83136
  • 83176227
  • 85069
  • 85328
  • 85705
  • 89447
  • 89455
  • A85069
  • A89455
  • AMS650468
  • AR1404
  • AR1425
  • B711001
  • BULL DOG HD1215-0076
  • BULL DOG HD1215-0076
  • C71-1011
  • C71-1011PLUS
  • C71-1011SPL
  • C71-1017
  • C71-6005
  • C711011
  • C711011PLUS
  • C711011RT
  • C711011SPL
  • C711014
  • C711017
  • C716005
  • CAH028
  • D8HZ18124A
  • DPM65468
  • E6HZ18124A
  • FLS-85069
  • GAB/85069
  • GAB85069
  • GABRIEL 89455
  • GBL89455
  • GSX-89455
  • M65468
  • M65528
  • M89455
  • MAE 65468
  • MAE65468
  • MERITOR M89455
  • MERITOR M89455
  • MISA65468
  • MONROE 65468
  • MONROE 65528
  • S-20451
  • S20451
  • SA5069
  • SA65468
  • SA74081
  • SMR560429
  • T141048
