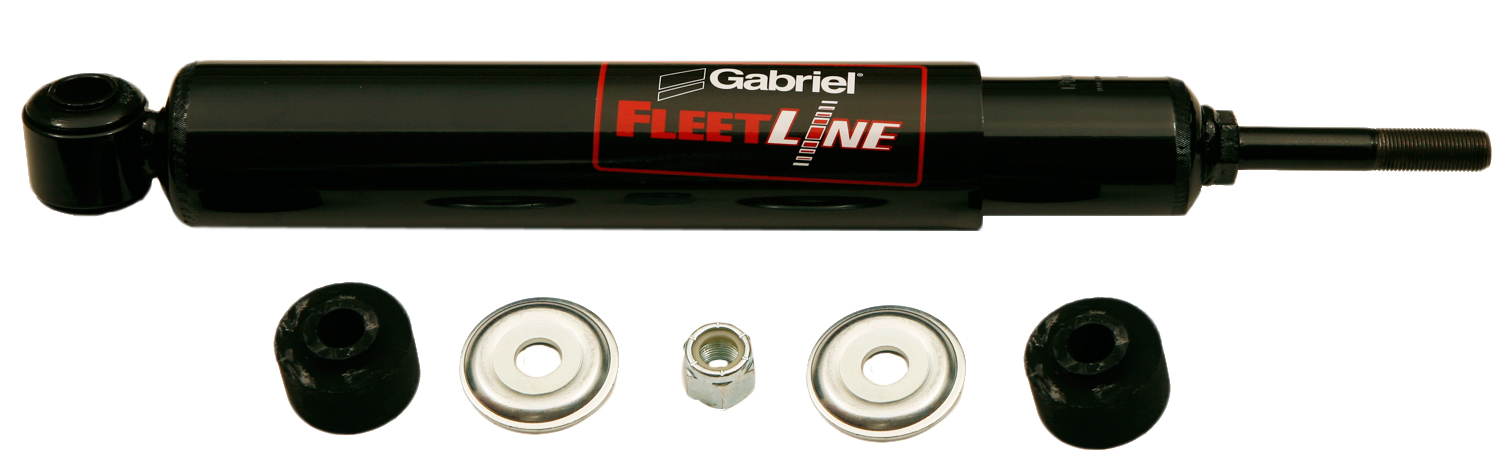

Suspension Shock Absorber

Enhance your low friction suspension with Gabriel Suspension Shock Absorber 83111. These heavy-duty shock absorbers are ideal replacements, offering added durability and enhanced valving rates to counter initial suspension softening. Shop Fleetline shocks from Wofford Truck Parts today!

Gabriel Part No: 83111

$52.87

Specifications

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (83000 series) - Designed as a direct replacement for the original equipment shock, FleetLine™ shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Weight

6.8690

Product Line: FleetLine
Extended Length: 26.17 in. 664.72 mm.
Collapsed Length: 15.93 in. 404.62 mm.
Stroke: 10.24 in. 260.1 mm.
Bore: 1-3/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 560 lb.
Compression: 141 lb.

Compatibility

Hendrickson Truck Suspension Systems   Additional Applications   MaxAir / AL-405 Models
Hendrickson Truck Suspension Systems   HAS - Series   HAS - 40LH With O.E.M. Number
Mack   Additional Applications   Models with MAC AL405 Suspension
Mack   CH   CH600 Models with ALV Hendrickson Suspension
Mack   CH   CH600 Models with Hendrickson AL-405 Rear Suspension
Mack   CL   CL600, CL700 Models with ALV Hendrickson Suspension
Mack   CX   Models with ALV Hendrickson Suspension
Mack   CX   Models with MAC AL405 Suspension
Western Star   4800 & 4900 Series - Constellation Class   With Hendrickson HAS-40LH Rear Suspension
Western Star   4800 & 4900 Series - Heritage Class   With Hendrickson HAS-40LH Rear Suspension
Western Star   5900 & 6900 Series - Heritage Class   With Hendrickson HAS-40LH Rear Suspension

Alternative Part Numbers

BULL DOG HD1215-0067
FLEETRITE AMS650480
FLEETRITE AMS660224
GOLD 9180195
HENDRICKSON TRUCK SUSPENSION SYSTEMS 57241-001
HENDRICKSON TRUCK SUSPENSION SYSTEMS 57241-006
HENDRICKSON TRUCK SUSPENSION SYSTEMS 57241-006L
HENDRICKSON TRUCK SUSPENSION SYSTEMS 60680-001
HENDRICKSON TRUCK SUSPENSION SYSTEMS 60680-001L
HENDRICKSON TRUCK SUSPENSION SYSTEMS 654903
MACK 14QK-413M
MACK 14QK-413M6
MACK 14QK-413M7
MACK 25622221
MACK 25625223
MACK 57241-006
MACK 57241-006L
MERITOR M83111
MONROE 65480
MONROE 66669
SACHS 316 821
VOLVO 83176197
VOLVO RC SA3111
VOLVO SA3111
WESTERN STAR 57241-1
Mack 14QK413M
Mack 14QK-413M
Mack 14QK413M6
Mack 14QK-413M6
Mack 14QK413M7
Mack 14QK-413M7
Mack 25622221
Mack 25625223
Sachs 316821
Dayton Parts 441 - 83111
Hendrickson 57241001
Hendrickson 57241-001
Mack 57241006
Hendrickson 57241006
Mack 57241-006
Hendrickson 57241-006
Mack 57241006L
Hendrickson 57241006L
Mack 57241-006L
Hendrickson 57241-006L
Western Star 572411
Western Star 57241-1
Hendrickson 60680001
Hendrickson 60680-001
Hendrickson 60680001L
Hendrickson 60680-001L
Monroe Shocks & Struts 65480
Hendrickson 654903
Monroe Shocks & Struts 66669
Volvo 83176197
Gold 9180195
PRT 925246
Fleetrite AMS650480
Fleetrite AMS660224
FCS F344354
Bulldog HD1215-0067
Meritor M83111
Volvo RC SA3111
Volvo Truck SA3111
Volvo SA3111
