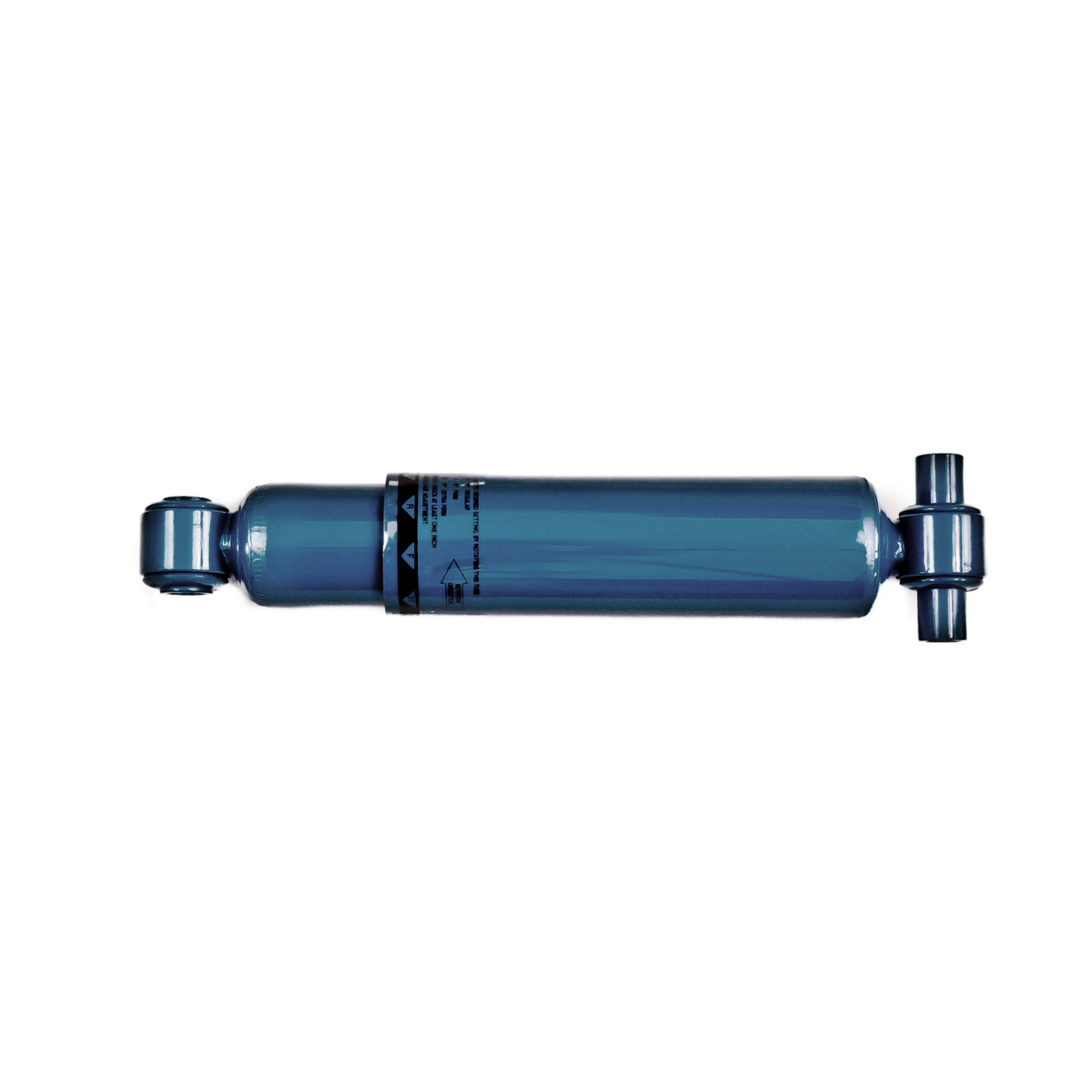

Gabriel Suspension Shock Absorber Part No: 89451
$82.19
Enhance your low friction suspension with Gabriel Suspension Shock Absorber 89451. These heavy-duty shock absorbers are ideal replacements, offering added durability and enhanced valving rates to counter initial suspension softening. Shop GasSLXTM shocks from Wofford Truck Parts today!
Specifications
GasSLXTM Shocks – Adjustable Commercial Truck and Trailer Shocks (89000 series) - The three position GasSLX™ adjustable shocks absorbers by Gabriel® allow you to choose from one of three settings – Firm, Regular and Extra Firm – to match different applications. The GasSLX shock incorporates a gas cell design, creating a physical barrier between gas and fluid, preventing aeration which can cause fade, or reduction in damping force. This gas cell technology is a full-life feature and is better suited for longer-life commercial vehicle applications. And like all Gabriel shocks and struts, GasSLX shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Advanced gas cell technology improves gas retention and provides more consistent high temperature operation. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear.
Product Line: GasSLX
Extended Length: 30.39 in. 771.91 mm.
Collapsed Length: 18.54 in. 470.92 mm.
Stroke: 11.86 in. 301.24 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 645 lb. **
Compression: 172 lb. **
** for the GasSLX Series, forces are at the "Firm" (F) Setting
Extended Length: 30.39 in. 771.91 mm.
Collapsed Length: 18.54 in. 470.92 mm.
Stroke: 11.86 in. 301.24 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 645 lb. **
Compression: 172 lb. **
** for the GasSLX Series, forces are at the "Firm" (F) Setting
Weight
9.6620
Compatibility
Kenworth:
C500: 1981–2016
T600A: 1986–2008
T660: 2008–2019
T700: 2008–2019
W900: 1986–2024
Peterbilt:
379: 1986–2007
387: 2005–2013
567: 2014–2024
579: 2013–2024
Freightliner:
Columbia: 2000–2008
Cascadia: 2008–2024
Coronado: 2001–2009
Alternative Part Numbers
- OEM:
- <br />
- FOX COMMERCIAL TRUCK SHOCKS 98031008
- GABRIEL 671794
- GABRIEL 85067
- GABRIEL 89451
- KENWORTH 665844
- KENWORTH 665844
- KENWORTH 665906
- KENWORTH 665906
- KENWORTH 665918
- KENWORTH 665918
- KENWORTH C711002
- KENWORTH C711016
- KENWORTH C711016A
- KYB 341614
- MERITOR M85067
- MERITOR M85067
- MONROE 65495
- PETERBILT C711016
- PETERBILT C711016PLUS
- SACHS 315424
