Specifications

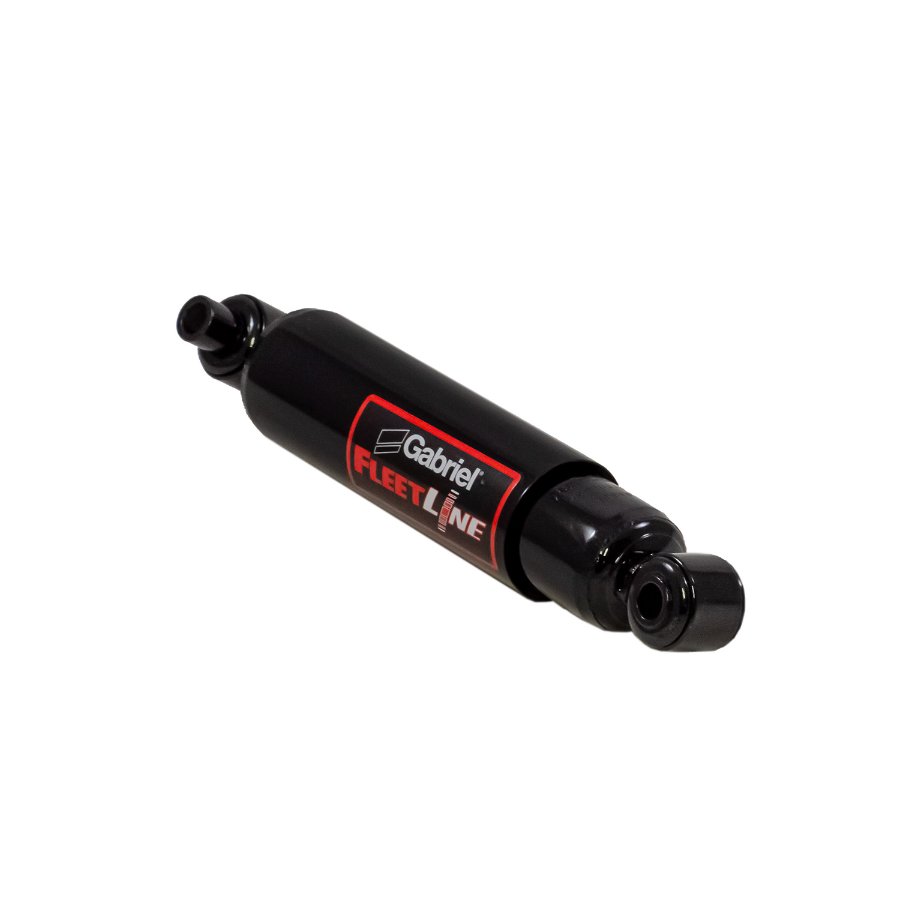

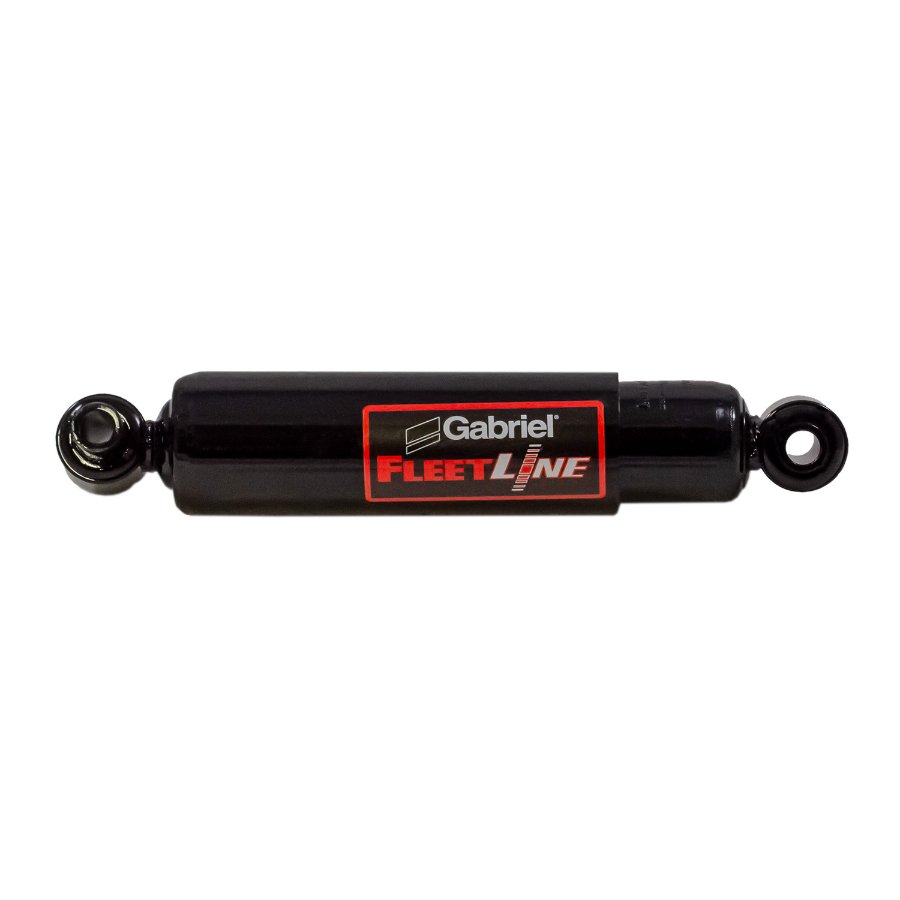

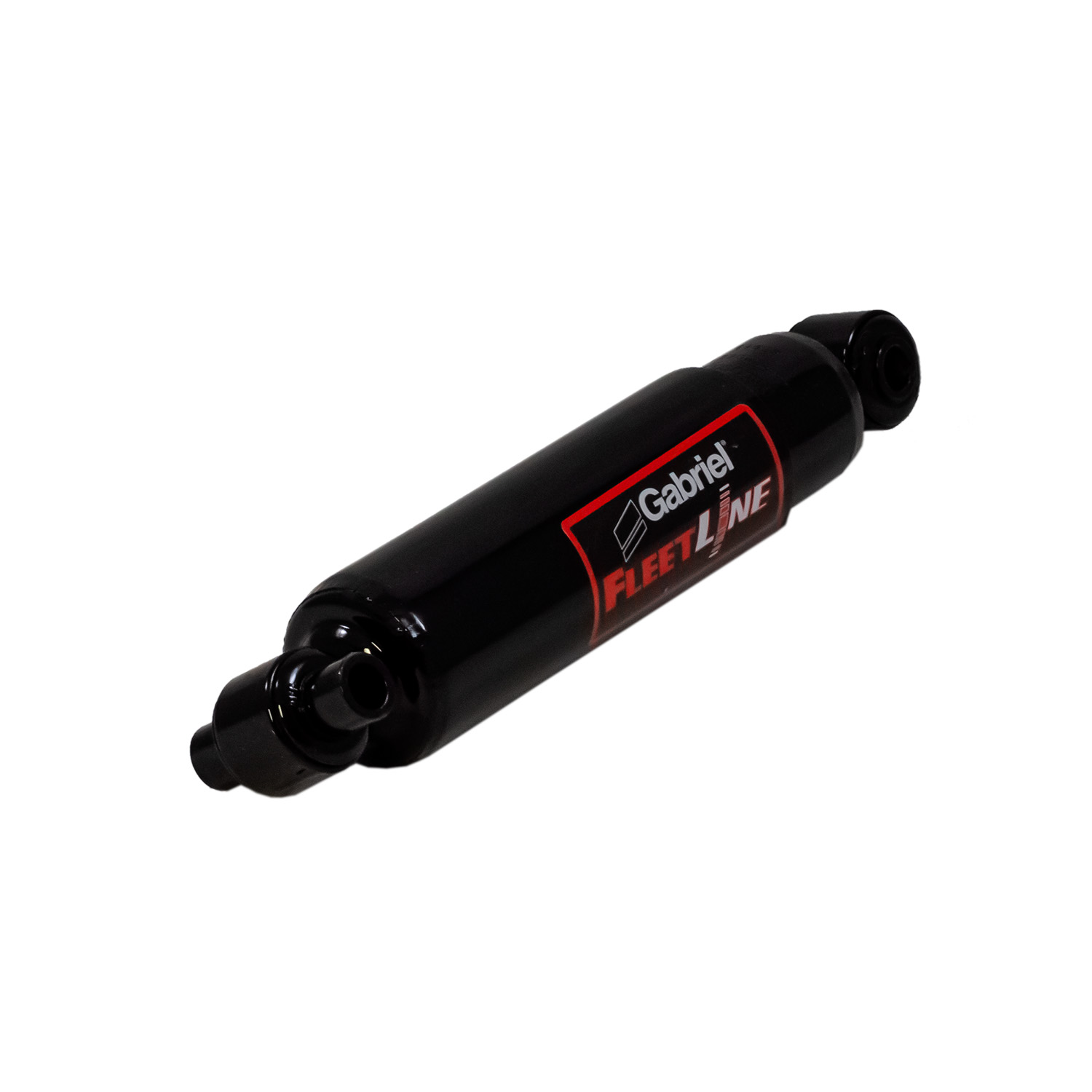

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Weight
8.2820
Product Line: FleetLine
Extended Length: 20.78 in. 527.81 mm.
Collapsed Length: 13.15 in. 334.01 mm.
Stroke: 7.63 in. 193.8 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: NO
Rebound: 1812 lb.
Compression: 351 lb.

Compatibility

Kenworth:
T680: 2013–2024
T880: 2014–2024
Peterbilt:
348: 2017–2024
567: 2012–2024
579: 2013–2024


Alternative Part Numbers

OEM: GABRIEL 85989
KENWORTH B71-6019
KENWORTH B71-6020
PETERBILT B71-6019
PETERBILT B71-6020

BULL DOG HD1215-0048
FCS F347300
KENWORTH B716019
KENWORTH B716020
KENWORTH B71-6019
KENWORTH B71-6020
PETERBILT B716019
PETERBILT B716020
PETERBILT B71-6019
PETERBILT B71-6020
PRT 925227
SACHS 317534
