Specifications

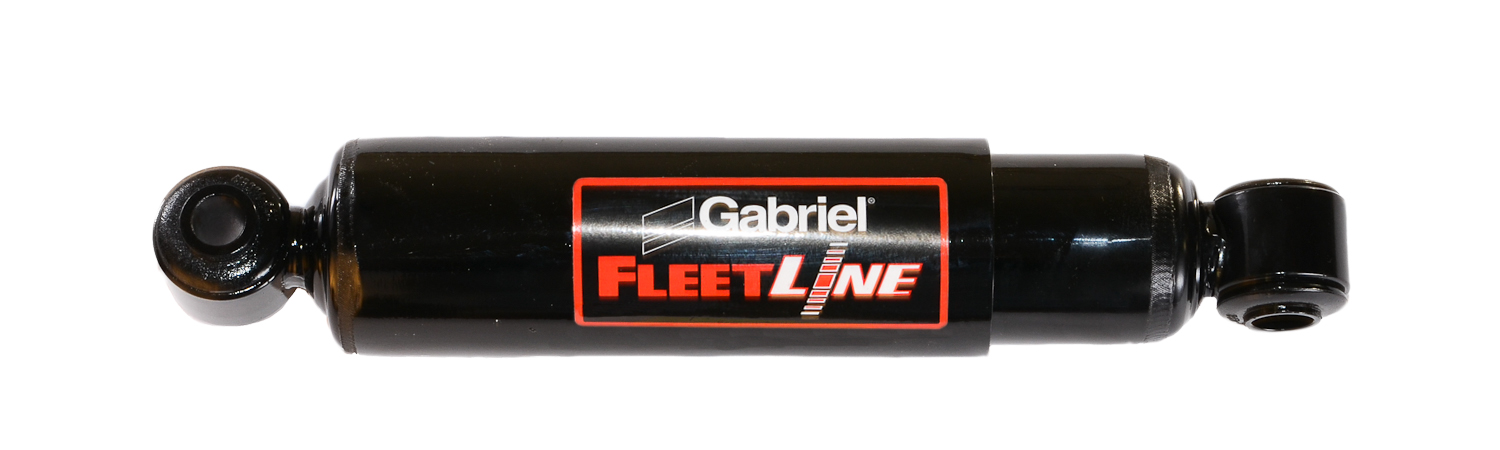

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Line: FleetLine
Extended Length: 20.43 in. 518.92 mm.
Collapsed Length: 13 in. 330.2 mm.
Stroke: 7.43 in. 188.72 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: NO
Rebound: 1812 lb.
Compression: 148 lb.
Extended Length: 20.43 in. 518.92 mm.
Collapsed Length: 13 in. 330.2 mm.
Stroke: 7.43 in. 188.72 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: NO
Rebound: 1812 lb.
Compression: 148 lb.
Weight
6.9350
Compatibility
International:
ProStar: 2010–2016 (via 3668566C1, 3674348C1)
LT625: 2018–2022
RH613: 2018–2019
TranStar: 2015–2019
General Compatibility:
Class 8 trucks with Hendrickson HN/NT or SAF Holland IAS suspensions.
Vehicles requiring shocks for 1.75" bore diameter and 12,000–13,200 lb mono leaf spring configurations.
ProStar: 2010–2016 (via 3668566C1, 3674348C1)
LT625: 2018–2022
RH613: 2018–2019
TranStar: 2015–2019
General Compatibility:
Class 8 trucks with Hendrickson HN/NT or SAF Holland IAS suspensions.
Vehicles requiring shocks for 1.75" bore diameter and 12,000–13,200 lb mono leaf spring configurations.
Alternative Part Numbers
- OEM:
- <br />
- ALLIANCE TRUCK PARTS ABP N32 G900044
- ALLIANCE TRUCK PARTS ABP N32 O900044
- BULL DOG HD1215-0080
- BULL DOG HD1215-0119
- DAYTON PARTS 441 - 85954
- FCS F347220
- FLEETRITE AMS65158
- GABRIEL 85954
- GABRIEL PROSH85954
- GOLD 8180173
- GOLD 9180138
- INTERNATIONAL (NAVISTAR) 3606857C1
- INTERNATIONAL (NAVISTAR) 3606857C2
- INTERNATIONAL (NAVISTAR) 3606859C1
- INTERNATIONAL (NAVISTAR) 3606859C2
- INTERNATIONAL (NAVISTAR) 3668566C1
- INTERNATIONAL (NAVISTAR) 3670156C1
- INTERNATIONAL (NAVISTAR) 3674348C1
- INTERNATIONAL (NAVISTAR) 3737574C1
- INTERNATIONAL (NAVISTAR) 3737575C1
- INTERNATIONAL (NAVISTAR) 3812837C1
- INTERNATIONAL 3606857C1
- MONROE 65157
- MONROE 65158
- MONROE 65163
- MONROE 65535
- PRT 925218
- SACHS 316817
- SACHS 316817
- TRP HS 85954
