Suspension Shock Absorber

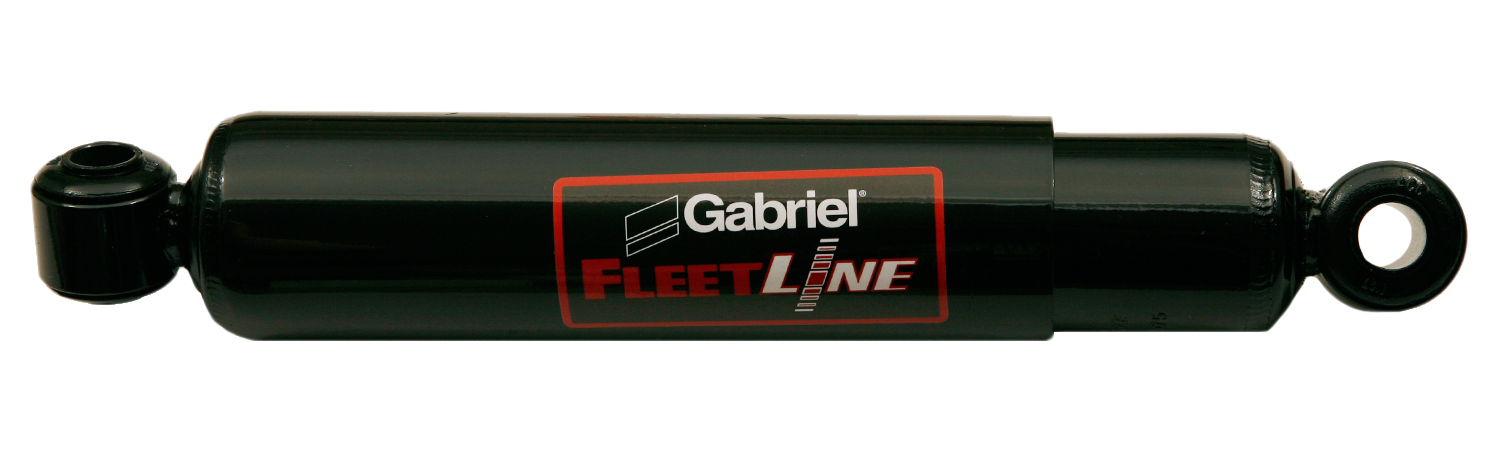

Gabriel Suspension Shock Absorber 85909 is a heavy-duty suspension shock absorber is designed for low friction suspension systems and offers exceptional durability. As part of the FleetLine shocks series, the 85909 is a direct replacement for your original equipment, delivering enhanced valving to counteract initial suspension softening. Crafted with high-quality components, including a super-finished chrome piston rod and a leak-proof piston seal, this shock absorber ensures long-lasting performance and reduced wear. With a robust 1 5/8” bore and advanced pressurized piston seal, Gabriel’s FleetLine 85909 provides reliable shock absorption, maintaining your truck’s original ride quality while handling heavy-duty demands efficiently.

Gabriel Part No: 85909

$62.04

Specifications

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Weight

7.7700

Product Line: FleetLine
Extended Length: 24.25 in. 615.95 mm.
Collapsed Length: 15.19 in. 385.83 mm.
Stroke: 9.06 in. 230.12 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 700 lb.
Compression: 255 lb.

Compatibility

Ford   A9513   All with Neway AD-246 Air Suspension
Ford   A9522   All with Neway AD-246 Air Suspension
Ford   AT9513   All with Neway AD-246 Air Suspension
Ford   AT9522   All with Neway AD-246 Air Suspension
Ford   Louisville Series - Conventional Cab   All with Neway AD-246 Air Suspension
Hendrickson Truck Suspension Systems   HAS - Series   HAS - 400 With O.E.M. Number
Hendrickson Truck Suspension Systems   HAS - Series   HAS - 402 With O.E.M. Number
Hendrickson Truck Suspension Systems   HAS - Series   HAS - 460 With O.E.M. Number
Kenworth   T440   Models with Neway AD-123 or AD-246 Models Air Suspension with Shock stamping
Kenworth   T470   Models with Neway AD-123 or AD-246 Models Air Suspension with Shock stamping
Kenworth   T800, T800B, T800B(8x4), T800SH, T800H, T800W   Models with Neway Rear Air Suspension (AD123-, AD246- ) To 2018
Kenworth   W900, W900B, W900L, W900S   Models with 46,000 lb Neway Rear Air Suspension
Mack   CH   CH600 Models with Neway AD Air Suspension Shock w/ extended length of 24.30"
Mack   CL   CL600, CL700 Models with Neway AD Air Suspension Shock w/ extended length of 24.30"
Mack   CX   Models with Neway AD Air Suspension Shock w/ extended length of 24.30"
Mc Neilus Truck & Man.       Mc Neilus part number
Newmar   Class A MotorHomes   Ventana Series MotorHomes with Neway AS140 w/ 14,000 lb Front Suspension
Peterbilt   320   Models with Neway AD-252-10 Tandem Axle
Peterbilt   520   Models with Neway AD-252-10 Tandem Axle
RoadMaster (Monaco)       Models with AD-123 Models Suspension (AD123-6,-8,-10,-8.75)
SAF Holland   Truck, Bus & Motorhome Air Suspensions   AD-123 Models Truck and Tractor Air Suspension (AD123-6,-8,-10,-8.75) Shock Mount approx. 2-1/2" above bottom of frame
SAF Holland   Truck, Bus & Motorhome Air Suspensions   AD-246 Models Truck & Tractor Air Suspension (AD246 -6, -8, -10, -8.75)
SAF Holland   Truck, Bus & Motorhome Air Suspensions   AD-252-10 Tandem Axle
SAF Holland   Truck, Bus & Motorhome Air Suspensions   Models with Neway AS140 w/ 14,000 lb Front Suspension
Spartan Motors   Highlander   With I Beam Front Suspension
Spartan Motors   K2   With I Beam Front Suspension
Spartan Motors   Motorhome   MC 2000 With I Beam Front Suspension
Spartan Motors   Mountain Master   MC 2000 With I Beam Front Suspension
Spartan Motors   Mountain Master   With I Beam Front Suspension

Alternative Part Numbers

BULL DOG HD1215-0054
FLEETRITE AMS650431
FORD 90045132
FREIGHTLINER 16-17211-000
HENDRICKSON TRUCK SUSPENSION SYSTEMS 60675-006
HENDRICKSON TRUCK SUSPENSION SYSTEMS 60675-006L
KENWORTH 90045132
MACK 14QK-414M2
MACK 25624351
MC NEILUS TRUCK & MAN. 6HD720 MTM
MERITOR M85909
MONROE 65431
MONROE 65457
NEWMAR CORP 90045455
PETERBILT 90045132
ROADMASTER (MONACO) 90045132
SACHS 311 632
SACHS 410 040
SAF HOLLAND 90045132
SAF HOLLAND 90045455
Mack 14QK414M2
Mack 14QK-414M2
Freightliner 1617211000
Freightliner 16-17211-000
Mack 25624351
Sachs 311632
Sachs 315613
Sachs 410040
Dayton Parts 441 - 85909
Hendrickson 60675006
Hendrickson 60675-006
Hendrickson 60675006L
Hendrickson 60675-006L
Monroe Shocks & Struts 65431
Monroe Shocks & Struts 65457
Oshkosh 6HD720 MTM
Roadmaster Inc 90045132
Kenworth 90045132
Peterbilt 90045132
Holland 90045132
Jaguar 90045132
Holland 90045455
Winnebago 90045455
PRT 925180
Fleetrite AMS650431
Spartan B461593
Spartan B461731
Spartan B462150
FCS F347306
Bulldog HD1215-0054
Meritor M85909
Ford 90045132
