Specifications

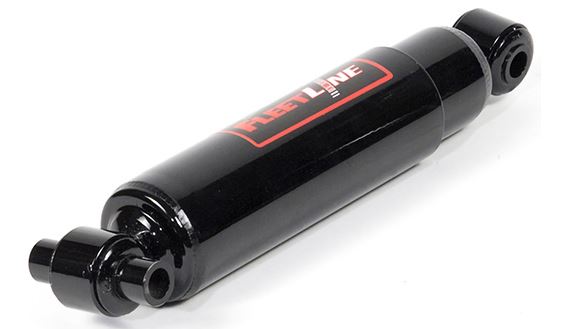

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Weight
8.5120
Product Line: FleetLine
Extended Length: 22.52 in. 572.01 mm.
Collapsed Length: 14.52 in. 368.81 mm.
Stroke: 8 in. 203.2 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 1920 lb.
Compression: 309 lb.

Compatibility

International:
RH613: Years unspecified (via 4069426C1/4069435C1 cross-reference)
General Compatibility:
Heavy-duty trucks requiring Gabriel 85642 or equivalents

Alternative Part Numbers

OEM: GABRIEL 85642
MONROE 65549
INTERNATIONAL (NAVISTAR) 4069426C1
INTERNATIONAL (NAVISTAR) 4069435C1

4069426C1
4069434C1
4069435C1
65549
65549MM
85642
08564207I15208Z900115208Z9002
MAGNUM 65549MM

Related Parts
