Specifications

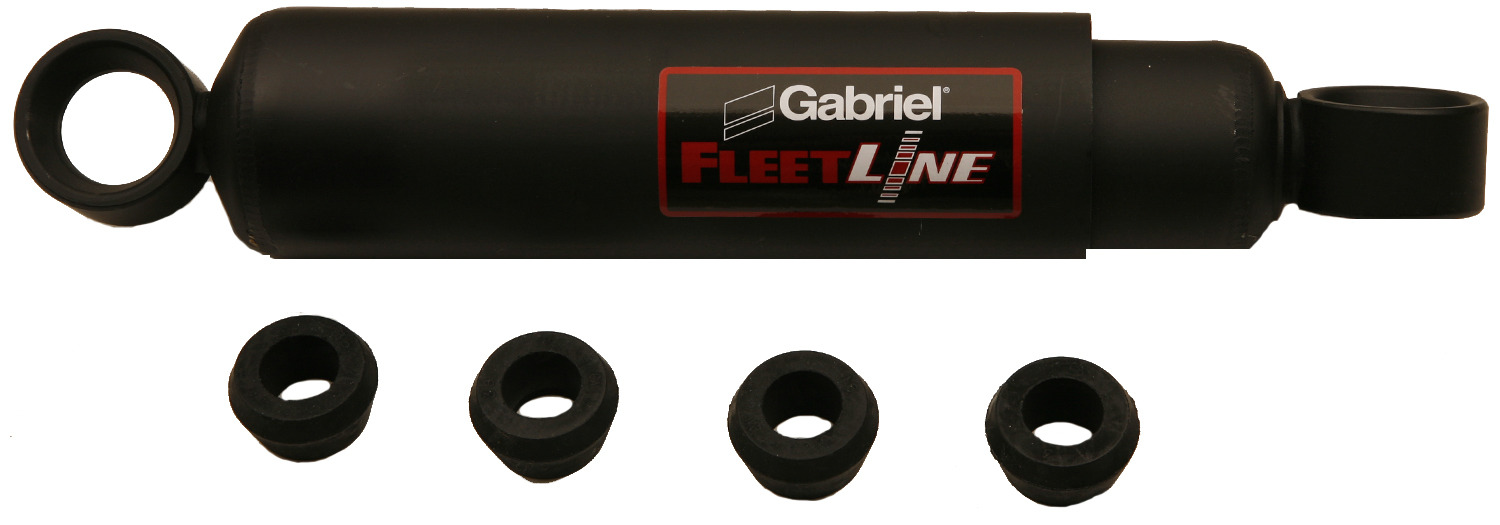

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Weight
10.3550
Product Line: FleetLine
Extended Length: 26.15 in. 664.21 mm.
Collapsed Length: 16.35 in. 415.29 mm.
Stroke: 9.8 in. 248.92 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: NO
Rebound: 970 lb.
Compression: 308 lb.

Compatibility

Freightliner:
FLB: 1994–1999, 2002
FLA086: 1989–1999
FLD132: 2001, 2003–2011
FLD120SD: 2003, 2005–2012
FLD120: 1988–2011
FLC112: 1985–1997
FLC120: 1987–1988, 1991
Volvo:
VNL/VNR Series: 2016–2024 (via 83176232 cross-reference)
Kenworth:
T680/T880: 2013–2024
W900: 2013–2024
Peterbilt:
579/589: 2013–2024
567: 2014–2024
General Compatibility:
Heavy-duty trucks, vocational vehicles, and trailers requiring Gabriel 85320 or equivalents (confirm via application guide).



Alternative Part Numbers

OEM Cross Reference Numbers GABRIEL 85320
MERITOR M85320
MONROE 65103
VOLVO 83176232
ROAD CHOICE SA5320

FREIGHTLINER 10-12030-002
FREIGHTLINER 10-12032-000
FREIGHTLINER 10-12032-001
FREIGHTLINER 10-12032-002
FREIGHTLINER 10-12032-003
FREIGHTLINER 10-12032-004
FREIGHTLINER 10-12046-000
GOLD 8190008
GOLD 9160117
KENWORTH 10-12032-002PLUS
KENWORTH 680425
KYB KG6004
MAECO 70300
MERITOR M85320
MONROE 65103
MONROE 70300
MONROE 74073
PETERBILT 10-12032-002PLUS
PETERBILT 680425
SABO 8901021
TRUCKMASTER 680425
VOLVO 3199972
VOLVO 3919934
VOLVO 3919972
VOLVO 83176232
VOLVO RC SA5320
VOLVO SA5320
BULL DOG HD1215-0029
FLEETRITE AMS650103
FLEETRITE AMS700111
DAYTON PARTS 441 - 85320
PRT 925160
ALLIANCE TRUCK PARTS ABP N32 G900004
ALLIANCE TRUCK PARTS ABP N32 O900004
FCS F347265
GASSLX 89429
TRP HS 85320
