Specifications

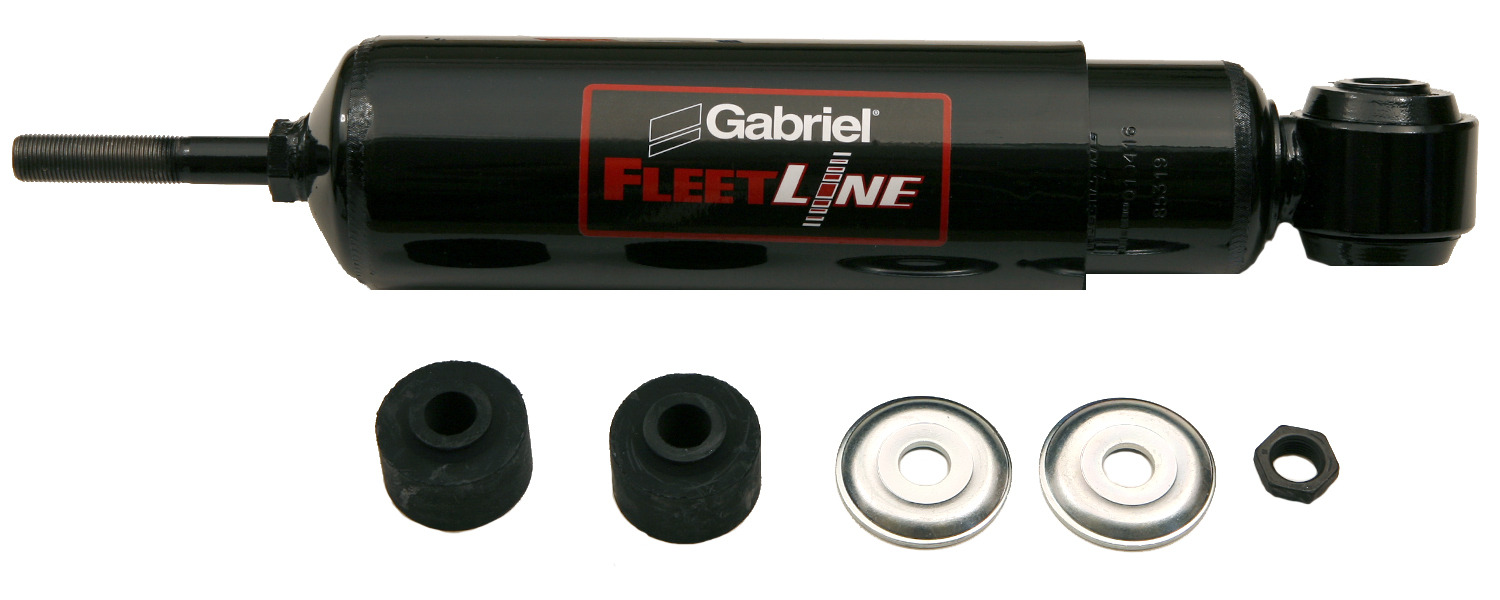

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Line: FleetLine
Extended Length: 22.22 in. 564.39 mm.
Collapsed Length: 13.93 in. 353.82 mm.
Stroke: 8.3 in. 210.82 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 988 lb.
Compression: 454 lb.
Weight
9.8170

Compatibility

Freightliner:
FLA/FLB Series: Airliner Rolling Lobe Spring Air Suspension (2005–2024)
M2: 2010–2024
Cascadia: 2018–2024
Volvo:
VNL/VNR Series: 2016–2024 (via 3199953 cross-reference)
International:
DuraStar: 2005–2020
ProStar: 2007–2018
WorkStar: 2008–2020
Kenworth:
T680/T880: 2013–2024
W900: 2013–2024
Peterbilt:
579/589: 2013–2024
567: 2014–2024
Mack:
Granite: 2003–2024
Pinnacle: 2007–2024
General Compatibility:
Heavy-duty trucks, vocational vehicles, and buses requiring Gabriel 85319 or equivalents (confirm via application guide).

Alternative Part Numbers

  • OEM:
  • <br />
  • 16-13947-000
  • 16-13947-000PLUS
  • 16-13957-000
  • 16-15817-000
  • 1613947000
  • 1613947000PLUS
  • 315395
  • 316306
  • 3199953
  • 341628
  • 3915917
  • 3919953
  • 441 - 85319
  • 441 - 85319
  • 441602
  • 485001950
  • 4889428
  • 510018
  • 5611030Z02
  • 61310434
  • 61310478
  • 650408
  • 650408MT
  • 65408
  • 65408M
  • 66432
  • 680442
  • 680473
  • 680611
  • 681-326-0400
  • 6813260400
  • 69726
  • 78015
  • 822372
  • 83176235
  • 85319
  • 8901029
  • 89428
  • A1667
  • A20002
  • A85319
  • ABP N32 G900016
  • ABP N32 O900016
  • AMS650408
  • B22715
  • BULL DOG HD1215-0064
  • BULL DOG HD1215-0064
  • BWP-NSI SH85319
  • CONDUMEX 69726
  • CONDUMEX 69726
  • DPM65408
  • E65408
  • E85319
  • E89428
  • EIE89428
  • EIEMN65408
  • EMN65408
  • EMNEMN65408
  • EU65408
  • EUE85319
  • EUE89428
  • EUEMN65408
  • EUEMNEMN65408
  • EUSA65408
  • F65408
  • FCS F346601
  • FLEETRITE AMS650408
  • FLEETRITE AMS650408
  • FLF65408
  • FLS-85319
  • FO1613947000
  • FREIGHTLINER 16-13947-000
  • FREIGHTLINER 680442
  • FREIGHTLINER 681-326-0400
  • FVMAE65408
  • GABRIEL 85319
  • GASSLX 89428
  • GBL85319
  • GSX-89428
  • INTERNATIONAL (NAVISTAR) AMS650408
  • KENWORTH 16-13947-000PLUS
  • KENWORTH 680473
  • LT65408
  • M65408
  • M85319
  • M89428
  • MACK 650408
  • MACK 650408MT
  • MAE65408
  • MBSA65408
  • MERITOR M85319
  • MERITOR M85319
  • MI65408
  • MISA65408
  • MN65408
  • MNEMN65408
  • MNEMNEMN65408
  • MNSA65408
  • MO65408
  • MONROE 65408
  • MONROE 66432
  • MR65408
  • MS65408
  • MSMAE65408
  • N65408
  • NW65408
  • PETERBILT 16-13947-000PLUS
  • PETERBILT 680473
  • PRT 925159
  • RCSA5724
  • ROAD CHOICE SA5319
  • S26652
  • S485001950
  • SA5724
  • SA65408
  • SABO 8901029
  • SACHS 316306
  • SDA471700002809
  • TRUCKMASTER 680473
  • VC89428
  • VOLVO 3199953
  • VOLVO 3199953
  • VOLVO 3915917
  • VOLVO 3919953
  • WSA0085319
  • ZYWSA0085319
