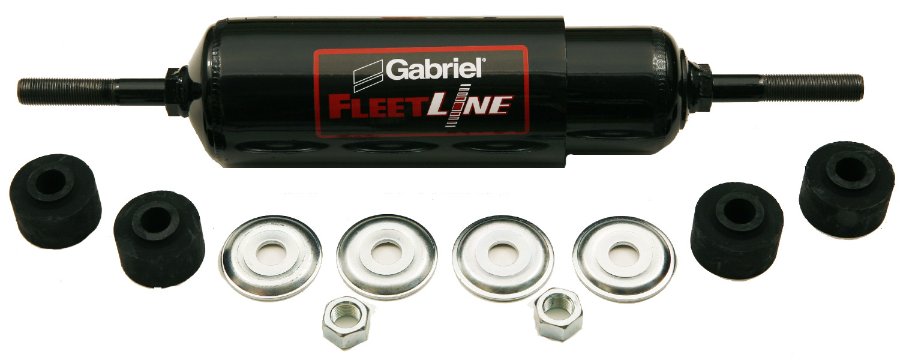

Gabriel Suspension Shock Absorber Part No: 85310
$58.58
Gabriel Suspension Shock Absorber 85310 is designed to improve your vehicle's ride quality and handling. This high-quality shock absorber effectively dampens vibrations and impacts, ensuring a smoother driving experience. As part of the trusted Fleetline shocks line, it offers exceptional durability and performance under various driving conditions. Upgrading to this reliable suspension shock absorber will enhance your vehicle’s stability and comfort, making it an essential component for any suspension system. Enjoy improved control and a more enjoyable ride with this top-tier shock absorber.
Specifications
FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Line: FleetLine
Extended Length: 18.63 in. 473.2 mm.
Collapsed Length: 11.71 in. 297.43 mm.
Stroke: 6.92 in. 175.77 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 1379 lb.
Compression: 578 lb.
Extended Length: 18.63 in. 473.2 mm.
Collapsed Length: 11.71 in. 297.43 mm.
Stroke: 6.92 in. 175.77 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 1379 lb.
Compression: 578 lb.
Weight
8.7760
Compatibility
Arvin Meritor Models with Manufacturing Number
Kenworth All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth OE PLUS Shock Stamping Number
Kenworth TruckMaster Shock Stamping Number
Kenworth C500, C500B, C500K, C540 & C550 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth K100, K100E, K125 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth K300 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T2000 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T300 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T400, T400B, T450B All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T600, T600A, T600B, T602 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T800, T800B, T800B(8x4), T800SH, T800H, T800W All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth W900, W900B, W900L, W900S All with Air Glide 100 Suspension with 8 air bags, 4 units required
Peterbilt Additional Applications OE PLUS Shock Stamping Number
Peterbilt Additional Applications TruckMaster Shock Stamping Number
Kenworth All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth OE PLUS Shock Stamping Number
Kenworth TruckMaster Shock Stamping Number
Kenworth C500, C500B, C500K, C540 & C550 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth K100, K100E, K125 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth K300 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T2000 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T300 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T400, T400B, T450B All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T600, T600A, T600B, T602 All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth T800, T800B, T800B(8x4), T800SH, T800H, T800W All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth W900, W900B, W900L, W900S All with Air Glide 100 Suspension with 8 air bags, 4 units required
Peterbilt Additional Applications OE PLUS Shock Stamping Number
Peterbilt Additional Applications TruckMaster Shock Stamping Number
Alternative Part Numbers
- OEM:
- <br />
- 1083203
- 1083204
- 1083207
- 1083209
- 1083225
- 1083310
- 141108
- 315551
- 410042
- 441 - 85310
- 441 - 853104409
- 441600
- 65404
- 66424
- 66425
- 66427
- 66429
- 66431
- 66432
- 66433
- 66434
- 66435
- 66436
- 680239
- 680476
- 680486
- 728614
- 74409
- 78077-MB
- 83176230
- 85310
- 89423
- ABP N32 G900034
- ABP N32 O900034
- AMS650404
- AMS700402
- ARVIN 728614
- BULLDOG HD1214-0609
- BULLDOG HD1215-0085
- DAYTON PARTS 441 - 85310
- DAYTON PARTS 441 - 853104409
- E85310
- EUCLID E85310
- EUCLID E85310
- FCS F343375
- FLEETRITE AMS650404
- FLEETRITE AMS700402
- GABRIEL 85310
- GABRIEL 85310
- GABRIEL PROSH85310
- KENWORTH 680239
- KENWORTH 680476
- KENWORTH 680486
- KENWORTH K374-29
- KENWORTH K374-29-2
- KENWORTH K374-29PLUS
- KENWORTH K374-29PLUS-2
- KENWORTH K374-32
- KENWORTH K374-32-2
- KENWORTH K374-7
- KENWORTH K374-9
- KENWORTH K374-C7
- KENWORTH K37429
- KENWORTH K374292
- KENWORTH K37429PLUS
- KENWORTH K37429PLUS2
- KENWORTH K37432
- KENWORTH K374322
- KENWORTH K3747
- KENWORTH K3749
- KENWORTH K374C7
- KONI 90-1577-SP1
- KONI 90-1577-SP1
- KYB 441600
- MACK 650404
- MACK 650404MT
- MERITOR M85310
- MERITOR M85310
- MONROE 65404
- MONROE 66424
- MONROE 74409
- MOTORCRAFT CAHL-409
- MOTORCRAFT CAHL-409
- OTTAWA 90013787
- PAI CORP HSA-5067
- PETERBILT 680239
- PETERBILT K374-29PLUS
- PETERBILT K37429PLUS
- PRT 925154
- RIDEWELL CORPORATION S7365B
- SABO 8901027
- SACHS 315551
- SACHS 315551
- SACHS 410042
- SACHS 410042
- TRP HS 85310
- TRUCKMASTER DESIGN 680239
- VOLVO 1091379
- VOLVO 3199949
- VOLVO 3199980
- VOLVO 3919949
- VOLVO 3919994
- VOLVO 83176230
- VOLVO RC SA5310
- VOLVO SA5310
- VOLVO SA5310
- VOLVO TRUCK SA5310
