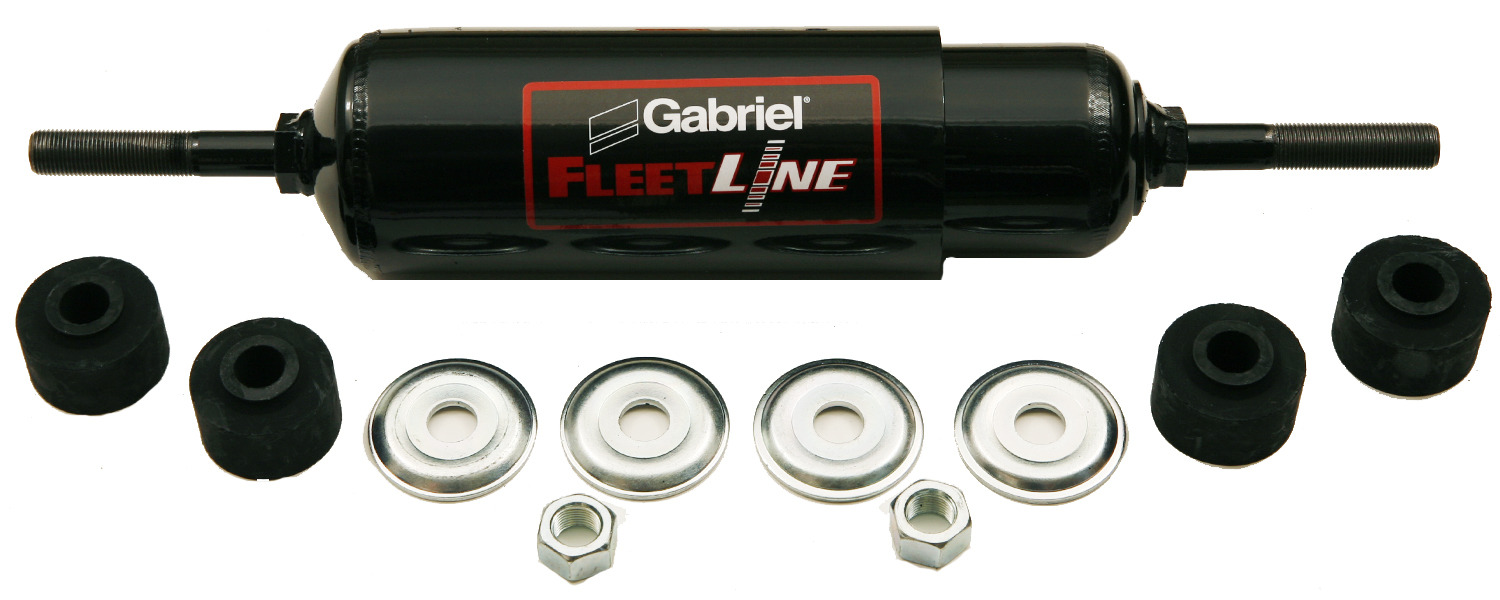

Suspension Shock Absorber

Gabriel Suspension Shock Absorber 85310 is designed to improve your vehicle's ride quality and handling. This high-quality shock absorber effectively dampens vibrations and impacts, ensuring a smoother driving experience. As part of the trusted Fleetline shocks line, it offers exceptional durability and performance under various driving conditions. Upgrading to this reliable suspension shock absorber will enhance your vehicle’s stability and comfort, making it an essential component for any suspension system. Enjoy improved control and a more enjoyable ride with this top-tier shock absorber.

Gabriel Part No: 85310

$58.58

Specifications

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Weight

8.7760

Product Line: FleetLine
Extended Length: 18.63 in. 473.2 mm.
Collapsed Length: 11.71 in. 297.43 mm.
Stroke: 6.92 in. 175.77 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 1379 lb.
Compression: 578 lb.

Compatibility

Arvin Meritor                     Models with Manufacturing Number
Kenworth                            All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth                            OE PLUS Shock Stamping Number
Kenworth                            TruckMaster Shock Stamping Number
Kenworth            C500, C500B, C500K, C540 & C550            All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth            K100, K100E, K125           All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth            K300      All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth            T2000    All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth            T300       All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth            T400, T400B, T450B         All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth            T600, T600A, T600B, T602             All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth            T800, T800B, T800B(8x4), T800SH, T800H, T800W              All with Air Glide 100 Suspension with 8 air bags, 4 units required
Kenworth            W900, W900B, W900L, W900S   All with Air Glide 100 Suspension with 8 air bags, 4 units required
Peterbilt              Additional Applications OE PLUS Shock Stamping Number
Peterbilt              Additional Applications TruckMaster Shock Stamping Number

Alternative Part Numbers

OEM: GABRIEL 85310
EUCLID E85310
MOTORCRAFT CAHL-409
KONI 90-1577-SP1
SACHS 315551
SACHS 410042
MERITOR M85310
VOLVO SA5310

1083203
1083204
1083207
1083209
1083225
1083310
141108
315551
410042
441 - 85310
441 - 853104409
441600
65404
66424
66425
66427
66429
66431
66432
66433
66434
66435
66436
680239
680476
680486
728614
74409
78077-MB
83176230
85310
89423
ABP N32 G900034
ABP N32 O900034
AMS650404
AMS700402
ARVIN 728614
BULLDOG HD1214-0609
BULLDOG HD1215-0085
DAYTON PARTS 441 - 85310
DAYTON PARTS 441 - 853104409
E85310
EUCLID E85310
FCS F343375
FLEETRITE AMS650404
FLEETRITE AMS700402
GABRIEL 85310
GABRIEL PROSH85310
KENWORTH 680239
KENWORTH 680476
KENWORTH 680486
KENWORTH K374-29
KENWORTH K374-29-2
KENWORTH K374-29PLUS
KENWORTH K374-29PLUS-2
KENWORTH K374-32
KENWORTH K374-32-2
KENWORTH K374-7
KENWORTH K374-9
KENWORTH K374-C7
KENWORTH K37429
KENWORTH K374292
KENWORTH K37429PLUS
KENWORTH K37429PLUS2
KENWORTH K37432
KENWORTH K374322
KENWORTH K3747
KENWORTH K3749
KENWORTH K374C7
KONI 90-1577-SP1
KYB 441600
MACK 650404
MACK 650404MT
MERITOR M85310
MONROE 65404
MONROE 66424
MONROE 74409
MOTORCRAFT CAHL-409
OTTAWA 90013787
PAI CORP HSA-5067
PETERBILT 680239
PETERBILT K374-29PLUS
PETERBILT K37429PLUS
PRT 925154
RIDEWELL CORPORATION S7365B
SABO 8901027
SACHS 315551
SACHS 410042
TRP HS 85310
TRUCKMASTER DESIGN 680239
VOLVO 1091379
VOLVO 3199949
VOLVO 3199980
VOLVO 3919949
VOLVO 3919994
VOLVO 83176230
VOLVO RC SA5310
VOLVO SA5310
VOLVO TRUCK SA5310
