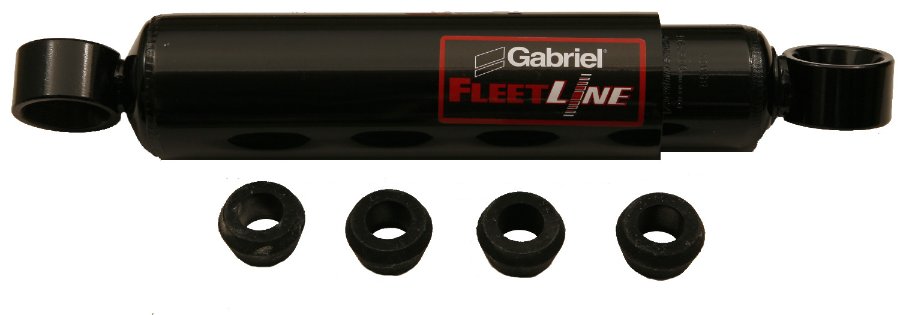

Suspension Shock Absorber

Enhance your low friction suspension with Gabriel Suspension Shock Absorber 85305. These heavy-duty shock absorbers are ideal replacements, offering added durability and enhanced valving rates to counter initial suspension softening. Shop Fleetline shocks from Wofford Truck Parts today!

Gabriel Part No: 85305

$67.49

Specifications

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Weight

10.6810

Product Line: FleetLine
Extended Length: 27.25 in. 692.15 mm.
Collapsed Length: 16.7 in. 424.18 mm.
Stroke: 10.55 in. 267.97 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: NO
Rebound: 1120 lb.
Compression: 225 lb.

Compatibility

Mack:
Models with 14QK-142/2110/2115: 1995–2010 (specific applications vary)
25632147: HD series (unspecified years)
Volvo/Western Star:
35901-3406: VNL/VHD series (2005–2015)
Chevrolet/GMC:
C/K Series: Models requiring 5316792, 5352858, or 5394467 (1980–2000)
Ford:
F-Series Super Duty: F6HT-18080-JA/F6HZ-18125-JA applications (1999–2016)
Flxible:
Transit Buses: 6-367-7 models (1985–2005)
Eagle Coach:
101364: Motorcoach models (1990–2010)
Brockway:
School Buses: 14QK-281P10 (1995–2010)

Alternative Part Numbers

OEM: AC DELCO 507-18
BATCO 1085305
BROCKWAY SCHOOL BUS 14QK-281P10
CHEVROLET TRUCK 5316792
CHEVROLET TRUCK 5352858
EAGLE MOTOR COACH 101364
EUCLID E85305
FLXIBLE BUS 6-367-7
GMC TRUCK 5352858
HENDRICKSON TRUCK SUSPENSION SYSTEMS 57324-11
MACK 14QK-142
MACK 14QK-2110
MACK 14QK-2115
MACK 25632147
MERITOR M85305
VOLVO 1091376
VOLVO 35901-3406
WESTERN STAR 35901-3406

AC DELCO 507-18
BATCO 1085305
BROCKWAY SCHOOL BUS 14QK-281P10
BUILT RITE 70041
BUS & TRUCK CO. 70041
CHEVROLET TRUCK 5316792
CHEVROLET TRUCK 5316793
CHEVROLET TRUCK 5352858
CHEVROLET TRUCK 5394448
CHEVROLET TRUCK 5394467
CHEVROLET TRUCK 5516459
CHEVROLET TRUCK 5522818
CHEVROLET TRUCK 5527606
CHEVROLET TRUCK 5554995
CONTINENTAL TRAILWAYS-EAGLE INT'L 5394467
CONTINENTAL TRAILWAYS-EAGLE INT'L 70041
EAGLE MOTOR COACH 101364
EAGLE MOTOR COACH 5394467
EAGLE MOTOR COACH 70041
EUCLID E85305
FLXIBLE BUS 6-367-7
FORD F6HT-18080-JA
FORD F6HZ-18125-JA
FRUEHAUF 5352858
FRUEHAUF UCA-5431
GMC TRUCK 5316792
GMC TRUCK 5316793
GMC TRUCK 5352858
GMC TRUCK 5394448
GMC TRUCK 5394467
GMC TRUCK 5516459
GMC TRUCK 5522818
GMC TRUCK 5527606
GMC TRUCK 5554995
HENDRICKSON TRUCK SUSPENSION SYSTEMS 57324-11
HENDRICKSON TRUCK SUSPENSION SYSTEMS 680600
MACK 14QK-142
MACK 14QK-2110
MACK 14QK-2110P1
MACK 14QK-2115
MACK 25632147
MAECO 70041
MAECO 70402
MC NEILUS TRUCK & MAN. 1323106 MTM
MERITOR M85305
MOHAWK 6-367-7
MONROE 70402
MOTORCRAFT AT-554
PAI CORP HSA-5067
RIDEWELL CORPORATION S7365B
VOLVO 1091376
VOLVO 35901-3406
WESTERN STAR 35901-3406
WESTERN UNIT 101364
