Specifications

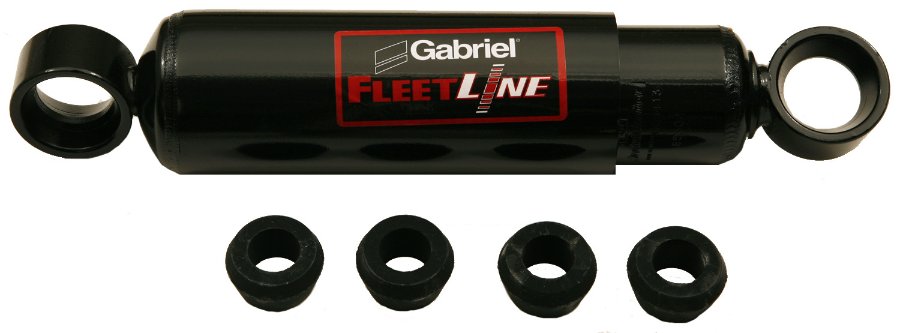

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Weight
9.4730
Product Line: FleetLine
Extended Length: 22.75 in. 577.85 mm.
Collapsed Length: 14.61 in. 371.09 mm.
Stroke: 8.14 in. 206.76 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: NO
Rebound: 836 lb.
Compression: 253 lb.

Compatibility

Peterbilt:
353: 1981–1988
362: 1981–2006
359: 1981–1987
349: 1984–1987
Ford:
CF8000: 1987–1997
CF7000: 1986–1997
Chevrolet/GMC:
C/K Series: Models requiring 5544581 or 5544112 (specific years unspecified)
Blue Bird:
All American FE: 1989–2016


Alternative Part Numbers

OEM: GABRIEL 85302
CHEVROLET TRUCK 5544581
GM 5544581
PETERBILT 02-00495
PETERBILT 728606

02-00495
3166657
4975501
5544060
5544112
5544581
5552454
5554184
5554814
5565748
728606
85302
89420
CHEVROLET TRUCK 5544112
CHEVROLET TRUCK 5544581
GM 5544060
GM 5544581
GM 5552454
GM 5554184
GM 5554814
PETERBILT 02-00495
PETERBILT 728606
