Specifications

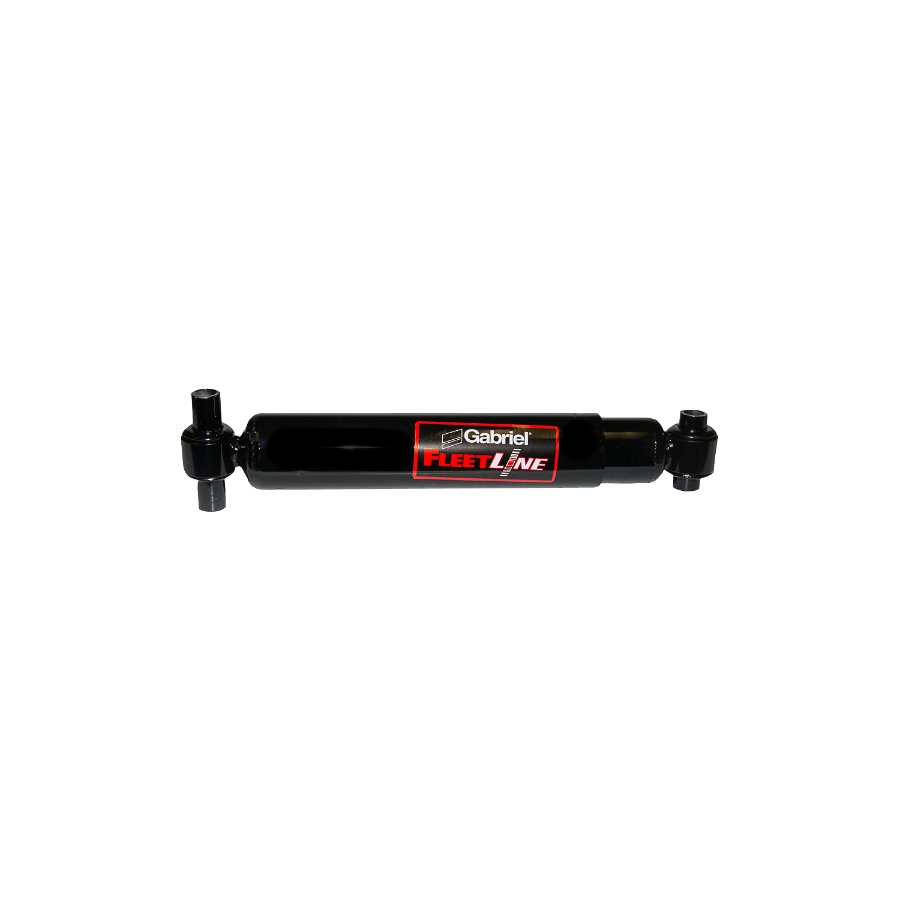

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Weight
7.8210
Product Line: FleetLine
Extended Length: 25.31 in. 642.87 mm.
Collapsed Length: 15.52 in. 394.21 mm.
Stroke: 9.79 in. 248.67 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 616 lb.
Compression: 178 lb.

Compatibility

Mack:
Anthem: 2018–2020
CHU: 2011–2019
CXU: 2011–2019
Volvo:
VNL 300: 2016–2020
VNL 430: 2015–2016
VNL 630: 2015–2016
VNL 670: 2015–2016
VNL 740: 2017–2020
VNL 760: 2017–2020
VNL 860: 2017–2020
VNR: 2018–2019

Alternative Part Numbers

OEM: BULL DOG HD1215-0030
GOLD 8160848
MACK 21462382
MACK 21462384
MACK 22202559
MACK 22202560
MACK 471700006039
POWERHOUSE COACH INC. 21462380
RENEGADE RV 21462380
SACHS 315421
SACHS 315435
VOLVO 21462378
VOLVO 21462380
VOLVO 471700006038
VOLVO TRUCK SA5088

ALLIANCE TRUCK PARTS ABP N32 G900078
ALLIANCE TRUCK PARTS ABP N32 O900078
BULL DOG HD1215-0030
FCS F347197
GOLD 8160848
MACK 21462382
MACK 21462384
MACK 22202559
MACK 22202560
MACK 471700006039
MACK 471700009646
MACK 471700009647
POWERHOUSE COACH INC. 21462380
POWERHOUSE COACH INC. 471700006040
PRT 925133
RENEGADE RV 21462380
RENEGADE RV 471700006040
SACHS 315421
SACHS 315435
SACHS 471700006039
SACHS 471700006040
SACHS 471700009646
SACHS 471700009647
TRP HS 85088
VOLVO 21462378
VOLVO 21462380
VOLVO 471700006038
VOLVO 471700006040
VOLVO TRUCK SA5088
