Specifications

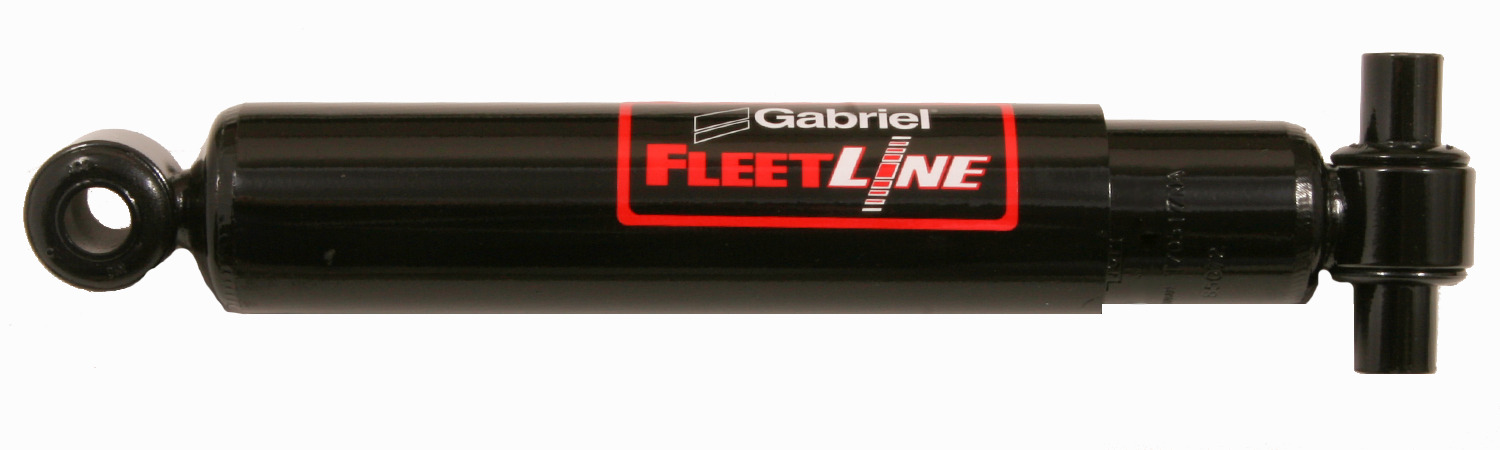

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Line: FleetLine
Extended Length: 24.17 in. 613.92 mm.
Collapsed Length: 14.81 in. 376.17 mm.
Stroke: 9.36 in. 237.74 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 1387 lb.
Compression: 305 lb.
Weight
7.3670

Compatibility

Autocar:
XSPOTTER/XPERTS: Models using 60657-003/003L (2008–2018)
International (Navistar):
Heavy-Duty Models: Applications requiring 3626571C1 or H60657-003
Mack:
CHN/CX Series: 1998–2016 (with 20782199 or 60657-007)
Kenworth/Western Star:
T800/T880: 2001–2024 (compatible with 60657-003/003L)
Volvo:
VNL/VHD Series: 2002–2016 (models using 20782199 or 60657-007)
Hendrickson Suspension Systems:
HN-462/EX-262: Trucks/trailers with 60657-003, 665816, or 671105


Alternative Part Numbers

  • OEM:
  • <br />
  • 1333575 MTM
  • 14QK-429M2
  • 20782199
  • 23567823
  • 316823
  • 3626571C1
  • 3626571C2
  • 441 - 85072
  • 60657-003
  • 60657-003L
  • 60657-004
  • 60657-007
  • 60657003
  • 60657003L
  • 60657004
  • 60657007
  • 65504
  • 665816
  • 665892
  • 671105
  • 85072
  • 9180190
  • 925127
  • 98583-032
  • 98583032
  • ABP N32 G900061
  • ABP N32 O900061
  • ALLIANCE TRUCK PARTS ABP N32 G900061
  • ALLIANCE TRUCK PARTS ABP N32 O900061
  • AUTOCAR 60657-003
  • AUTOCAR 60657-003
  • AUTOCAR 60657-003L
  • AUTOCAR 60657-003L
  • BULL DOG HD1215-0069
  • BULL DOG HD1215-0069
  • CATERPILLAR 60657-003
  • CATERPILLAR 60657-003L
  • DAYTON PARTS 441 - 85072
  • FCS F347200
  • GOLD 9180190
  • HENDRICKSON 60657-003
  • HENDRICKSON 60657-003L
  • HENDRICKSON 60657-004
  • HENDRICKSON 60657-007
  • HENDRICKSON 665816
  • HENDRICKSON 665892
  • HENDRICKSON 671105
  • HENDRICKSON 98583-032
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 60657-003
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 60657-003
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 60657-003L
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 60657-007
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 665816
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 665892
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 671105
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 98583-032
  • INTERNATIONAL (NAVISTAR) 3626571C1
  • INTERNATIONAL (NAVISTAR) 3626571C1
  • INTERNATIONAL (NAVISTAR) 60657-003
  • INTERNATIONAL (NAVISTAR) 60657-003L
  • INTERNATIONAL (NAVISTAR) H60657-003
  • INTERNATIONAL (NAVISTAR) H60657003
  • INTERNATIONAL PARTS SERVICE 3626571C1
  • INTERNATIONAL PARTS SERVICE 3626571C2
  • INTERNATIONAL PARTS SERVICE 60657-003
  • INTERNATIONAL PARTS SERVICE 60657-003L
  • INTERNATIONAL PARTS SERVICE H60657-003
  • KENWORTH 60657-003
  • KENWORTH 60657-003L
  • MACK 20782199
  • MACK 20782199
  • MACK 60657-007
  • MC NEILUS TRUCK & MAN. 1333575 MTM
  • MERITOR M85072
  • MERITOR M85072
  • MONROE 65504
  • MONROE 65504
  • OSHKOSH 1333575 MTM
  • PRT 925127
  • SACHS 316823
  • SACHS 316823
  • VOLVO 20782199
  • VOLVO 20782199
  • VOLVO 60657-007
  • WESTERN STAR 60657-003
  • WESTERN STAR 60657-003L
