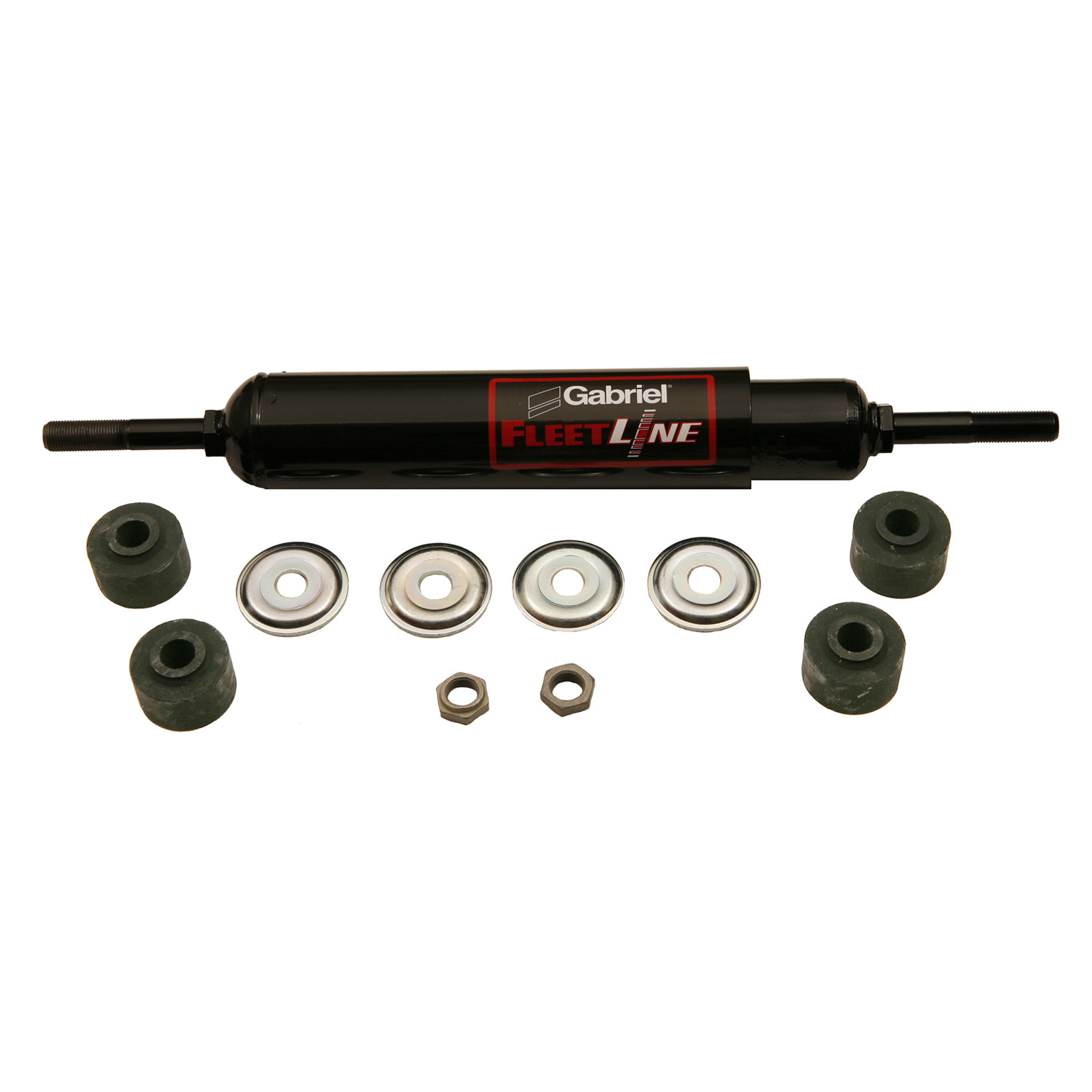

Suspension Shock Absorber

Enhance your low friction suspension with Gabriel Suspension Shock Absorber 85069. These heavy-duty shock absorbers are ideal replacements, offering added durability and enhanced valving rates to counter initial suspension softening. Shop Fleetline shocks from Wofford Truck Parts today!

Gabriel Part No: 85069

$64.94

Specifications

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Weight

8.3720

Product Line: FleetLine
Extended Length: 26.31 in. 668.27 mm.
Collapsed Length: 15.97 in. 405.64 mm.
Stroke: 10.33 in. 262.38 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 762 lb.
Compression: 255 lb.

Compatibility

Kenworth:
T270/T370: 2008–2022
T440/T470: 2012–2021
T680: 2013–2024
T880: 2011–2024
W900: 2001–2021
Peterbilt:
567: 2014–2024
579: 2013–2024
587: 2011–2018
Volvo:
VNL Series: 2002–2016 (models using SA5069 or 83176227)
VHD: 2005–2018
Meritor M85069: Heavy-duty trucks/trailers with rear axle applications

Alternative Part Numbers

OEM: ARVIN MERITOR 671091
BULL DOG HD1215-0031
BULL DOG HD1215-0076
FLEETRITE AMS650468
GOLD 8160120
GOLD 9180188
KENWORTH 03-08781
MERITOR M85069
MONROE 65468
MONROE 65528
VOLVO 83176227
VOLVO SA5069

0308781
03087812
03-08781
03-08781-2
200376
200495
277A13
308781
441 - 850695468
441 - 850695528
508781
555019
65468
65528
66434
665826
665844
671091
8160120
83176227
850695468
850695528
9180188
925124
ABP N32 G900038
ABP N32 O900038
ALLIANCE TRUCK PARTS ABP N32 G900038
ALLIANCE TRUCK PARTS ABP N32 O900038
ARVIN MERITOR 671091
BULL DOG HD1215-0031
BULL DOG HD1215-0076
C711011
C711011PLUS
C711011PLUS2
C711011SPL
C711017
C716005
C71-1011
C71-1011PLUS
C71-1011PLUS-2
C71-1011SPL
C71-1017
C71-6005
DAYTON PARTS 441 - 850695468
DAYTON PARTS 441 - 850695528
FCS F343368
FLEETRITE AMS650468
GABRIEL PROSH85069
GASSLX 89455
GOLD 8160120
GOLD 9180188
KENWORTH 03-08781
KENWORTH 665844
KENWORTH C711011
KENWORTH C711011PLUS
KENWORTH C711011SPL
KENWORTH C711017
KENWORTH C716005
KENWORTH C71-1011
KENWORTH C71-1011PLUS
KENWORTH C71-1011SPL
KENWORTH C71-1017
KENWORTH C71-6005
MERITOR M85069
MONROE 555019
MONROE 65468
MONROE 65528
MONROE 66434
PETERBILT 03-08781
PETERBILT 665826
PETERBILT 665844
PETERBILT 671091
PETERBILT C711011
PETERBILT C711011PLUS
PETERBILT C711011SPL
PETERBILT C711017
PETERBILT C716005
PETERBILT C71-1011
PETERBILT C71-1011PLUS
PETERBILT C71-1011SPL
PETERBILT C71-1017
PETERBILT C71-6005
PRT 925124
SACHS 316824
TRP HS 85069
TRUCKMASTER 665844
VOLVO 83176227
VOLVO SA5069
