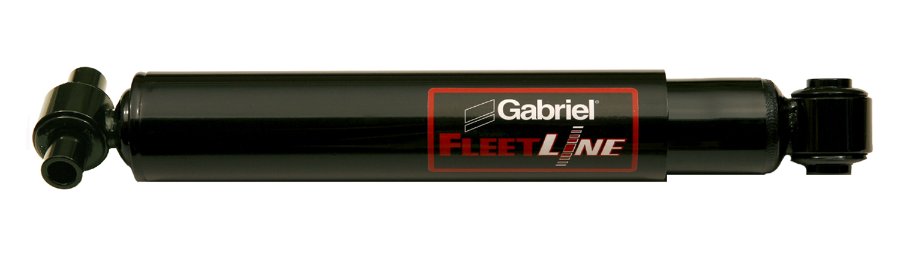

Gabriel Suspension Shock Absorber Part No: 85067
$53.99
Gabriel Suspension Shock Absorber 85067 is designed to replace heavy-duty commercial truck and trailer shocks. This shock absorber is made with durable components including a corrosion-resistant super-finished chrome piston rod and a leak-proof piston seal. Its unique fleetline shocks design delivers consistent performance and extends the lifespan of the product. Additional features such as a hydraulic rebound stop and cold-formed mounts contribute to superior durability and reliability, reducing wear on suspension components.
Specifications
FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Line: FleetLine
Extended Length: 30.54 in. 775.72 mm.
Collapsed Length: 18.15 in. 461.01 mm.
Stroke: 12.39 in. 314.71 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 676 lb.
Compression: 170 lb.
Extended Length: 30.54 in. 775.72 mm.
Collapsed Length: 18.15 in. 461.01 mm.
Stroke: 12.39 in. 314.71 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 676 lb.
Compression: 170 lb.
Weight
8.8070
Compatibility
Kenworth:
C500: 1981–2016
T2000: 1997–2011
T440: 2012–2021
T470: 2012–2021
T600A: 2001–2008
T660: 2007–2020
T680: 2011–2024
T700: 2011–2016
T800: 2001–2023
T880: 2011–2024
W900: 2001–2021
W990: 2019–2024
Peterbilt:
365: 2008–2020
367: 2008–2020
378: 1999–2007
382: 2011–2017
384: 2008–2016
386: 2006–2016
387: 2000–2011
388: 2008–2015
389: 2008–2024
567: 2014–2024
579: 2013–2024
587: 2011–2018
C500: 1981–2016
T2000: 1997–2011
T440: 2012–2021
T470: 2012–2021
T600A: 2001–2008
T660: 2007–2020
T680: 2011–2024
T700: 2011–2016
T800: 2001–2023
T880: 2011–2024
W900: 2001–2021
W990: 2019–2024
Peterbilt:
365: 2008–2020
367: 2008–2020
378: 1999–2007
382: 2011–2017
384: 2008–2016
386: 2006–2016
387: 2000–2011
388: 2008–2015
389: 2008–2024
567: 2014–2024
579: 2013–2024
587: 2011–2018
Alternative Part Numbers
- OEM Cross Reference Numbers
- 315424
- 441 - 85067
- 65495
- 65495M
- 66436
- 665752
- 665828
- 665876
- 671794
- 83176226
- 85067
- 89451
- 9160121
- 9180145
- 925123
- ABP N32 G900020
- ABP N32 O900020
- ALLIANCE TRUCK PARTS ABP N32 G900020
- ALLIANCE TRUCK PARTS ABP N32 O900020
- Alphabetical Cross Reference List
- BULL DOG HD1215-0034
- BULL DOG HD1215-0034
- C71-1002
- C71-1002-2
- C71-1002PLUS
- C71-1002PLUS-2
- C71-1016
- C71-6000
- C71-6000-2
- C71-6015
- C711002
- C7110022
- C711002PLUS
- C711002PLUS2
- C711016
- C7160002
- C716015
- DAYTON PARTS 441 - 85067
- FCS F347215
- GASSLX 89451
- GOLD 9160121
- GOLD 9160121
- GOLD 9180145
- GOLD 9180145
- KENWORTH 665828
- KENWORTH 671794
- KENWORTH C71-1002
- KENWORTH C71-1002
- KENWORTH C71-1002PLUS
- KENWORTH C71-1016
- KENWORTH C71-1016
- KENWORTH C71-6015
- KENWORTH C711002
- KENWORTH C711002PLUS
- KENWORTH C711016
- KENWORTH C7160002
- KENWORTH C716015
- MERITOR M85067
- MERITOR M85067
- MONROE 65495
- MONROE 65495
- MONROE 66436
- MONROE 66436
- PETERBILT 665752
- PETERBILT 671794
- PETERBILT C71-1002
- PETERBILT C71-1002PLUS
- PETERBILT C71-1016
- PETERBILT C71-6000
- PETERBILT C71-6015
- PETERBILT C711002
- PETERBILT C711002PLUS
- PETERBILT C711016
- PETERBILT C7160002
- PETERBILT C716015
- PRT 925123
- SACHS 315424
- SACHS 315424
- TRP HS 85067
- TRUCKMASTER 671794
- VOLVO 83176226
- VOLVO 83176226
- VOLVO RC SA5067
- VOLVO SA5067
- VOLVO SA5067
