Specifications

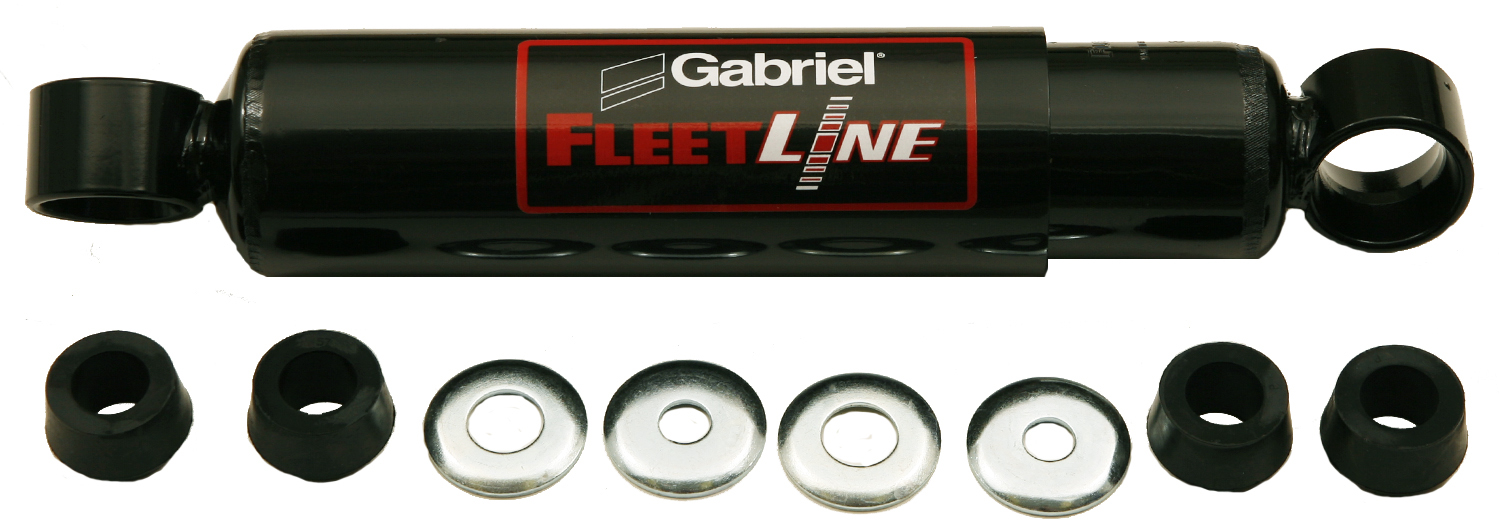

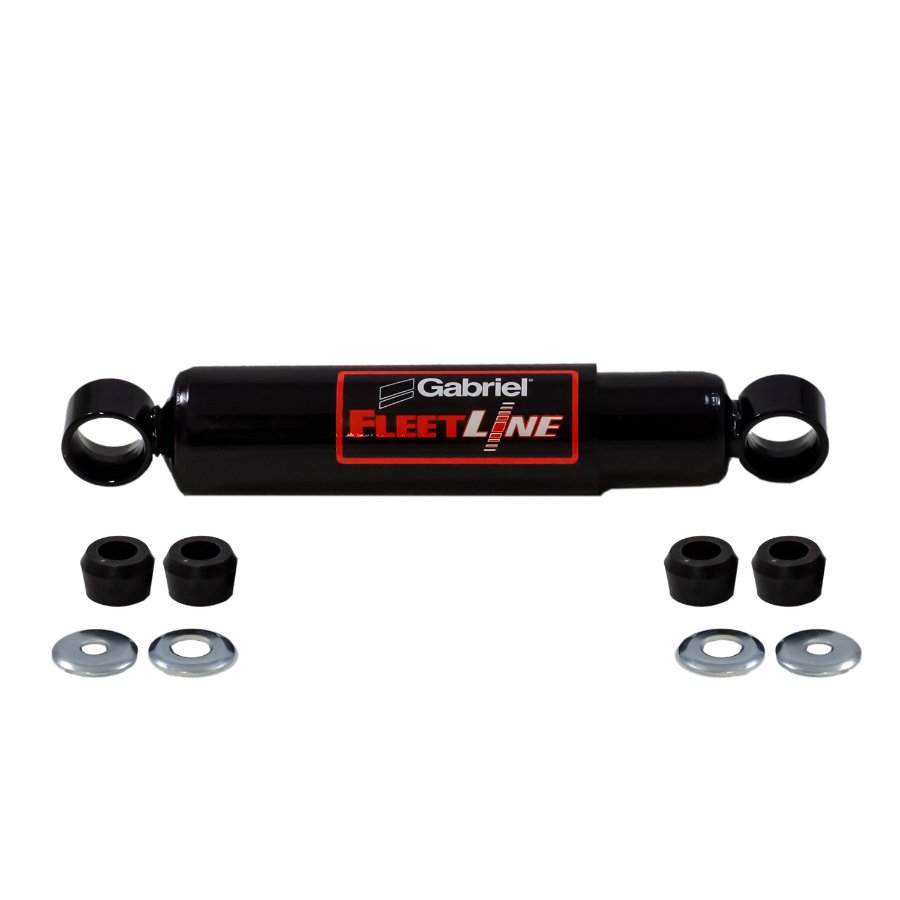

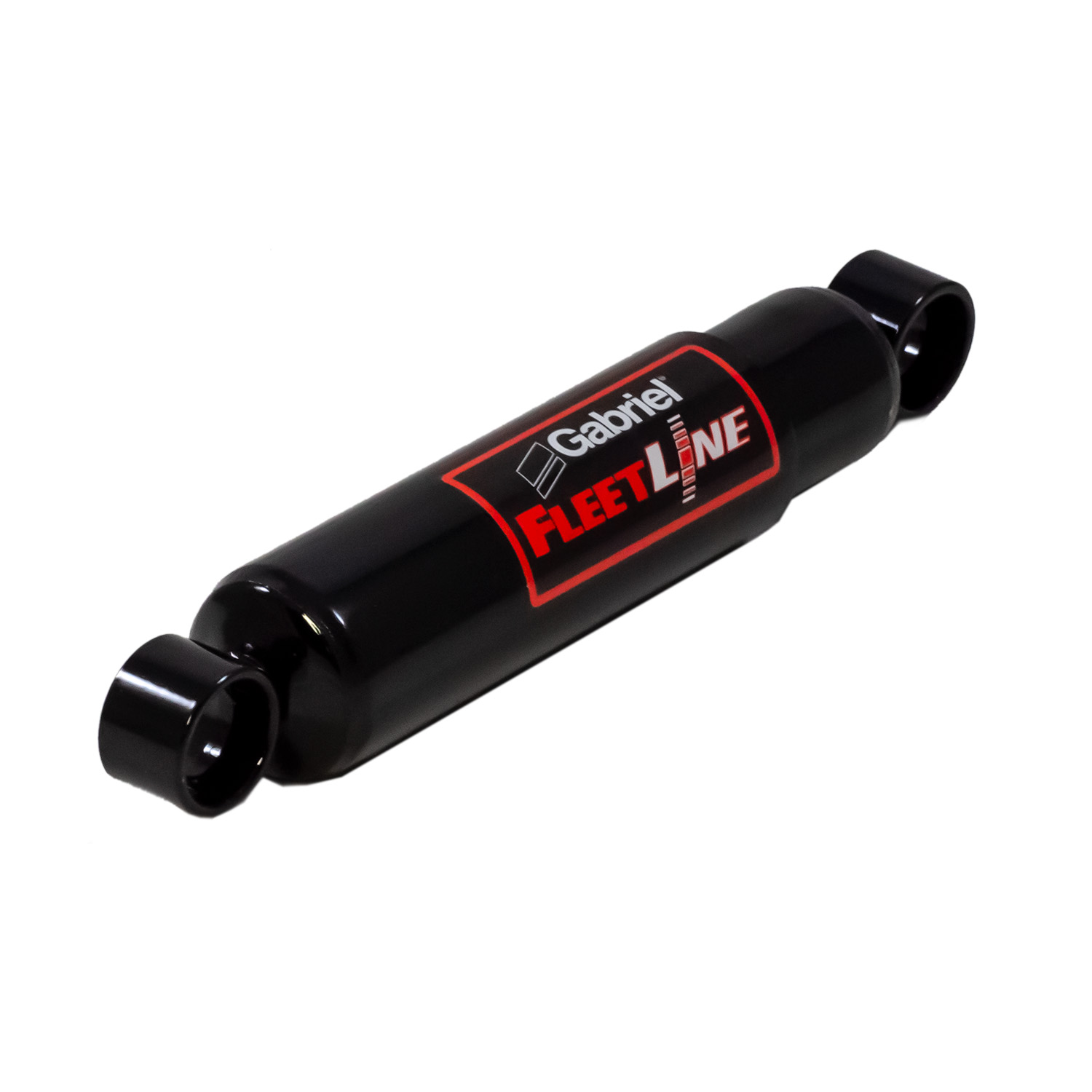

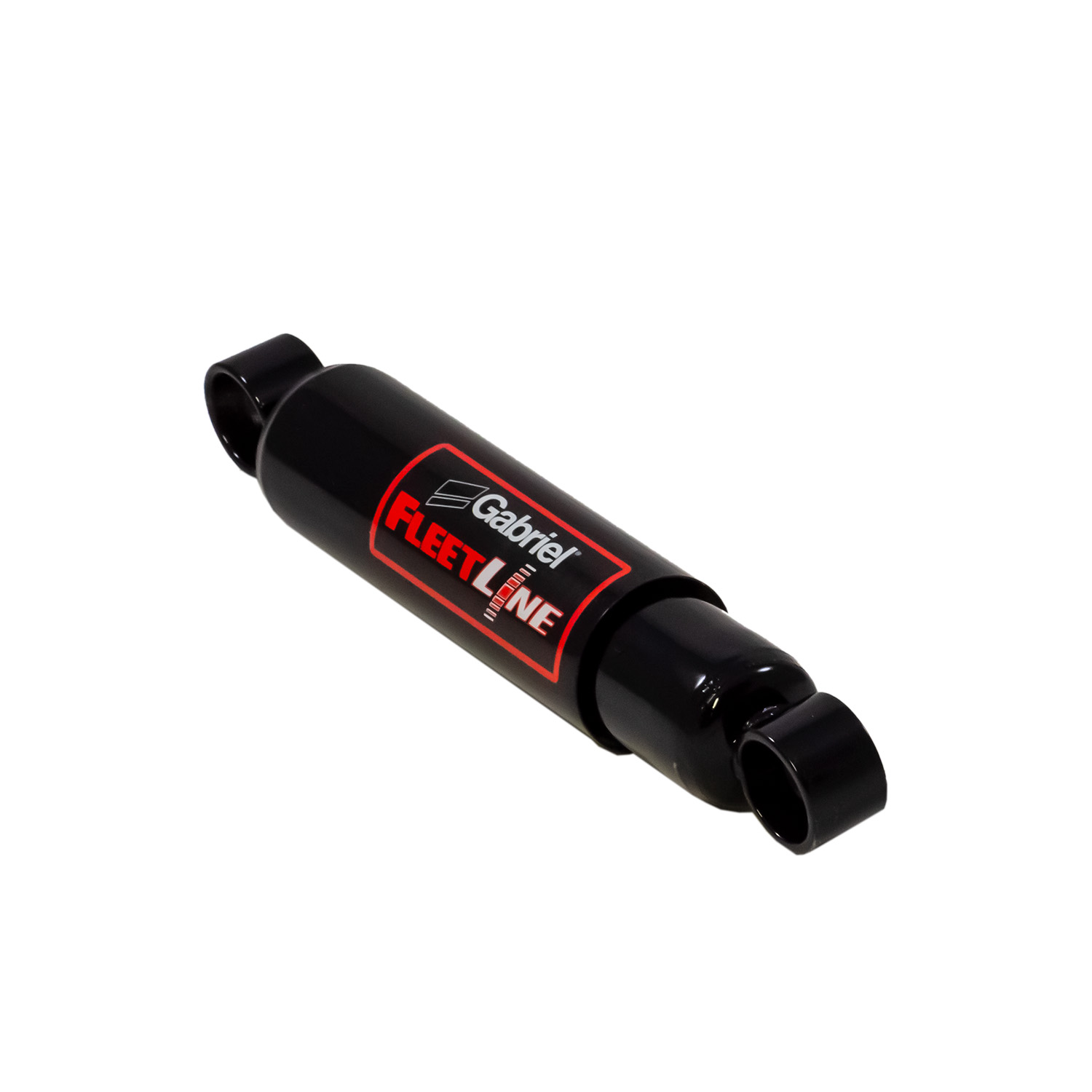

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Line: FleetLine
Extended Length: 19.76 in. 501.9 mm.
Collapsed Length: 12.6 in. 320.04 mm.
Stroke: 7.16 in. 181.86 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: NO
Rebound: 523 lb.
Compression: 199 lb.
Weight
6.1300

Compatibility

Freightliner: Heavy-duty models with 1.625" bore shocks
Kenworth:
T880: 2014–2023
W900: 1990–2023
W990: 2019–2023
Peterbilt:
320: 2000–2007
357: 2005–2010
365: 2000–2010
379: 1987–2007
384: 2000–2005
385: 1996–2007
387/389: 2006–2019
520: 2006–2015
567: 2010–2017
579: 2012–2020
587: 2010–2015
Volvo:
VNL Series: 2002–2016 (models using SA5062 or 83176224)
VHD: 2005–2018






Alternative Part Numbers

  • OEM:
  • <br />
  • 02-01787
  • 02-02737
  • 02-02737PLUS
  • 02-02742
  • 02-04010
  • 0201787
  • 0202737
  • 02027372
  • 0202737PLUS
  • 0202737PLUS2
  • 0202742
  • 02027422
  • 02202737-2
  • 02202737PLUS-2
  • 02202742-2
  • 063637208
  • 091357111
  • 145080
  • 315558
  • 3919932
  • 43645924973
  • 65101
  • 66435
  • 66436
  • 66535
  • 665655
  • 665928
  • 680261
  • 6802612
  • 83176224
  • 85062
  • 89408
  • 89436
  • ALLIANCE TRUCK PARTS ABP N32 G900019
  • ALLIANCE TRUCK PARTS ABP N32 O900019
  • BULL DOG HD1215-0032
  • DAYTON PARTS 441 - 85062
  • FCS F347227
  • FLEETRITE AMS650101
  • FLEETRITE AMS650102
  • GABRIEL 66436
  • GABRIEL 85062
  • GABRIEL 89408
  • GABRIEL 89408
  • GABRIEL PROSH85062
  • GASSLX 89408
  • GOLD 8160938
  • GOLD 9160095
  • KENWORTH 02-02737PLUS
  • KENWORTH 665928
  • KENWORTH 680261
  • KENWORTH B71-6007
  • KENWORTH B71-6011
  • KONI 88-1560
  • KYB 341613
  • MERITOR M85062
  • MONROE 65101
  • MONROE 65101
  • MONROE 65436
  • MONROE 66535
  • PETERBILT 02-01787
  • PETERBILT 02-02737
  • PETERBILT 02-02737PLUS
  • PETERBILT 02-02742
  • PETERBILT 665655
  • PETERBILT 665928
  • PETERBILT 680261
  • PETERBILT B71-6007
  • PETERBILT B71-6009
  • PETERBILT B71-6011
  • PRT 925119
  • SACHS 315558
  • SACHS 315558
  • TRP HS 85062
  • TRUCKMASTER 665928
  • TRUCKMASTER 680261
  • VOLVO 3919932
  • VOLVO 83176224
  • VOLVO RC SA5062
  • VOLVO SA5062
