Specifications

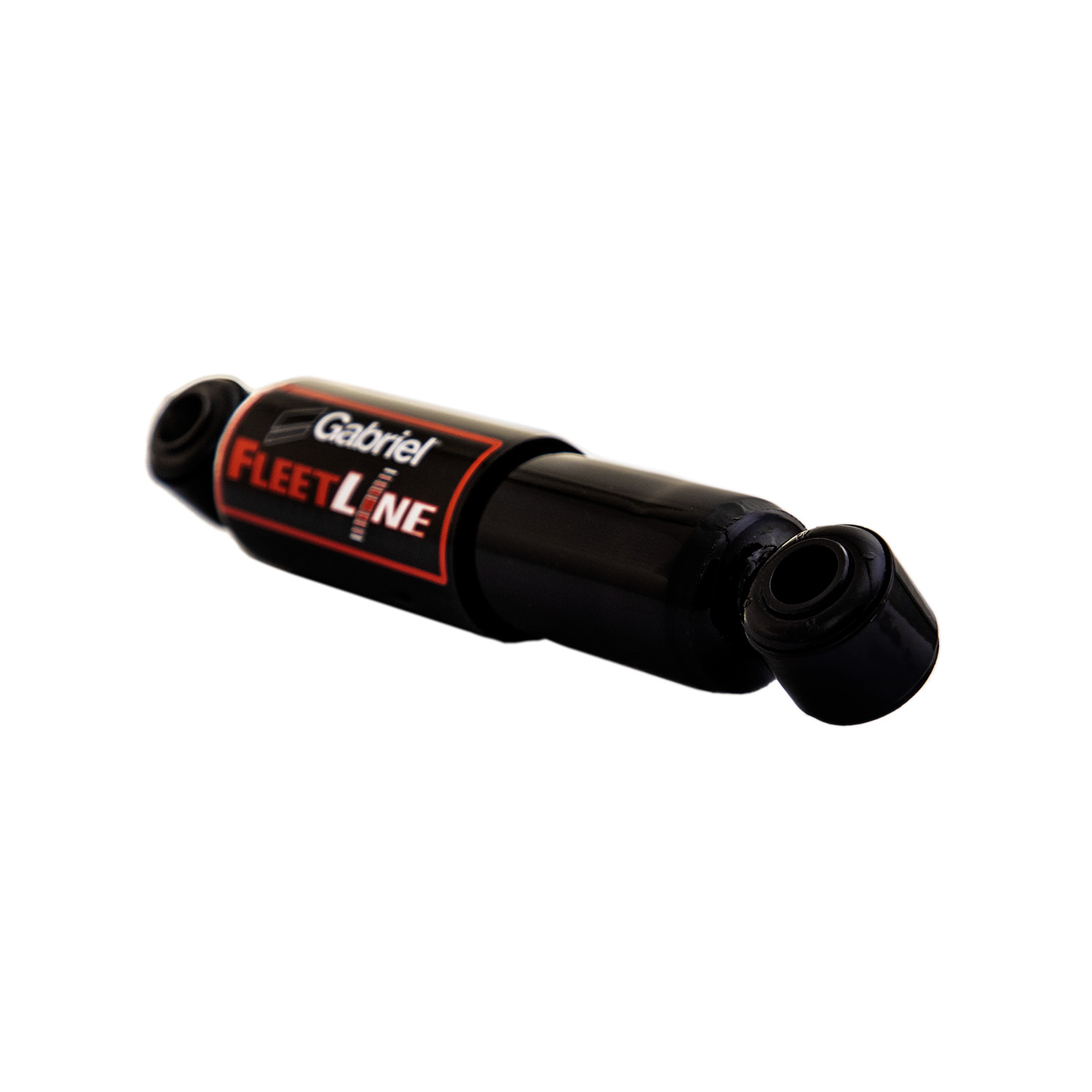

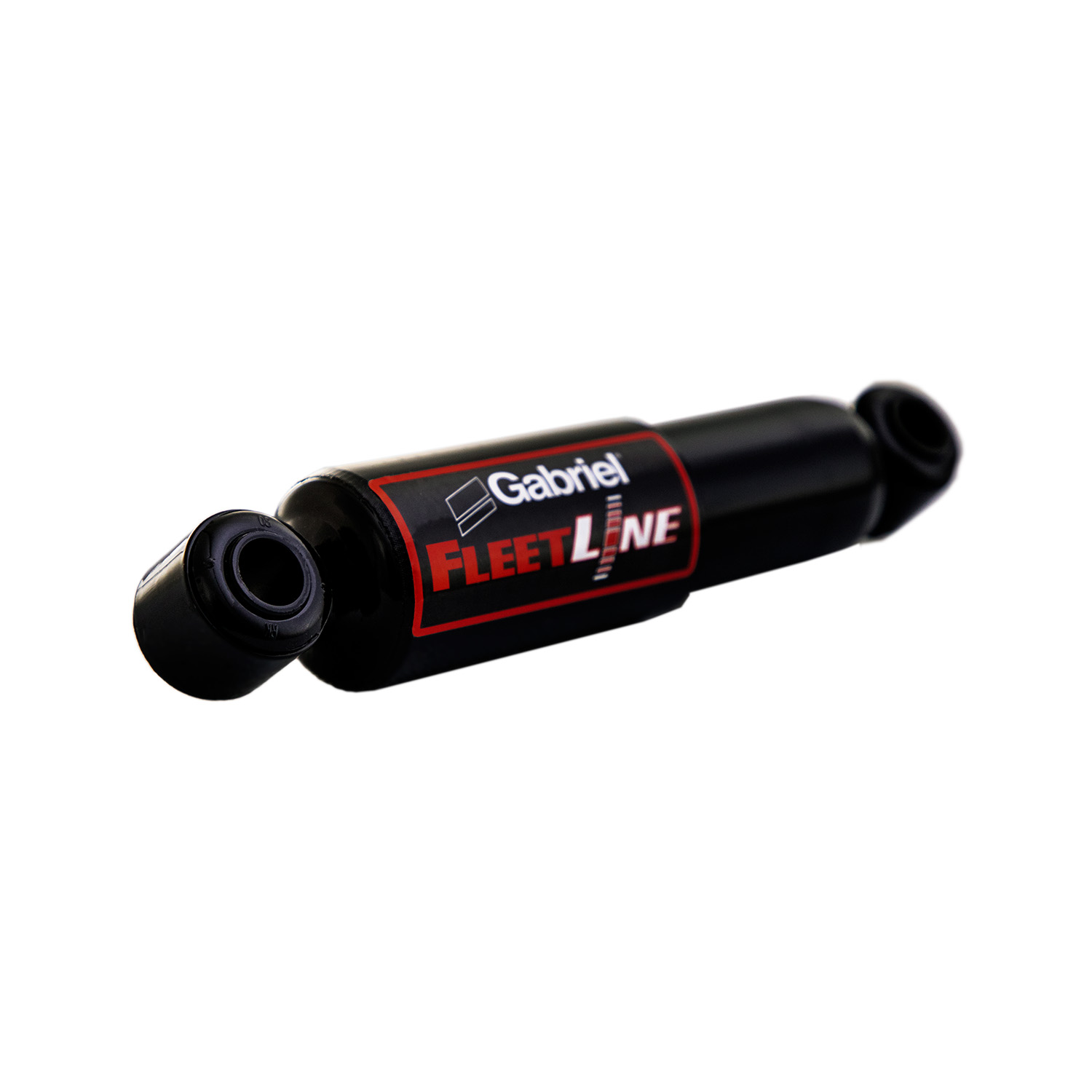

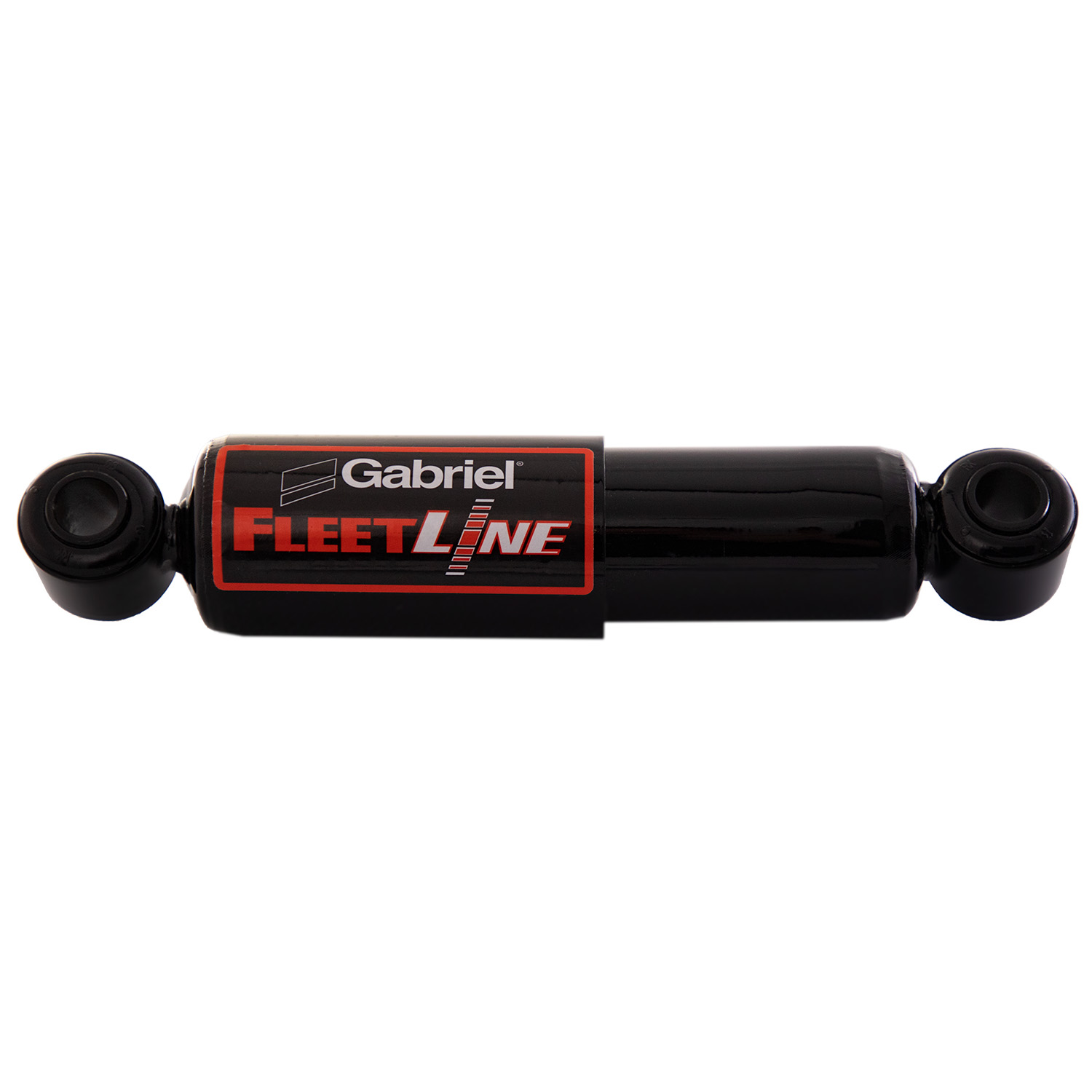

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Line: FleetLine
Extended Length: 13.26 in. 336.8 mm.
Collapsed Length: 9.49 in. 241.05 mm.
Stroke: 3.77 in. 95.76 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 1429 lb.
Compression: 335 lb.
Weight
4.8940

Compatibility

Arvin Meritor        Models with Manufacturing Number
Blue Bird    Additional Applications    Buses with Neway Air Suspensions with O.E.M. Number
Great Dane Trailer        Trailers with Great Dane part number
Hendrickson Trailer Suspension Systems    Additional Applications    HK190T (Slider Air Suspension)
Hendrickson Trailer Suspension Systems    Additional Applications    HK230 (Slider Air Suspension)
Hendrickson Trailer Suspension Systems    UnderSlung Style    HT250US (Models with O.E.M. Number)
Hendrickson Trailer Suspension Systems    UnderSlung Style    HT250US (Models with Remote Shock Mount) (Standard Travel w/ 5.5" to 6.5" Ride Height)
Hendrickson Trailer Suspension Systems    UnderSlung Style    HT250US (Models with Standard Shock Mount) (Standard Travel w/ 5.5" to 6.5" Ride Height)
Ingersoll Axles        Ingersoll part number
Reyco Suspension    Trailer    20AR & 22AR Models with O.E.M. Number
Reyco Suspension    Trailer    25 ARTU-12A-FS
Reyco Suspension    Trailer    25 ARUU-06-5A-NZ Models
Wabash National        Trailers with Aurora part number


Alternative Part Numbers

  • OEM:
  • <br />
  • Alliance Truck Parts ABP N32 G900037
  • Alliance Truck Parts ABP N32 G900037
  • Arvin 665769
  • Arvin 665769
  • Blue Bird 1526417
  • Blue Bird 1526417
  • Bulldog HD1214-0542
  • Bulldog HD1214-0542
  • Bulldog HD1215-0075
  • Bulldog HD1215-0075
  • FCS F347196
  • FCS F347196
  • Fleetrite AMS600166
  • Fleetrite AMS600166
  • Fleetrite AMS660166
  • Fleetrite AMS660166
  • Gabriel PROSH85052
  • Gabriel PROSH85052
  • Great Dane Trailers HENS-21292
  • Great Dane Trailers HENS-21292
  • Hendrickson 659024
  • Hendrickson 659024
  • Hendrickson 665694
  • Hendrickson 665694
  • Hendrickson 665759
  • Hendrickson 665759
  • Hendrickson A-21292
  • Hendrickson A-21292
  • Hendrickson B-21947
  • Hendrickson B-21947
  • Hendrickson B-23650
  • Hendrickson B-23650
  • Holland 90044833
  • Holland 90044833
  • Holland 90044834
  • Holland 90044834
  • KYB 341630
  • KYB 341630
  • KYB 345602
  • KYB 345602
  • Meritor M85052
  • Meritor M85052
  • Monroe 65510
  • Monroe 65510
  • Monroe 66607
  • Monroe 66607
  • PRT 925278
  • PRT 925278
  • Reyco Granning 665833
  • Reyco Granning 665833
  • Reyco Granning 700098-03
  • Reyco Granning 700098-03
  • Sachs 315541
  • Sachs 315541
  • Sachs 316318
  • Sachs 316318
  • Sachs 317533
  • Sachs 317533
  • TRP HS 85052
  • TRP HS 85052
  • Tuthill Transfer 702136-01
  • Tuthill Transfer 702136-01
  • Volvo 3919569
  • Volvo 3919569
  • Volvo 83176222
  • Volvo 83176222
  • Wabash National HENS-21292
  • Wabash National HENS-21292
  • Watson & Chalin 17300
  • Watson & Chalin 17300
