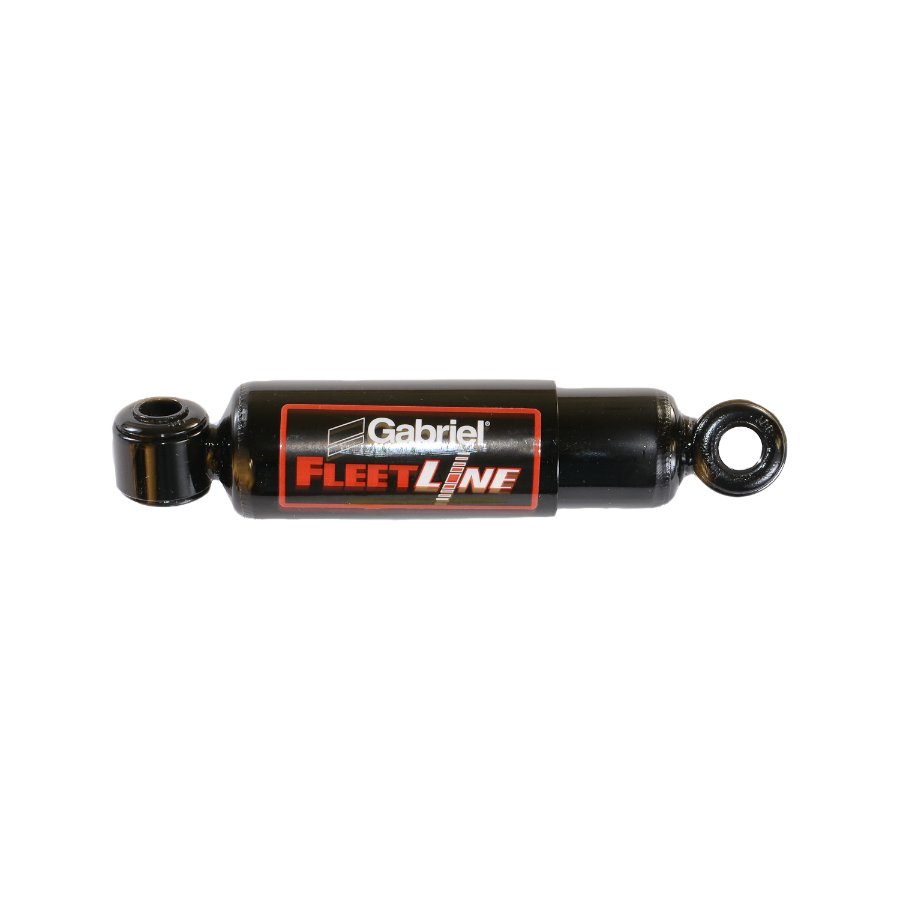

Gabriel Suspension Shock Absorber Part No: 85045

$40.82

Gabriel Suspension Shock Absorber 85045 are designed for commercial trucks and trailers, providing enhanced durability and precise valving rates to counter initial suspension softening. These Fleetline shocks are built with original equipment quality components and a 10-stage valving system, these shock absorbers ensure consistent performance and reduce wear on suspension parts. Featuring a super-finished chrome piston rod for corrosion resistance and a leak-proof piston seal for extended lifespan, they offer superior durability. With cold-formed, arc-welded eye-rings and mounts, plus a hydraulic rebound stop, these shocks deliver reliable performance in demanding conditions.

Specifications

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Product Line: FleetLine
Extended Length: 14.52 in. 368.81 mm.
Collapsed Length: 10.12 in. 257.05 mm.
Stroke: 4.4 in. 111.76 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 1020 lb.
Compression: 219 lb.

Weight

5.2280

Compatibility

Arvin Meritor       Models with Manufacturing Number
Cush Corporation   Trailer Suspensions - Top Mount   RoughNeck Series, Cush Integrated, TopMount 25K
Hendrickson Trailer Suspension Systems   Intraax   AAL 23K, 25K & 30K Models Front shocks with 6.5" to 9" Ride Height
Hendrickson Trailer Suspension Systems   Intraax   AANL 23K Models with 6.5" to 9" Ride Height - Standard
Hendrickson Trailer Suspension Systems   Intraax   AAZL 23K / 46K Models with 6.5" to 9" Ride Height - Standard
Hendrickson Trailer Suspension Systems   Intraax   Low Ride Height Models with (6.5" to 8" Ride Height)
Hendrickson Trailer Suspension Systems   UnderSlung Style   HT250US (Models with Angled and Frame Clearance Mount) (Standard Travel w/ 6.5", 7.5" & 14" Ride Height)
Hendrickson Trailer Suspension Systems   UnderSlung Style   HT250US (Models with O.E.M. Number)
Hendrickson Trailer Suspension Systems   UnderSlung Style   HT250US (Models with Standard Shock Mount) (Extended Rebound w/ 6.5" Ride Height)
Ingersoll Axles       Ingersoll part number
Reyco Suspension   Trailer   23 ARTB-14A-FS Models
Reyco Suspension   Trailer   23 ARTU-14A-FS and -15A-FS Models
Reyco Suspension   Trailer   25 ARTBL-14A-FS, -15A-FS, -16A-FS, -17A-FS Models
Reyco Suspension   Trailer   25 ARUUL-09A, -09A-99, -9S, -09S-99 Models
Ridewell Corp.   Trailer Air-Rides   RAR - 244 FeatherRide Light Duty Air Suspension (8,000 lb Capacity)
SAF Holland   Trailer Air Suspension   AR-80 Models Trailer Air Suspension (AR-80-9, -9FM)
SAF Holland   Trailer Air Suspension   CB 25Y/CBX 25Y Models with Fusion Axle and Beam Assembly (7.0" Ride Height)
SAF Holland   Trailer Air Suspension   CB-2300 Models Trailer Air Suspension (CB-2300-14)
SAF Holland   Trailer Air Suspension   CBX 23 Models Trailer Air Suspension (CBX 23-14)
Utility Trailer Manufacturing Company   Flatbeds   Drop Deck Trailers with Hendrickson AANL 23K Intraax Air Ride with 6.5" to 9" Ride Height - Standard
Wabash National       Trailers with Aurora part number
