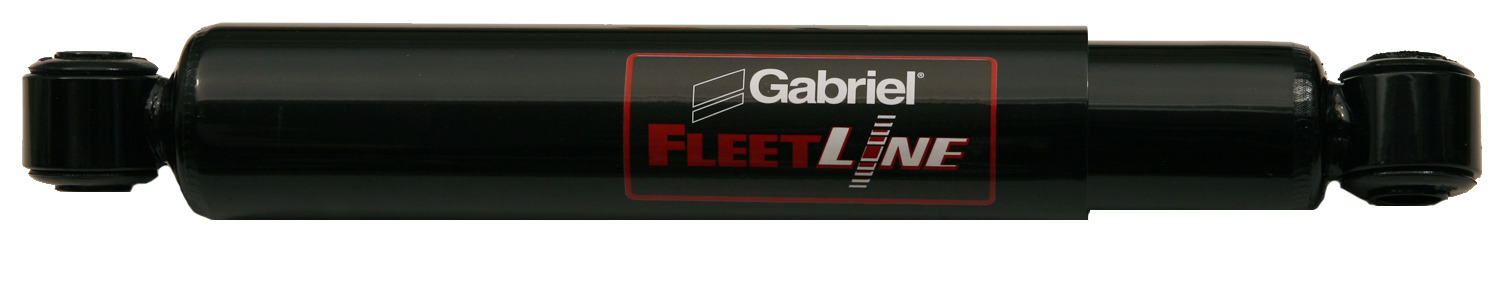

Suspension Shock Absorber

Gabriel Suspension Shock Absorber 85036 is renowned for durability and reliability in low-friction suspensions. These heavy-duty Fleetline shocks offer performance that matches the original ride, reducing wear on suspension and vehicle parts. Trust FleetLine shock absorber by Gabriel® for reliable performance in commercial truck and trailer applications.

Gabriel Part No: 85036

$59.46

Specifications

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (85000 series) - Added durability makes the Fleetline™ 85000 series the standard heavy duty product for today’s low friction suspension. Designed as a direct replacement for the original equipment shock, FleetLine shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. Cold formed, 360 degree arc-welded eye-ring and mounts and a 1 5/8” bore provide improved durability. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending

Weight

7.4620

Product Line: FleetLine
Extended Length: 26.38 in. 670.05 mm.
Collapsed Length: 16.29 in. 413.77 mm.
Stroke: 10.09 in. 256.29 mm.
Bore: 1-5/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 633 lb.
Compression: 119 lb.

Compatibility

Autocar LLC.   Additional Applications   Models with Hendrickson HTS 210, HTS 230 and HTS 260 Suspensions
Autocar LLC.   Xpert   4 X 2 Models (CLASS 7 & 8) Models with Hendrickson HTS 210 Suspension
Blue Bird   All American Series (FE & RE Models)   FE Models School Bus (Front Engine)
Hendrickson Truck Suspension Systems   Additional Applications   HTS 210 For Spartan Chassis (Type C School Bus Applications)
Lion       Bus Chassis With Hendrickson HTS 210 Suspension (Type C School Bus Applications)
Mack   CV   CV-713 Models with 18,000 lb Front Axles
Mack   Granite   Models with Hendrickson HAS Series Rear Suspension
Mack   GU7   GU713 Models with Hendrickson HAS Series Rear Suspension
Mack   GU8   GU813 Models with Hendrickson HAS Series Rear Suspension
Mack   MR   Models with Front Taperleaf Springs
Mack   R   Models with Front Taperleaf Springs
Mack   R   R, U, RD 600 Models/ MR600 Models with Front Taperleaf Springs
Mack   R   R600 Models-3 1/2" Wide springs
Mack   RD   Models with Front Taperleaf Springs
Mack   RD   RD600 Models-3 1/2" Wide springs
Mack   TD700   T713 Models with Hendrickson HAS Series Rear Suspension
Mack   Titan   Models with Hendrickson HAS Series Rear Suspension
Mack   U   Models with Front Taperleaf Springs
Peterbilt   357   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   362   C.O.E. Models with 14600 lb Taper Leaf Springs and Set Back Front Axle
Peterbilt   375   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   376   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   377   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   378   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   379   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   386   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   387   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   388   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Peterbilt   389   Conventional Models with Front Air Suspension and without Set Back Front Axle.
Spartan Motors       Chassis With Hendrickson HTS 210 Suspension (Type C School Bus Applications)
Volvo   VHD   Models with Hendrickson HAS Series Rear Suspension
Xos   Additional O.E.M. Interchanges   Medium Duty Trucks With Hendrickson HTS Suspension (16K Capacity)

Alternative Part Numbers

AUTOCAR 60665-025
AUTOCAR 60665-025L
BLUEBIRD SCHOOL BUS 0014605
BLUEBIRD SCHOOL BUS 59057-002
BULL DOG HD1215-0078
FLEETRITE AMS650411
GOLD 8160907
HENDRICKSON TRUCK SUSPENSION SYSTEMS 47902-20
HENDRICKSON TRUCK SUSPENSION SYSTEMS 57324-1
HENDRICKSON TRUCK SUSPENSION SYSTEMS 59057-002
HENDRICKSON TRUCK SUSPENSION SYSTEMS 60665-004
HENDRICKSON TRUCK SUSPENSION SYSTEMS 60665-004L
HENDRICKSON TRUCK SUSPENSION SYSTEMS 60665-025
HENDRICKSON TRUCK SUSPENSION SYSTEMS 60665-025L
HENDRICKSON TRUCK SUSPENSION SYSTEMS 671006
KONI 88-1489
KONI 88-1559-SP1
KYB 341624
LION BUS 60665-025
LION BUS 60665-025L
MACK 14QK-2100P6
MACK 14QK-366
MACK 14QK-366P1
MACK 14QK-366P2
MACK 14QK-366P3
MACK 22314111
MACK 25625151
MACK 60675-13
MACK 651103
MERITOR M85036
MONROE 65114
MONROE 65411
MONROE 65481
MOTORCRAFT CAX-916
PETERBILT 02-02142
PETERBILT 02-02740
PETERBILT 665658
SACHS 316 307
SPARTAN MOTORS 60665-025
SPARTAN MOTORS 60665-025L
VOLVO 3199956
VOLVO 3919944
VOLVO 3919956
VOLVO 83176218
VOLVO SA5036
Blue Bird 00020317
Blue Bird 0014605
Peterbilt 0202142
Peterbilt 02-02142
Peterbilt 0202740
Peterbilt 02-02740
Kenworth 02027402
Peterbilt 02027402
Kenworth 02-02740-2
Peterbilt 02-02740-2
Blue Bird 060665-004
Mack 14QK2100P6
Mack 14QK-2100P6
Mack 14QK366
Mack 14QK-366
Mack 14QK366P1
Mack 14QK-366P1
Mack 14QK366P2
Mack 14QK-366P2
Mack 14QK366P3
Mack 14QK-366P3
Volvo 22314111
Mack 22314111
Volvo 23568046
Mack 25625151
Sachs 316307
Volvo 3199956
Volvo 3919944
Volvo 3919956
Dayton Parts 441 - 850365411
Dayton Parts 441 - 850365481
Hendrickson 4790220
Hendrickson 47902-20
Hendrickson 573241
Hendrickson 57324-1
Blue Bird 59057002
Hendrickson 59057002
Blue Bird 59057-002
Hendrickson 59057-002
Hendrickson 60665004
Blue Bird 60665-004
Hendrickson 60665-004
Hendrickson 60665004L
Hendrickson 60665-004L
Hendrickson 60665025
Autocar LLC 60665025
Spartan 60665-025
Hendrickson 60665-025
Autocar LLC 60665-025
Spartan 60665025L
Hendrickson 60665025L
Autocar LLC 60665025L
Spartan 60665-025L
Hendrickson 60665-025L
Autocar LLC 60665-025L
Hendrickson 60675010
Hendrickson 60675-010
Volvo 6067513
Mack 6067513
Volvo 60675-13
Mack 60675-13
Mack 651103
Monroe Shocks & Struts 65114
Monroe Shocks & Struts 65411
Monroe Shocks & Struts 65481
Peterbilt 665658
Hendrickson 671006
Gold 8160907
Volvo 83176218
Koni 88-1489
Koni 88-1559-SP1
PRT 925110
Fleetrite AMS650411
Motorcraft CAX-916
FCS F347307
Bulldog HD1215-0078
Meritor M85036
Volvo Truck SA5036
Volvo SA5036
GasSLX 89405
