Specifications

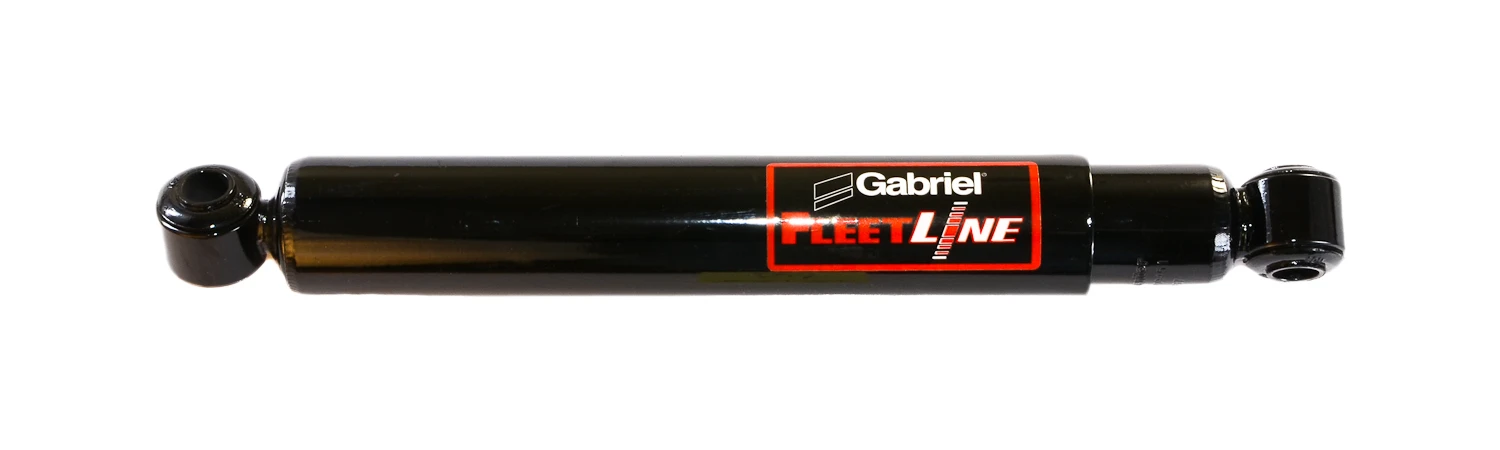

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (83000 series) - Designed as a direct replacement for the original equipment shock, FleetLine™ shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Weight
7.0140
Product Line: FleetLine
Extended Length: 30.04 in. 763.02 mm.
Collapsed Length: 17.79 in. 451.87 mm.
Stroke: 12.25 in. 311.15 mm.
Bore: 1-3/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 517 lb.
Compression: 132 lb.

Compatibility

Autocar Xpert (2012, 2014–2024)
Blue Bird All American RE/FE (2000–2022)
Chevrolet C6500/C7500 Kodiak (1997–2009)
Chevrolet C8500 (2003–2009)
Isuzu FVR (2000–2011)
Isuzu FTR (2000–2011, 2018–2024)
Kenworth T270/T370 (2008–2014)
Kenworth K270 (2013–2024)
Kenworth T380 (2022–2024)
Mack CX (1998–2005)
Mack CH (1989–2005)
Mack CL (1991–2007)
Caterpillar CT680 (2015–2017)


Alternative Part Numbers

OEM: Autocar 60670-005
Bering Truck Corp. 47902-24
Blue Bird School Bus 0014985
Blue Bird School Bus 59057-001
Chevrolet Truck 12474917
Chevrolet Truck 15740554
Gabriel 83137
Meritor M83137

Autocar 60670-005
Bering Truck Corp. 47902-24
Bilstein B46-1594
Blue Bird School Bus 0014985
Blue Bird School Bus 59057-001
Chevrolet Truck 12474917
Chevrolet Truck 15740554
Gabriel 83137
GBL83137
Meritor M83137
