Specifications

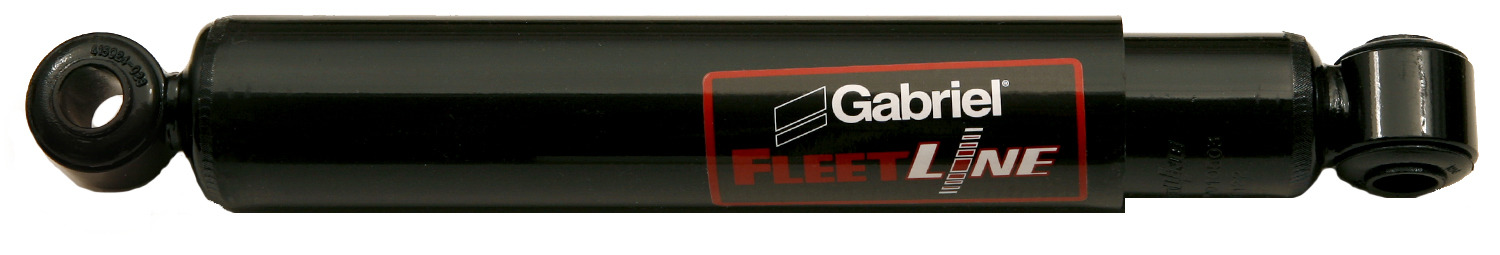

FleetLineTM Shocks – Commercial Truck and Trailer Shocks (83000 series) - Designed as a direct replacement for the original equipment shock, FleetLine™ shock absorbers by Gabriel® provide a valving rate that compensates for initial truck suspension softening, providing performance that better matches the original ride. Built with original equipment quality components and 10 stage valving to ensure superior performance throughout the life of the shock, it also reduces wear and tear on other costly suspension and vehicle parts. And like all Gabriel shocks and struts, FleetLine shocks feature a super-finished chrome piston rod for superior corrosion resistance and a leak-proof piston seal which extends product life. Unique pressurized piston seal design reduces force-velocity variabilities and self compensates for wear. A hydraulic rebound stop, where required, prevents shocks from topping out and suspensions from overextending
Product Line: FleetLine
Extended Length: 25.28 in. 642.11 mm.
Collapsed Length: 15.79 in. 401.07 mm.
Stroke: 9.49 in. 241.05 mm.
Bore: 1-3/8 in.
Dust Tube: YES
Recoil Cutoff: YES
Rebound: 661 lb.
Compression: 201 lb.
Weight
6.1500

Compatibility

Allco Trailer        Dump Trailers with Watson & Chalin TA-5000-DB-19 Air Suspension
Autocar LLC.    Additional Applications    DC87T, DC9364 From Feb. 1971
Chevrolet    C6500 Kodiak    Models with Hendrickson Air Suspension (Stamping number 47902-13)
Chevrolet    C7500 Kodiak    Models with Hendrickson Air Suspension (Stamping number 47902-13)
Chevrolet    C8500    Models with Hendrickson Air Suspension (Stamping number 47902-13)
Chevrolet    T6500    Models with Hendrickson Air Suspension (Stamping number 47902-13)
Chevrolet    T7500    Models with Hendrickson Air Suspension (Stamping number 47902-13)
Chevrolet    T8500    Models with Hendrickson Air Suspension (Stamping number 47902-13)
Coachmen    Aurora    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Coachmen    Encore    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Coachmen    Encounter    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Coachmen    Mirada    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Coachmen    Pursuit    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Damon    Challenger    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Damon    Daybreak    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Damon    Intruder    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Damon    Outlaw    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Entegra Coach    Emblem    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Entegra Coach    Vision    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Fleetwood    Axon    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Fleetwood    Bounder    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Fleetwood    Flair    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Fleetwood    Flex    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Fleetwood    Fortis    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Fleetwood    Southwind    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Fleetwood    Storm    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Ford    CL & CLT Series - Highway Tractor Tilt Cab    Models with Hendrickson Rear Air Suspension
Ford    F53    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Ford    F53    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Ford    L, LT & LTS - Conventional Cab    L-8000, L-9000, LT-8000, LT-9000 with Hendrickson Rear Air Suspension
Ford    LN & LNT - Conventional Cab    LN-7000, LN-8000, LN-9000, LNT-8000, LNT-9000 with Hendrickson Rear Air Suspension
Forest River    FR3    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Forest River    Georgetown    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Forest River    Georgetown GT3    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Forest River    Georgetown GT5    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Forest River    Georgetown GT7    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Fruehauf        All with Lift Axle
Fruehauf        Tractor & Trailer Lift Axle with O.E.M. Number
Georgie Boy Manufacturing    Class A MotorHomes    All Series MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
GMC    C - Series (C6500, C7500, C8500) Topkick    Models with Hendrickson Air Suspension (Stamping number 47902-13)
GMC    T5500    Models with Hendrickson Air Suspension (Stamping number 47902-13)
GMC    T6500    Models with Hendrickson Air Suspension (Stamping number 47902-13)
GMC    T7500    Models with Hendrickson Air Suspension (Stamping number 47902-13)
GMC    T8500    Models with Hendrickson Air Suspension (Stamping number 47902-13)
Great Dane Trailer        Trailers with Reyco Suspension 88
Hendrickson Truck Suspension Systems    HA - Series    HA - 180 (Used on all except Mack)
Hendrickson Truck Suspension Systems    HA - Series    HA - 200 (Used on all except Mack)
Hendrickson Truck Suspension Systems    HA - Series    HA - 230 (Used on all except Mack)
Hendrickson Truck Suspension Systems    HA - Series    HA - 360 (Used on all except Mack)
Hendrickson Truck Suspension Systems    HA - Series    HA - 400 (Used on all except Mack)
Hendrickson Truck Suspension Systems    HA - Series    HA - 460 (Used on all except Mack)
Holiday Rambler    Admiral    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Holiday Rambler    Admiral SE    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Holiday Rambler    Admiral SVE    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Holiday Rambler    Admiral XE    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Holiday Rambler    Endeavor    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Holiday Rambler    Vacationer    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Isuzu    FVR Series    Models with Hendrickson HAS suspension
Itasca    Class A MotorHomes    SunCruiser Series MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Jayco    Class A MotorHomes    Precept Series MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Jayco    Class A MotorHomes    Alante Series MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Kenworth        OE PLUS Shock Stamping Number
Kenworth        TruckMaster Shock Stamping Number
Lodal Inc.        Refuse Truck
Mc Neilus Truck & Man.        Mc Neilus part number
Monaco Coach    La Palma    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Monaco Coach    Monarch    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
National RV    Class A MotorHomes    Models with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Newmar    Class A MotorHomes    Bay Star, Bay Star Sport & Canyon Star Series MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Nexus    Class A MotorHomes    Maybach Series MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Oshkosh Motor Truck Co.        Models with 3/4" Mounting Pins
Peterbilt    Additional Applications    OE PLUS Shock Stamping Number
Peterbilt    Additional Applications    TruckMaster Shock Stamping Number
Reyco Suspension    Steer Axle    1207 Models
Reyco Suspension    Trailer    87 for Great Dane Models
Thor Motor Coach    A.C.E    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Thor Motor Coach    Challenger    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Thor Motor Coach    Hurricane    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Thor Motor Coach    Miramar    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Thor Motor Coach    Outlaw    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Thor Motor Coach    Windsport    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Tuthill Technologiies    Steer Axle    1207 Models
Tuthill Technologiies    Trailer    87 for Great Dane Models
Volvo    Additional Applications    1500 Models
Volvo    Additional Applications    3014, 3015, 3016, 3020 C.O.E. and 1500
Volvo    Additional Applications    9000 Models
Volvo    Additional Applications    RC2
Western Star    3800 Series - Heritage Class    With Hendrickson Rear Suspension
Western Star    4800 & 4900 Series - Constellation Class    With Hendrickson Rear Suspension
Western Star    4800 & 4900 Series - Heritage Class    With Hendrickson Rear Suspension
Western Star    5800 & 5900 Series - Constellation Class    With Hendrickson Rear Suspension
Western Star    5900 & 6900 Series - Heritage Class    With Hendrickson Rear Suspension
Winnebago    Adventurer    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Winnebago    Adventurer    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Winnebago    Intenet    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Winnebago    Intenet    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Winnebago    Sightseer    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Winnebago    Sightseer    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Winnebago    Sunova    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Winnebago    Sunova    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Winnebago    Sunstar    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Winnebago    Sunstar    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Winnebago    Sunstar LX    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Winnebago    Sunstar LX    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Winnebago    Sunstar NPF    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW
Winnebago    Vista    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Winnebago    Vista    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Winnebago    Vista LX    Motorhome Chassis with 16,000 lb GVW to 18,000 lb GVW
Winnebago    Vista LX    Motorhome Chassis with 20,500 lb GVW to 22,000 lb GVW
Winnebago    Vista NPF    MotorHomes with Ford F53 Chassis with 16,000 lb GVW to 22,000 lb GVW

Alternative Part Numbers

  • OEM:
  • <br />
  • 47902-13
  • 47902-8
  • 5116-117
  • 551002
  • 58061
  • 6025
  • 65412
  • 65479
  • 665784
  • 69500
  • 69705
  • 727602
  • 82-01878
  • 88-1458-SP1
  • 88-1458-SP2
  • 88-5163
  • 8805-1019
  • 90044683
  • 9180196
  • 925041
  • 9960257
  • 9U94-18080-AA
  • 9U9Z-18125-A
  • ALLCO TRAILER 727602
  • AMS650412
  • AMS650479
  • ASH-1023
  • ASH-1206
  • ASH-1230
  • ASH-137
  • ASH-25824
  • AT-621
  • AX-97A
  • BULL DOG HD1215-0110
  • BULL DOG HD1215-0133
  • Chevrolet 12474915
  • Chevrolet 15963161
  • COACHMEN RV 9U94-18080-AA
  • COACHMEN RV 9U9Z-18125-A
  • COACHMEN RV ASH-1023
  • COACHMEN RV ASH-1206
  • COACHMEN RV ASH-1230
  • COACHMEN RV ASH-137
  • COACHMEN RV ASH-25824
  • COACHMEN RV AT-621
  • CONDUMEX 58061
  • CONDUMEX 69500
  • CONDUMEX 69705
  • DAMON MOTOR COACH ASH-25824
  • E83218
  • ENTEGRA COACH ASH-25824
  • EUCLID E83218
  • F0HT-18080-AA
  • F0HZ-18125-A
  • F347309
  • F81D-18080-CD
  • F81Z-18125-FA
  • FLEETRITE AMS650412
  • FLEETRITE AMS650479
  • FLEETWOOD RV 9U94-18080-AA
  • FLEETWOOD RV 9U9Z-18125-A
  • FLEETWOOD RV ASH-1023
  • FLEETWOOD RV ASH-1206
  • FLEETWOOD RV ASH-1230
  • FLEETWOOD RV ASH-137
  • FLEETWOOD RV ASH-25824
  • FLEETWOOD RV AT-621
  • FORD 47902-13
  • FORD 47902-8
  • FORD 9U94-18080-AA
  • FORD 9U9Z-18125-A
  • FORD ASH-1023
  • FORD ASH-1206
  • FORD ASH-1230
  • FORD ASH-137
  • FORD ASH-25824
  • FORD AT-621
  • FORD F0HT-18080-AA
  • FORD F0HZ-18125-A
  • FORD F81D-18080-CD
  • FORD F81Z-18125-FA
  • FOREST RIVER INC 9U94-18080-AA
  • FOREST RIVER INC 9U9Z-18125-A
  • FOREST RIVER INC ASH-1023
  • FOREST RIVER INC ASH-1206
  • FOREST RIVER INC ASH-1230
  • FOREST RIVER INC ASH-137
  • FOREST RIVER INC ASH-25824
  • FOREST RIVER INC AT-621
  • FREIGHTLINER 47902-13
  • FRUEHAUF 5116-117
  • FRUEHAUF UCE-9399-1
  • GASSLX 89406
  • GEORGIE BOY MANUFACTURING 9U94-18080-AA
  • GEORGIE BOY MANUFACTURING 9U9Z-18125-A
  • GEORGIE BOY MANUFACTURING ASH-1023
  • GEORGIE BOY MANUFACTURING ASH-1206
  • GEORGIE BOY MANUFACTURING ASH-1230
  • GEORGIE BOY MANUFACTURING ASH-137
  • GEORGIE BOY MANUFACTURING ASH-25824
  • GEORGIE BOY MANUFACTURING AT-621
  • GILLIG BROS. 82-01878
  • GILLIG BROS. 90044683
  • GMC TRUCK 12474915
  • GMC TRUCK 15963161
  • GOLD 9180196
  • GREAT DANE TRAILER 18164-01
  • HD1215-0110
  • HD1215-0133
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 47902-13
  • HENDRICKSON TRUCK SUSPENSION SYSTEMS 47902-8
  • HOLIDAY RAMBLER 9U94-18080-AA
  • HOLIDAY RAMBLER 9U9Z-18125-A
  • HOLIDAY RAMBLER ASH-1023
  • HOLIDAY RAMBLER ASH-1206
  • HOLIDAY RAMBLER ASH-1230
  • HOLIDAY RAMBLER ASH-137
  • HOLIDAY RAMBLER ASH-25824
  • HOLIDAY RAMBLER AT-621
  • HU9Z-18125-B
  • ISUZU 12474915
  • ITASCA 9U94-18080-AA
  • ITASCA 9U9Z-18125-A
  • ITASCA ASH-1023
  • ITASCA ASH-1206
  • ITASCA ASH-1230
  • ITASCA ASH-137
  • ITASCA ASH-25824
  • ITASCA AT-621
  • Jaguar 9U9Z18125B
  • Jaguar ASH-25825
  • JAGUAR ASH25824
  • JAGUAR ASH25825
  • JAYCO RV INC ASH-25824
  • KENWORTH 47902-13PLUS
  • KENWORTH 665784
  • KG6008A
  • KONI 88-1458-SP1
  • KONI 88-1458-SP2
  • KONI 88-5163
  • KONI 8805-1019
  • KYB KG6008A
  • LODAL, INC. 9960257
  • M83122
  • MACK 14QK-372M3
  • MAECO 16772
  • MAECO 16776
  • MAECO 6025
  • MARMON 37-1-1
  • MARMON 576451
  • MC NEILUS TRUCK & MAN. 6HS773 MTM
  • MC NEILUS TRUCK & MAN. 7HS237 MTM
  • MERITOR M83122
  • MONACO 9U94-18080-AA
  • MONACO 9U9Z-18125-A
  • MONACO ASH-1023
  • MONACO ASH-1206
  • MONACO ASH-1230
  • MONACO ASH-137
  • MONACO ASH-25824
  • MONACO AT-621
  • MONROE 551002
  • MONROE 65412
  • MONROE 65479
  • MONROE 6994
  • MOTORCRAFT ASH-1023
  • MOTORCRAFT ASH-1206
  • MOTORCRAFT ASH-1230
  • MOTORCRAFT ASH-137
  • MOTORCRAFT ASH-25824
  • MOTORCRAFT AT-621
  • MOTORCRAFT AX-97A
  • NATIONAL RV INC. 9U94-18080-AA
  • NATIONAL RV INC. 9U9Z-18125-A
  • NATIONAL RV INC. ASH-1023
  • NATIONAL RV INC. ASH-1206
  • NATIONAL RV INC. ASH-1230
  • NATIONAL RV INC. ASH-137
  • NATIONAL RV INC. ASH-25824
  • NATIONAL RV INC.... AT-621
  • NEWMAR CORP ASH-25824
  • NEXUS RV ASH-25824
  • OSHKOSH MOTORS 26228-A
  • OSHKOSH MOTORS 665060
  • PETERBILT 47902-13PLUS
  • PETERBILT 665784
  • PROSH83122
  • REYCO SUSPENSION 17403-01
  • REYCO SUSPENSION 18164-01
  • SACHS 317774
  • SACHS 410058
  • SAF HOLLAND 6025
  • SAF HOLLAND 90044679
  • SAF HOLLAND 90044683
  • SAF HOLLAND 90044688
  • THOR MOTOR COACH ASH-25824
  • TRUCKMASTER 665784
  • TUTHILL TECHNOLOGIES 17403-01
  • TUTHILL TECHNOLOGIES 18164-01
  • UCE-9399-1
  • VOLVO 1091348
  • VOLVO 3199957
  • VOLVO 3919957
  • WESTERN STAR 35066-4413
  • WESTERN STAR 47902-13
  • WESTERN STAR 47902-8
  • WINNEBAGO 9U94-18080-AA
  • WINNEBAGO 9U9Z-18125-A
  • Winnebago 9U9Z18125B
  • WINNEBAGO ASH-1023
  • WINNEBAGO ASH-1206
  • WINNEBAGO ASH-1230
  • WINNEBAGO ASH-137
  • WINNEBAGO ASH-25824
  • Winnebago ASH-25825
  • WINNEBAGO ASH25825
  • WINNEBAGO AT-621

Related Parts

Suspension Shock Absorber
Gabriel Part No: 83001
$46.15 View Part
Suspension Shock Absorber
Gabriel Part No: 83021
$47.42 View Part
Suspension Shock Absorber
Gabriel Part No: 83002
$47.91 View Part
Suspension Shock Absorber
Gabriel Part No: 83008
$47.03 View Part
Suspension Shock Absorber
Gabriel Part No: 83009
$47.76 View Part
Suspension Shock Absorber
Gabriel Part No: 83017
$47.27 View Part
Suspension Shock Absorber
Gabriel Part No: 83025
$53.57 View Part
Suspension Shock Absorber
Gabriel Part No: 83027
$44.39 View Part
Suspension Shock Absorber
Gabriel Part No: 83031
$52.37 View Part
Suspension Shock Absorber
Gabriel Part No: 83041
$45.01 View Part
Suspension Shock Absorber
Gabriel Part No: 83048
$44.00 View Part
Suspension Shock Absorber
Gabriel Part No: 83051
$47.31 View Part
Suspension Shock Absorber
Gabriel Part No: 83056
$55.67 View Part
Suspension Shock Absorber
Gabriel Part No: 83128
$40.63 View Part

This website uses cookies to provide users the best possible experience. Learn more. Please also review our terms of use and terms of sale.
