Drag Link 31.00" C-to-C - Kenworth - 463.DS5922A

AUTOMANN Drag Link 31.00" C-to-C - Kenworth Part No: 463.DS5922A

$264.04

Kenworth

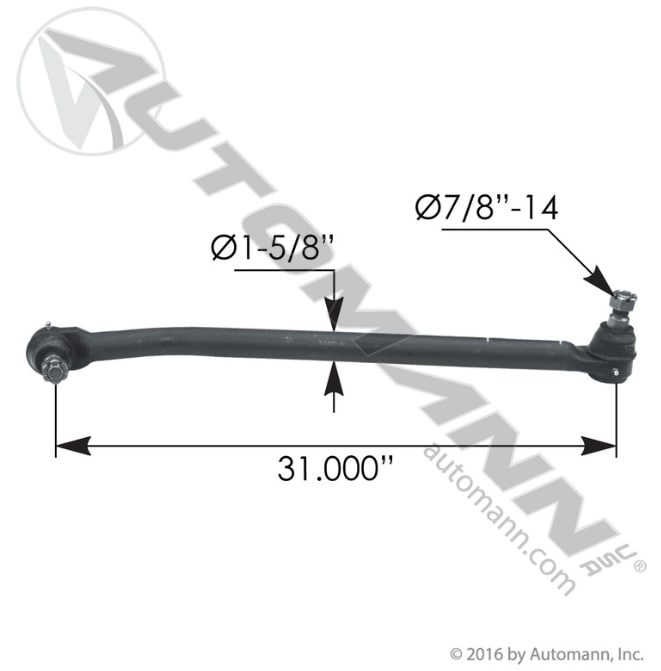

The Automann 463.DS5922A drag link is a heavy-duty steering linkage rod with a center-to-center length of 31.000″. It uses a 1.654″ shaft diameter and taper pin threads of 7/8-14. The ends are non-replaceable and identical. This rod is designed for Kenworth trucks, built to restore proper geometry and minimize steering play.

Specifications

Enhance your truck's steering system with the Automann USA Drag Link 463.DS5922A from Wofford Truck Parts. Specifically designed for Kenworth and Peterbilt trucks, this high-quality aftermarket part ensures durability and superior performance. The drag link features a center-to-center length of 31.000”, a 1.654” shaft diameter, and male threading with a 1-1/8”-12 (RH) shaft side thread. The taper pin measurements include a minor diameter of 1.080”, a major diameter of 1.220”, a length of 1.120”, and a thread size of 7/8”-14. Built to exact specifications, it offers a precise fit and dependable function, making it an essential component for maintaining the steering efficiency and safety of your heavy-duty truck. Trust Automann USA and Wofford Truck Parts for reliable aftermarket solutions.

Drag Link 31.000in C to C Kenworth
Kenworth T460/ T600/ T660/ T700/ T800/ T2000
Peterbilt 365/ 367/ 384 / 386
LH of RH side Try 463.DS5960

Applications Kenworth Peterbilt
C to C 31.000”
Type N-S
E to E (A) 14.500”
Shaft Dia. (A) 1.654”
Male/Female Male
Shaft Side Thread (E) 1-1/8”-12 (RH)
Taper Pin Minor Dia.-1 (B) 1.080”
Taper Pin Major Dia.-1 (C) 1.220”
Taper Pin Length-1 (D) 1.120”
Taper Pin Thread-1 (E) 7/8”-14
Make Kenworth

Weight

22.5 lbs

Notes

LH fof RH side Try 463.DS5960 but Verify with OEM Number

Compatibility

Kenworth T2000 (1997-2010)
Kenworth T600 (no specific years provided)
Kenworth T660 (2007-2017)
Kenworth T700 (no specific years provided)
Peterbilt 365 (no specific years provided)
Peterbilt 367 (2007-present)
Peterbilt 384 (2007-2016)
Peterbilt 386 (2005-2016)
