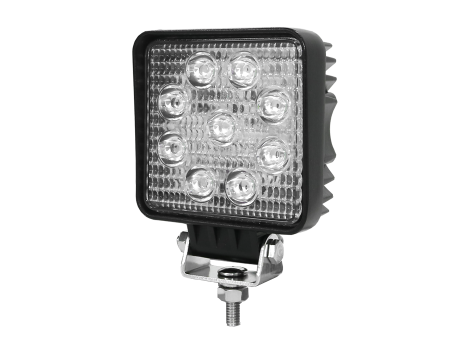

High Output Mini Square Spot Light

The HD36009-3S High Output Mini Square Spot Light from Heavy Duty Lighting, sold by Wofford Truck Parts, delivers compact and focused brilliance with a sophisticated design built for the toughest conditions.

• Compact but Powerful – Delivers a potent 1600 lumens through nine high-output 3 W SMD LEDs, producing a sharp spot beam ideal for precisely directed illumination.

• Robust Build – The housing features powder-coated die-cast aluminum construction, paired with an impact-resistant polycarbonate lens, a stainless-steel mounting bracket, and conformally coated electronics for superior durability.

• Professional Specs – Its compact size of 3.54″ × 4.6″ × 1.91″ provides installation versatility. Rated IP67 and IP69K, it resists dust, high-pressure washdown, and hazards, with a shock tolerance up to 20G.

• Wide Electrical Range – Compatible with 9–32 V DC systems, drawing 1.89 A at 12 V and 0.99 A at 24 V, making it ideal for diverse vehicles and machinery.

• Global Certifications – Complies with ECE R10, CE, and RoHS standards, and features conformed electronics for reliable field performance.

Whether mounted on trucks, agricultural gear, or construction equipment, the HD36009-3S excels in compact, high-intensity visibility where precision and ruggedness matter.
