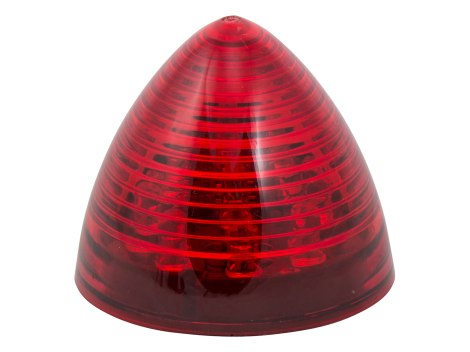

Beehive Clearance Marker Light

The Heavy Duty Lighting HD20309R is a 2" red beehive LED clearance/ID marker built for long service. Its sealed, ultrasonically welded polycarbonate lens and housing resist impacts and moisture, while a standard PL2 connector simplifies retrofit installs. Running 7.5–14 VDC with a low 60 mA draw, it’s non-polarity sensitive and ideal for cabs, corners, and trailer markers. Dependable visibility, fast installation—backed by Wofford Truck Parts.

Heavy Duty Lighting Part No: HD20309R

$7.69

Specifications

Upgrade visibility and durability with the HD20309R beehive LED clearance/marker from Heavy Duty Lighting. This 2" round red lamp uses 5mm LEDs in a compact beehive profile that fits standard grommet mounts. The lens and housing are impact-resistant polycarbonate, sealed and ultrasonically welded to prevent water intrusion. Electronics are conformally coated for added protection. It operates from 7.5–14 VDC with approximately 60 mA draw and is non-polarity sensitive for easy wiring. The industry-standard PL2 two-pin connection supports quick replacements on trucks and trailers. Use as a clearance or ID light to refresh aging incandescent beehives with reliable LED performance. Sold and supported by Wofford Truck Parts.

Weight

0.45

Compatibility

Kenworth Current Models (as of 2025):
C500 (1972–present), K270/K370 (2013–present), T170/T270/T370 (2008–present), T440 (2011–present), T470 (2010–present), T680 (2013–present), T800 (1986–present), T880 (2014–present), W900 (1961–present), W990 (2018–present)

Peterbilt Model Range:
Medium-duty: Model 220 COE (2011–present), Models 535/536/537 (2021–present), Model 548 (2021–present); Heavy-duty: Models 365/367 (2006–present), 379 (1987–2007), 389 (2007–2025), 520 COE (2016–present), 567 (2013–present), 579 (2012–present), 589 (2023–present)

International 9000 Series (Navistar):
9370 (1989–1993), 9400 (1990s), 9200, 9100, 9900 (late 1990s models)

Alternative Part Numbers

Heavy Duty Lighting HD20309R
G3092 (Hi-Count 2" Red Beehive, LED)
PTL3309R (2" Round Red Beehive LED)
3075 (2" Red Beehive LED, PL-10)
30276R (2" Red Beehive LED)
