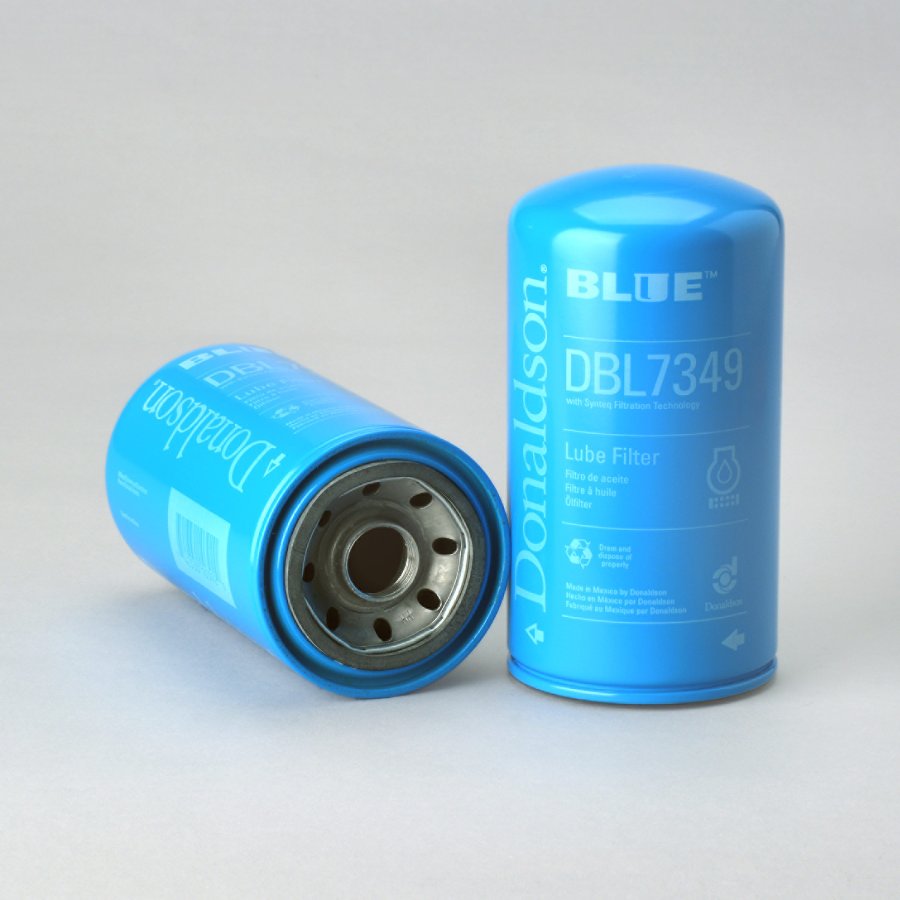

Donaldson Company Oil Filter Part No: DBL7349
$21.07
Oil Filter DBL7349 ensures greater efficiency and higher contaminant holding capacity. This engine oil filter removes over 90% of contaminants 10 microns or larger, outperforming standard cellulose filters, which typically remove 50% or less. With twice the contaminant holding capacity, this lube filter offers a longer filter life and directly replaces standard filters. Trust Donaldson oil filters for superior filtration performance and extended engine protection.
Specifications
Donaldson Blue® lube filters are designed specifically for extended maintenance programs.
- Proven Synteq™ – media delivers greater efficiency and higher contaminant holding capacity.
- Removes more than 90% of contaminants 10 microns or larger (cellulose filters typically remove 50% or less).
- Twice the contaminant holding capacity of standard cellulose filters – for longer filter life.
- Direct replacements to standard filters – no system modifications.
- LUBE FILTER, SPIN-ON FULL FLOW DONALDSON BLUE
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-16 UN
Length 6.85 inch (174 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 15 micron
Efficiency Test Std ISO 4548-12
Media Type Synteq
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Brand Donaldson BLUE®
Thread Size 1-16 UN
Length 6.85 inch (174 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 15 micron
Efficiency Test Std ISO 4548-12
Media Type Synteq
Collapse Burst 100 psi (6.9 bar)
Type Full-Flow
Style Spin-On
Brand Donaldson BLUE®
Weight
1.42
Compatibility
Dodge 5.9L Diesel (1989-2007)
Dodge 6.7L Diesel (2007-2023)
Cummins 4B and 6B Series engines (years not specified)
Alternative Part Numbers
- OEM: Donaldson DBL7349
- <br />
- Baldwin BD7317
- Baldwin BT7349
- Blaw Knox 16482100
- Carquest 84620XE
- Carrier Transicold 300046300
- Carrier Transicold 300046300P12
- Donaldson ELF7349
- Donaldson P558615
- Fleetguard LF16035
- Fleetguard LF3552
- Fleetguard LF9028
- Foden Y03753603
- Fram HPH3976A
- Hitachi 76192087
- Hyundai 11E170140
- JCB 333Y7453
- Kobelco YN50VU0001DA
- Luber-Finer LFP780XL
- Napa 7620XE
- Samsung 991290710
- Tata 252718130145
- Tata 278618139902
- Tata 278618999976
- Tata 5285612
- Vermeer 103004001
- Wix 57620XE
