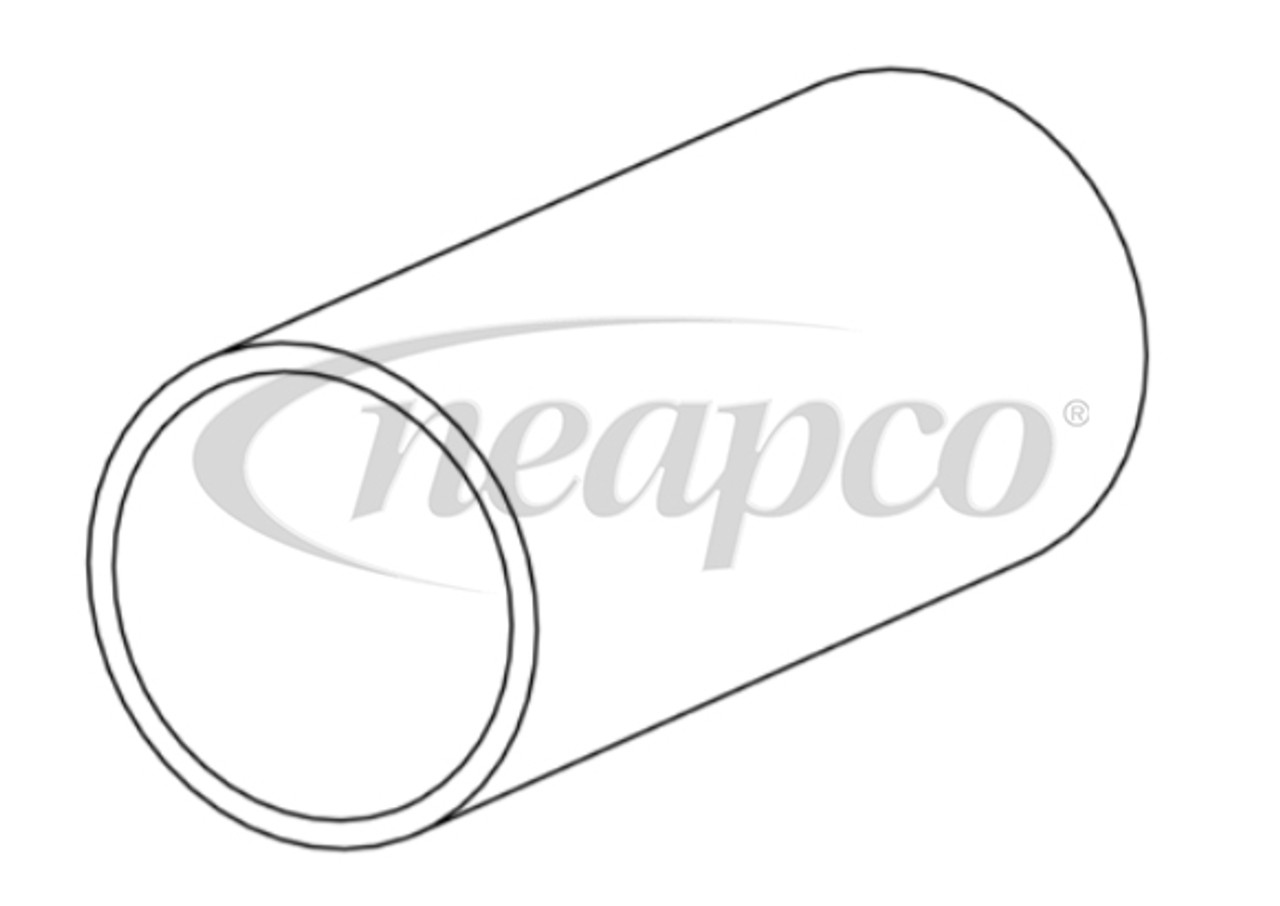

DRIVE SHAFT TUBING (2.50 X .08)
The N20-30-22-84 Drive Shaft Tubing from Neapco (sold by Wofford Truck Parts) is DOM steel tubing with an outside diameter of 2.50 in and a wall thickness of 0.083 in, cut to 84 in. Produced to driveline tolerances for critical-speed and strength performance, it’s suitable for driveshaft builds and repairs in commercial vehicle drivelines. Manufactured in the U.S., it’s a direct OEM-grade tubing option for professional driveline service shops.
$76.25
Specifications
The Neapco N20-30-22-84 is heavy-duty driveshaft tubing intended for use in commercial driveshaft assemblies and driveline repairs. Key specifications: OD = 2.500 in, wall = 0.083 in (DOM / welded option listed), length = 84.000 in. Neapco publishes this part in its driveline catalog and vendors list a unit weight around 18.9 lb depending on finish and DOM vs. welded variant. DOM construction and strict manufacturing tolerances help control critical speed and tube runout for safe, vibration-free operation when paired to properly rated U-joints and yokes. Use this tubing when fabricating or repairing driveshafts that call for the 2.50×0.083 specification; verify joint fit, tube centrelines and critical-speed limits in your driveline design.
Weight
25
Compatibility
Alternative Part Numbers
20-30-22-10800
20-30-22-7400
20302210000
20302210800
ND20-30-22-108
ND203022108
P20-30-22-10800
20-30-22-7400
20302210000
20302210800
ND20-30-22-108
ND203022108
P20-30-22-10800
