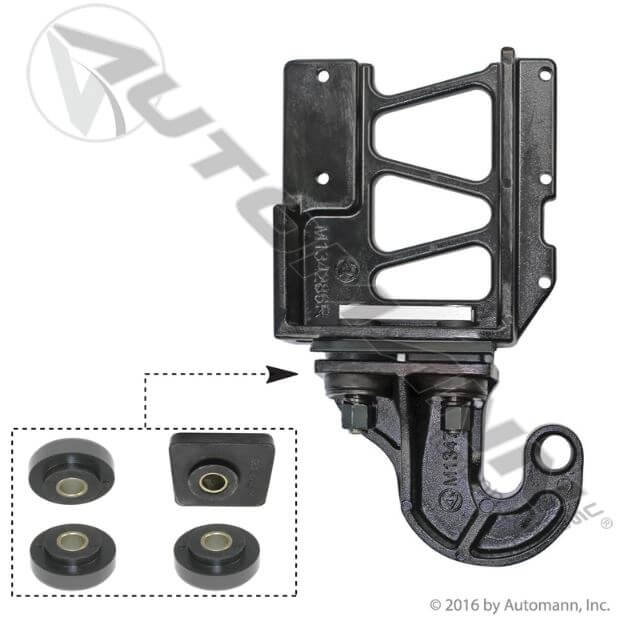

Hood Pivot Assembly RH
Automann Hood Pivot Assembly RH M134730R is precision-engineered assembly ensures smooth and reliable pivot action for your Peterbilt hood, contributing to ease of operation and long-lasting durability. Designed to meet fleet standards, the M134730R includes essential components such as the M134286R Hood Pivot Bracket, M134702 Hood Pivot Bolt Lock Channel, and other crucial Peterbilt hood parts. Compatible with Peterbilt models 377, 378, and 379, this assembly maintains the structural integrity of your truck’s front end.
$467.80
Specifications
Fleet Standard
Kit Includes:
M134286R Hood Pivot Bracket RH Peterbilt x1
M134702 Hood Pivot Bolt Lock Channel Peterbilt x1
M134708R Lower Hood Pivot RH Peterbilt x1
M4652 Shackle Bolt IHC x2
M13415 Hood Bushing Peterbilt x3
M13416 Hood Bushing Peterbilt x1
FDW12134 Fender Washer 1/2in X 1-3/4in x2
MUBW144 U Bolt Washer 1/2in x2
LW103 Lock Washer 1/2in Stanlok x2
M134163 Hood Pivot Plate Peterbilt x1
DN1 Deep Nut 1/2in 20GR5 x2
Kit Includes:
M134286R Hood Pivot Bracket RH Peterbilt x1
M134702 Hood Pivot Bolt Lock Channel Peterbilt x1
M134708R Lower Hood Pivot RH Peterbilt x1
M4652 Shackle Bolt IHC x2
M13415 Hood Bushing Peterbilt x3
M13416 Hood Bushing Peterbilt x1
FDW12134 Fender Washer 1/2in X 1-3/4in x2
MUBW144 U Bolt Washer 1/2in x2
LW103 Lock Washer 1/2in Stanlok x2
M134163 Hood Pivot Plate Peterbilt x1
DN1 Deep Nut 1/2in 20GR5 x2
- RH Lower Pivot Assembly, Includes (3) M13415, (1) M13416
Weight
6.1 lbs
Compatibility
Peterbilt 357 (1986-2007)
Peterbilt 377 (1986-2000)
Peterbilt 378 (1986-2007)
Peterbilt 379 (1987-2007)
Alternative Part Numbers
OEM: Peterbilt 13-04730R
Automann M134730R
Fleetrun FR-BODY435
Peterbilt 01-12440
Peterbilt 01-12441
Peterbilt 0112440
Peterbilt 0112441
Peterbilt 130-4730R
Peterbilt 1304730R
Peterbilt 1304730RRT
Peterbilt 13-04730R
Automann M134730R
Fleetrun FR-BODY435
Peterbilt 01-12440
Peterbilt 01-12441
Peterbilt 0112440
Peterbilt 0112441
Peterbilt 130-4730R
Peterbilt 1304730R
Peterbilt 1304730RRT
Peterbilt 13-04730R
