Specifications

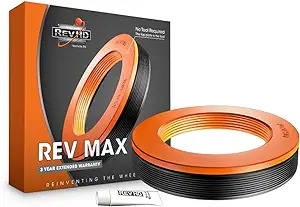

RevHD seals offer a wider O.D. and a wider I.D.  providing more surface contact area for both the

hub bore and the spindle shoulder. In addition, our seals have more internal sealing points.
  • Can be used with oil or grease hubs
  • Can be installed with any flat instrument
  • Have a unique Flex Design to help prevent cocked seals
  • The top plate protects the seal from impact & brake heat
  • Wider ID & OD for greater contact coverage
  • Free tube of Seal Extend in every box
  • Built for off-road and other Severe Duty applications
  • More internal sealing points
  • Seal lips run on a polished surface
  • Packaged for longer shelf life
Dimensions O.D. 4.840, I.D. 3.500
Steer 12,000 lbs
Weight
5
Notes
REV MAX PREM STEER SEAL (383-0236, 380001A, 35058)

Compatibility

Freightliner
FLD120 (1990s–2000s)
Columbia (2000s–2010s)
Cascadia (2000s–present)
International
4300 Series (1990s–present)
4400 Series (1990s–present)
Volvo
VNL Series (1990s–present)
Peterbilt
379 (1990s–2007)
389 (2008–present)
Kenworth
T800 (1990s–present)
W900 (1990s–present)
Mack
CH Series (1990s–present)
CX Series (2000s–present)
Western Star
4900 (1990s–present)
5700 (2000s–present)


Alternative Part Numbers

  • Chicago Rawhide/SKF 35058
  • Chicago Rawhide/SKF 35059
  • Chicago Rawhide/SKF 35066
  • Chicago Rawhide/SKF 35103
  • Conmet 10045885
  • Meritor MER0236
  • National 370001A
  • National 380001A
  • Stemco 308-0836
  • Stemco 382-8036
  • Stemco 383-0136
  • Stemco 383-0236
