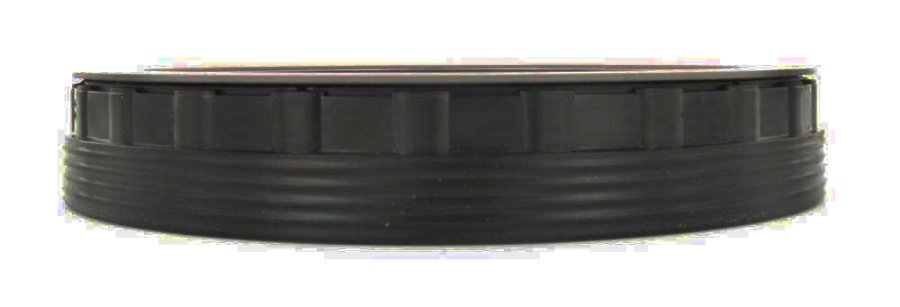

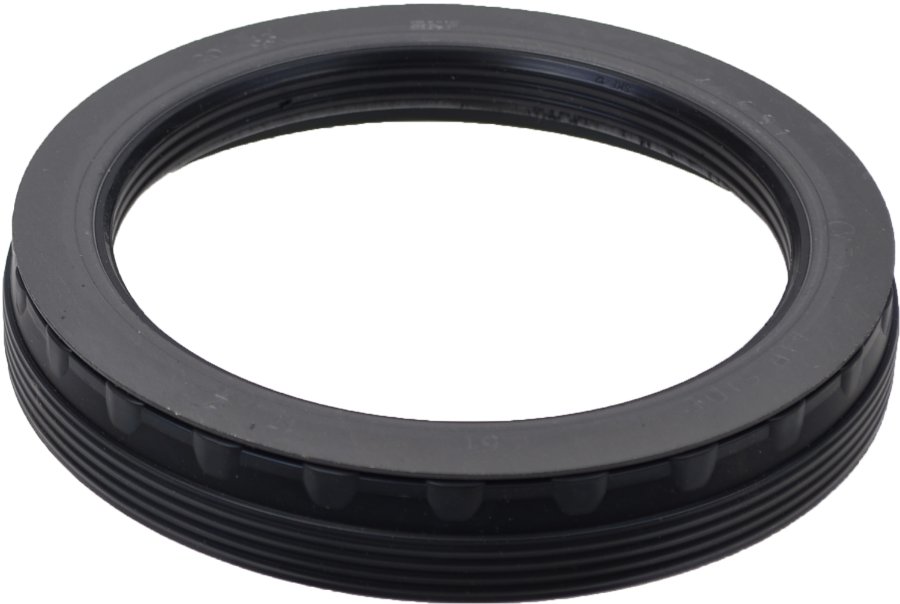

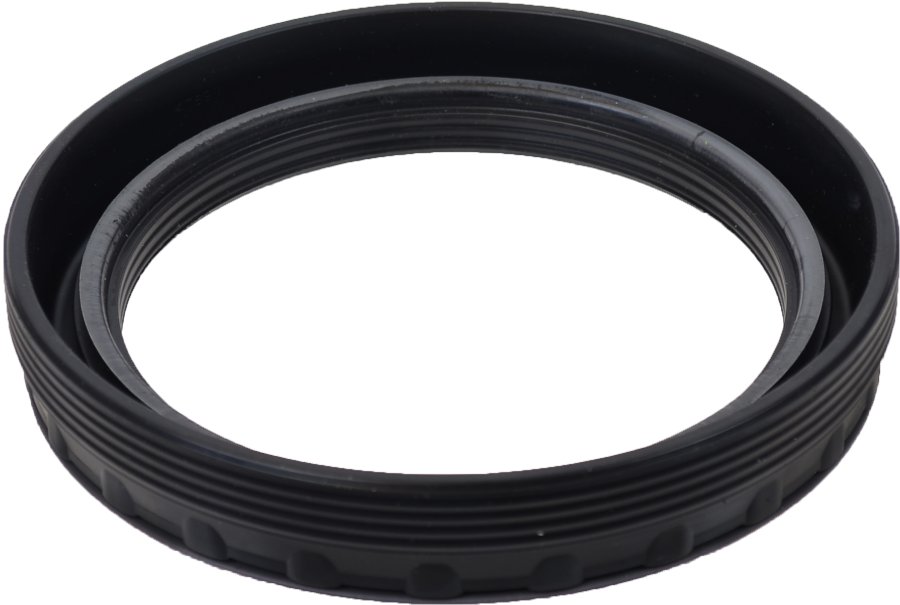

SKF Scotseal PlusXL Seal Part No: 47691

$51.30

The SKF Scotseal PlusXL Seal 47691 is a premium drive axle wheel seal engineered for heavy-duty trucks. Featuring advanced HNBR elastomer and a unitized four-lip design, it delivers superior sealing performance against contaminants while extending service life under harsh road conditions. This hand-installable seal enhances lubrication retention and minimizes maintenance intervals for demanding fleet operations.

Specifications

The Scotseal PlusXL design with extended life capabilities is the SKF premium performance seal, offering maximum sealing life under virtually all driving conditions. The new high temperature, synthetic lubricant friendly material of the new Scotseal PlusXL, Hydrogenated Nitrile Butadiene Rubber (HNBR), is an excellent choice for frequent braking applications. HNBR elastomeric material provides heat resistance up to 300 degrees F and broad compatibility with today's synthetic lubrication fluids. The unsurpassed exclusion properties allow the Scotseal PlusXL to perform in very harsh conditions. The new Scotseal PlusXL with the unique hand-installable design includes a fat footprint ensuring stability on the shaft. SKF seals have been on the road for more than a hundred years, keeping lubricants in and contaminants out. All SKF products meet or exceed test requirements to ensure the longest life possible.

Shaft:4.76700019836426
OD:6.32399988174438
Width:1.0349999666214
Bore:6.30800008773804

Weight

0.840

Compatibility

Autocar LLC.: 2002–2018
Blue Bird: 1997–2018
Caterpillar: 2012–2017
Chevrolet: 1984–2009
Crane Carrier: 1998–2017
Ford: 1990–2018
Freightliner: 1991–2018
GMC: 1984–2009
Hino: 2005–2018
International: 1995–2018
Isuzu: 2005–2011
Kenworth: 1995–2018
Mack: 1995–2018
Peterbilt: 1995–2018
Sterling Truck: 1999–2010
Terex / Terex Advance: 2007–2018
Thomas: 2000–2018
Volvo: 1996–2018
Western Star: 1995–2018
