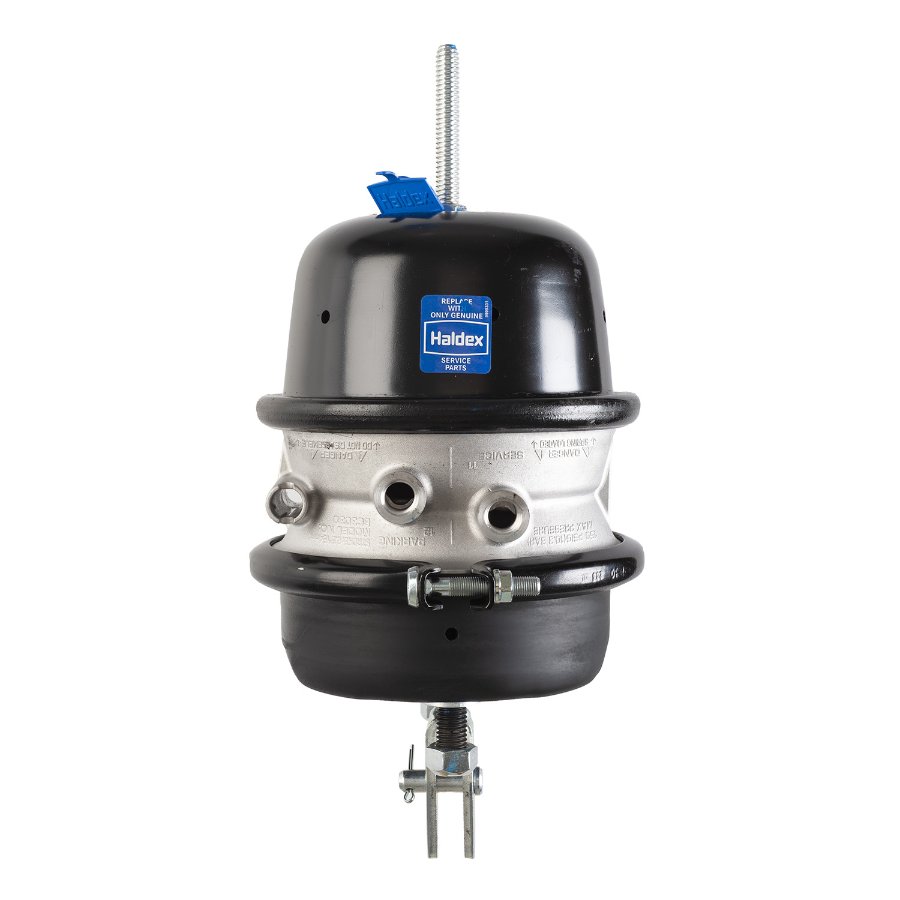

Haldex Brake Systems Air Brake Spring Brake Part No: GC3030CW
$105.99
Upgrade your spring brakes on trucks with the Haldex Air Brake Spring Brake. Haldex innovates brake solutions for heavy vehicles worldwide, ensuring safer roads for generations. Trust Wofford Truck Parts for reliable safety parts!
Specifications
Haldex is both an industry pioneer and market leader in air brake actuators. Many of the designs and features you have come to expect are Haldex innovations. Haldex offers a complete family of actuators designed and built to the same high standards. The GoldSeal family includes 13 different sizes ranging from the popular 3030 2.5” stroke to the 1624 2.25” stroke and 3636 3.0” stroke. The only truly sealed double diaphragm spring brake on the Market. Ice melts, rain dries, but corrosion never takes a day off. In time, water, de-icers, oils and other elements eat away at your actuators. LifeSeal+ ® 2.5” and 3.0” stroke models are engineered smart, built strong, and road-tested tough for dependable, durable performance that outlasts ordinary spring brakes.
- Combination with Welded Clevis - Size 3030
A = Length from mounting bracket to end of Spring Housing
B = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clampband
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Stroke Type Standard
Available Stroke 2.50", 64mm
A 9.0", 229mm
B 6.8", 173mm
C 8.3", 211mm
D 10.2", 259mm
J 1.00"
K 2.25"
Weight 21.3 lbs. , 9.7 kg.
Quantity 1
B = Length of Piggyback
C = Dimension at rolled Spring Housing flange
D = Dimension at Service Clampband
E = Stud Spacing 4.75 in. (120.7mm)
J = Pushrod Length from face of Service Housing
K = Distance to Clevis Pin centerline from face of Service Housing
S1 = Service Clampband position (0°)
T = Air Port position (90°)
Stroke Type Standard
Available Stroke 2.50", 64mm
A 9.0", 229mm
B 6.8", 173mm
C 8.3", 211mm
D 10.2", 259mm
J 1.00"
K 2.25"
Weight 21.3 lbs. , 9.7 kg.
Quantity 1
Weight
21.7000
Compatibility
Combination with Welded Size 3030
Alternative Part Numbers
- Anchorloc 1393030084
- Anchorloc 1393030106
- Anchorloc 1393030114
- Anchorloc 1393030410
- Anchorloc 1393030411
- Anchorloc 1393030412
- Anchorloc 1393030413
- Anchorloc 1393030414
- Anchorloc 1393030415
- Anchorloc 1393030416
- Anchorloc 1393030417
- Anchorloc 1393030418
- Anchorloc 1393030419
- Anchorloc 1393030428
- Anchorloc 1393030429
- Anchorloc 1393030430
- Anchorloc 1393030431
- Anchorloc 1393030432
- Anchorloc 1393030433
- Anchorloc 1393030434
- Anchorloc 1393030435
- Anchorloc 1393030482
- Anchorloc 1393030483
- Anchorloc 1393030484
- Anchorloc 1393030486
- Anchorloc 1393030528
- Anchorloc 1393030529
- Anchorloc 1393030530
- Anchorloc 1393030531
- Anchorloc 1393030532
- Anchorloc 1393030533
- Anchorloc GC3030CW
- Bendix K020826
- Bendix K022868
- Bendix NT3030STD-WC
- Fleetrite FLT3030SCB20
- Haldex 1393030568
- Haldex 1393030569
- Haldex G753276D30
- Haldex G763276D30
- Haldex S1393030084
- Haldex S1393030085
- Haldex S1393030106
- Hendrickson 20714872
- Hendrickson 20714873
- Mack 19QE4148P4
- Mack 19QE4148P5
- Mack 19QE4148P6
- Mack 19QE498P15
- Mack 19QE498P32
- Mack 19QE498P33
- MGM Brakes 3430951
- RANGER BRAKE 3030-WCR
- Ryder V42 3232951
- S&S Truck Parts BER-NT3030STD-WC
- TSE Brakes 3030TNW2-2998
- Volvo 11398066
- Volvo 20714872
- Volvo 20869154
- Volvo 22055846
- Volvo 22055847
- Volvo 22372832
- Volvo 22372833
- Volvo 22394868
- Volvo 22398066
