Automann Torque Rod 25.375" IHC/Ford Part No: TMR533

$121.96

The TMR533 Torque Rod offers a direct-fit replacement for IHC and Ford trucks with the IROS or Corporate 4-spring transverse suspension configuration. With a center-to-center length of 25.375″ (25-3/8″) and non-rebushable ends, this heavy-duty arm from Wofford Truck Parts ensures axle wrap prevention and superior torque control under load. Built to exacting standards, it reduces frame-twist and improves ride quality compared to worn factory rods.

Specifications

For heavy-duty IHC and Ford trucks equipped with IROS Air or Corporate four-spring transverse suspensions, the TMR533 Torque Rod (25.375″) from Wofford Truck Parts is engineered to restore optimum torque control and alignment under serious load. With a center-to-center measurement of 25.375″, the rod features non-rebushable straddle-end mounts, providing a robust, maintenance-friendly solution for high-stress suspension systems. OEM cross-references such as 358088C1, 3548381C1, 501565C2, and 4C4Z46 highlight its compatibility.

By using premium materials and strict tolerances, this torque rod helps minimize axle wrap, reduce bushing wind-up and extend the life of related suspension components. Installation is straightforward, thanks to its exact fit dimensions and compatible mount pattern. Whether you're servicing a fleet or performing a one-off repair, the TMR533 delivers a reliable upgrade for frame-to-axle linkage.

IHC and Ford IROS Air and Corporate 4 SpringTransverse
Non-Rebushable

Applications Ford International
Shaft Dia. (A) N/A
Side A Straddle
Side A Bushing Non-Rebushable
Side A Angle 0
Side B Straddle
Side B Bushing Non-Rebushable
Side B Angle 0

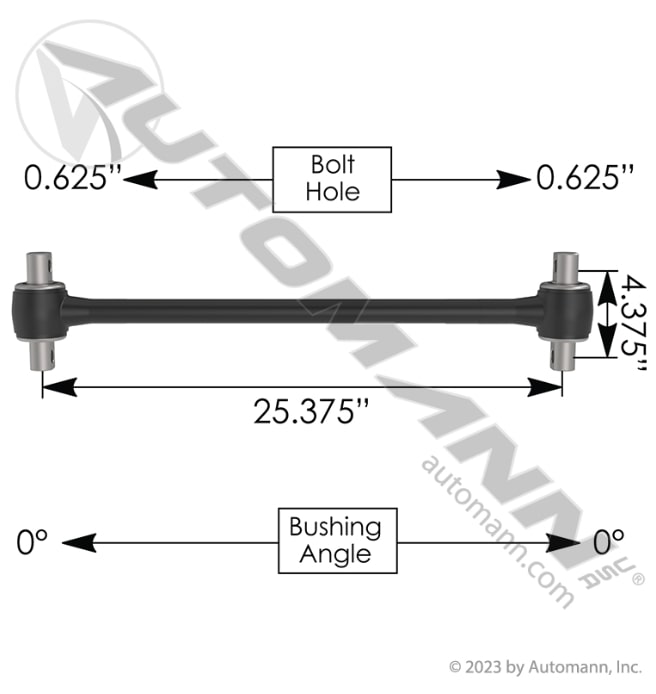

C to C 25-3/8"

Weight

13.27 lbs
