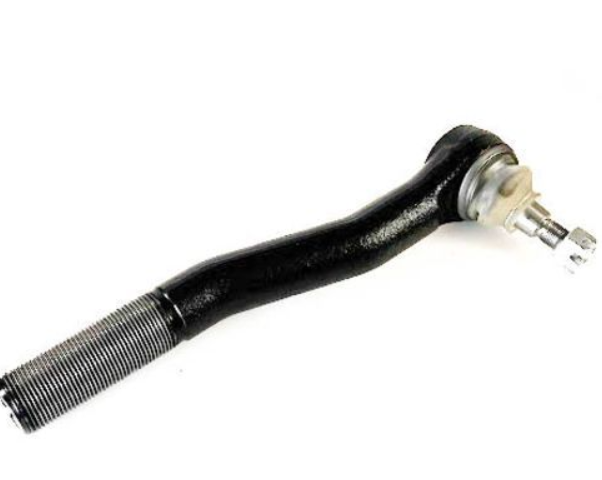

Tie Rod End
The Automann 462.ES3204L Tie Rod End is a left-hand steering component with a center-to-end length of 11.890″, rod outer diameter of 1-3/8″, and 5/8-18 stud thread. It features a 12 LH thread pitch, type 4 taper, and is engineered to match OEM fit and function for Dana, Euclid, IHC, Meritor, and TRW systems.
$112.33
Specifications
The Automann 462.ES3204L Tie Rod End is a left-hand (LH) steering linkage component designed to meet or exceed OEM standards. It provides an 11.890″ center-to-end dimension, with a rod outer diameter of 1-3/8″ and a 5/8-18 stud thread. The taper geometry is type 4, with a taper minor diameter of 0.762″ and major of 0.874″ over a 0.896″ taper length; the height of taper is 2.382″. It features LH thread pitch = 12, making it suitable for specific left-side steering applications. This tie rod end is cross-referenced with multiple OEM numbers (see list below) and is used in steering systems of trucks using Dana, Euclid, IHC, Meritor, and TRW components. Its design ensures reliable, backlash-free steering performance and assured fit in replacement or repair operations.
Weight
16
Compatibility
Alternative Part Numbers
Dana 080TR116
Dana 80TR116
Euclid E10007
Euclid E10148
IHC 1668224C91
Meritor R230558
TRW ES3204L
TRW L20LV5264A12
TRW L20LV5264A13
TRW L20LV8277A12
Dana 80TR116
Euclid E10007
Euclid E10148
IHC 1668224C91
Meritor R230558
TRW ES3204L
TRW L20LV5264A12
TRW L20LV5264A13
TRW L20LV8277A12
