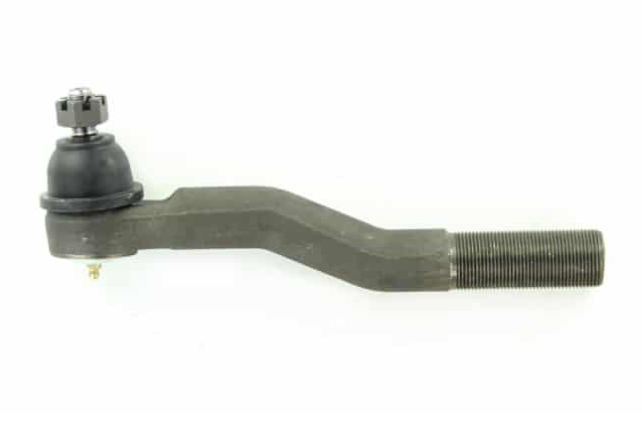

AUTOMANN Tie Rod End RH Part No: 462.ES3205R

$112.33

The Automann 462.ES3205R is a right-hand tie rod end featuring a 1-3/8″ rod outer diameter, RH 12 thread, and 11.890″ center-to-end length. It incorporates a type-4 taper (0.762″ minor, 0.874″ major, taper length 0.896″), with a drop of 1.083″, and a 5/8-18 stud. It’s engineered to meet OEM geometry and is cross-referenced to major brands like Dana, Euclid, IHC, and Meritor.

Specifications

The Automann 462.ES3205R is a high-precision right-hand tie rod end built for heavy-duty steering systems. It provides a 1-3/8″ rod outer diameter and RH 12-thread pitch on the rod end. Its center-to-end (C–E) dimension is 11.890″, with a drop of 1.083″, ensuring correct alignment geometry in dropped tie rod assemblies. The taper section is a type-4 configuration: minor diameter 0.762″, major diameter 0.874″, taper length 0.896″, height 2.382″, which ensures a tight, reliable press fit in knuckle bores under load. The stud uses a 5/8-18 thread for connection to drag link or steering arm. Cross references show that this part replaces Dana 80TR117, Euclid E10149, IHC 1668225C91, Meritor R230559, and TRW ES3205R among others. It is commonly used in Dana I60S through I1200S steering applications. With durable construction and precise tolerances, the 462.ES3205R ensures accurate steering response and minimal play in commercial trucks and heavy-duty vehicles.

Weight

6.5
