King Pin Kit LH-RH Needle Bushing - 460.538

AUTOMANN King Pin Kit LH-RH Needle Bushing Part No: 460.538

$471.04

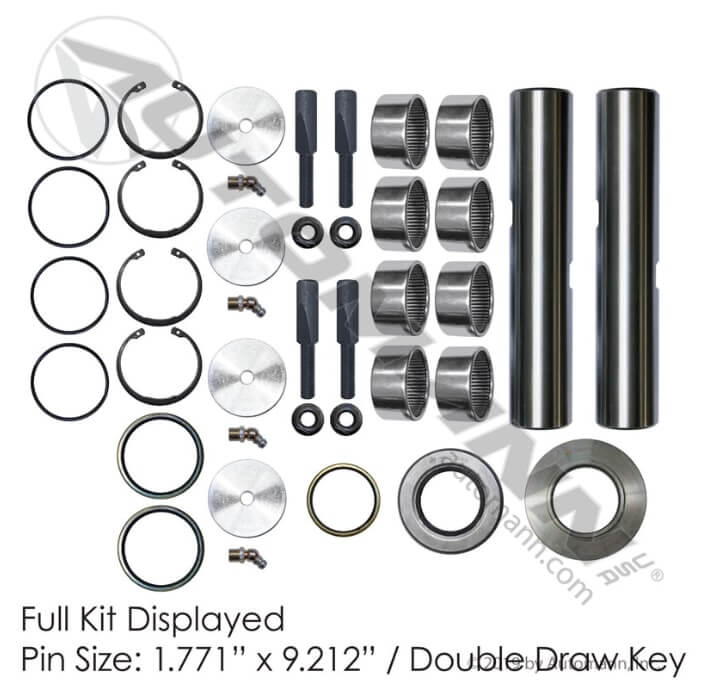

The Automann 460.538 King Pin Kit LH-RH features hardened double-draw pins and precision needle (bronze) bushings for low-friction oscillation. The kit includes washers, O-rings, thrust bearings, draw keys, nuts, and end caps (use with 460.523B & 460.539B) for full steering knuckle rebuild.

Specifications

The Automann 460.538 King Pin Kit LH-RH with needle bushings offers a complete rebuild solution for heavy-duty steering knuckles. The kit contains double-draw hardened king pins for both left and right sides, precision bronze needle bushings (low friction, high durability), thrust bearings, washers, O-rings, draw keys, nuts, and end caps. Its design allows for regeneration of steering geometry with minimal reaming, as the needle bushings help grip tolerances and reduce slop. The bushing outer diameter is 1.873″ and the kit pin length is 10.060″ nominal. The kit is meant to meet or exceed OEM standards, restoring proper steering pin-to-bushing contact, reducing wear, and improving longevity in knuckle assemblies.

Featuring Opposite Double Draw king pins that are hardened for extra strength and high durability
Needle bushing provides low friction oscillation and high load bearing capacity
Kit comes with washers, O-rings, thrust bearings, nuts, draw keys, end caps (where included) and zerks for complete install
Designed to meet OEM form, fit and function
Consist of, 1-460.523B, 1-460.539B
Can try use with 460.S17B and 460.S17F Shims

Applications Freightliner
Type DD
Bushing Type Bronze
OD 1.771"
Length 9.212"
Thrust Bearing 460.T523, 460.T539
Bushing 467.110
Make Freightliner
Remarks Use with 460.S17B and 460.S17F Shims
OEM # Freightliner(6073300019K), Stemco(K120A) , Spicer(KPK1002)

Weight

19 lbs
