Automann Air Spring Rolling Lobe Part No: AB1DK20D-9376
$177.82
The Automann USA Air Spring Rolling Lobe AB1DK20D-9376 is designed for Monaco Coach applications, providing superior load support and durability. This air spring features a rolling lobe type with a load capacity of 5100 lbs at 80 PSI and 6400 lbs at 100 PSI. With a natural frequency of 80 CPM and a design height of 8.00 inches, it ensures optimal performance. Available at Wofford Truck Parts.
Specifications
Automann’s premier air spring boasts the ability to maintain ride height. Engineered to meet OEM specification while minimizing vibration and load fluctuations. The Air Spring is guaranteed to ensure a smooth ride for driver and cargo alike. Enjoy a quiet and level ride experience with these long lasting Air Springs. Committed to Keeping Trucks Moving
- Quality raw material and manufacturer expertise to guarantee performance
- Plastic Base allows for optimized weight and cost savings
- Features OEM dimensioning for hassle-free assembly
- Resistant to oil, lubricants, and averse weather conditions
- Manufactured to be environmentally friendly and longer lasting
- OE Aftermarket
- lastic Base

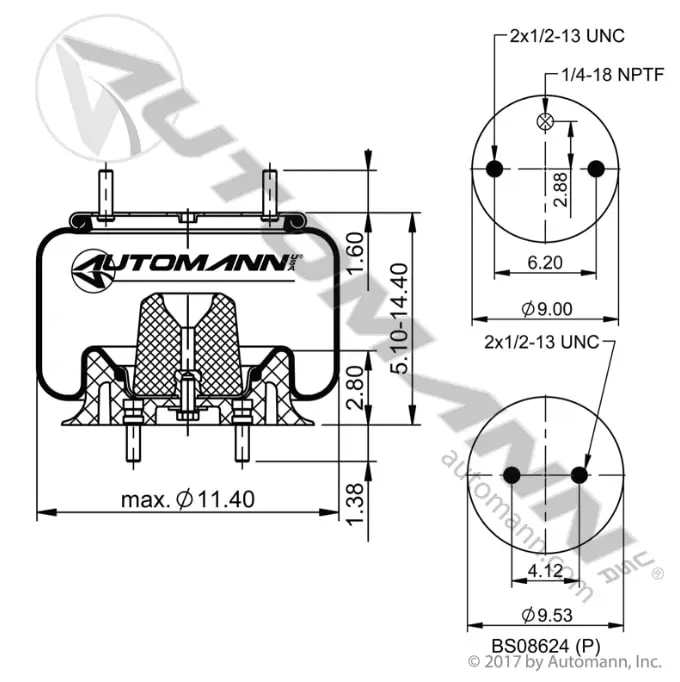

Type Rolling Lobe
Brand Automann Phoenix
Automann Bellows# 1DK20D
Contitech Bellows# 9 9-12
Load (Lbs) @80 PSI 5100
Load (Lbs) @100 PSI 6400
Natural Freq. (CPM) 80
Design Height (In) 8.00
Bottom Plate Type Plastic
Top Plate Hole/Stud Qty 3
Top Plate Dia. (A) 9.00
Top Plate C to C Dia. (B) 6.20
Bottom Plate Hole/Stud Qty 2
Bottom Plate Dia. (C) 9.53
Bottom Plate C to C Dia. (D) 4.12"
Bottom Part # BS08624
Bumper Yes
Bracket N/A
Min. Height 5.10
Max. Height 14.40
Max. Dia. 11.40
Compatibility
Alternative Part Numbers
- OEM: Firestone 1R11200
- AB1DK20D-9376
- Automann AB1DK20D-9376
- Firestone 1R11200
- Firestone 352-9376
- Firestone 452-9376L
- Firestone FS9376
- Goodyear 1R11-200
- Goodyear GY1R11200
