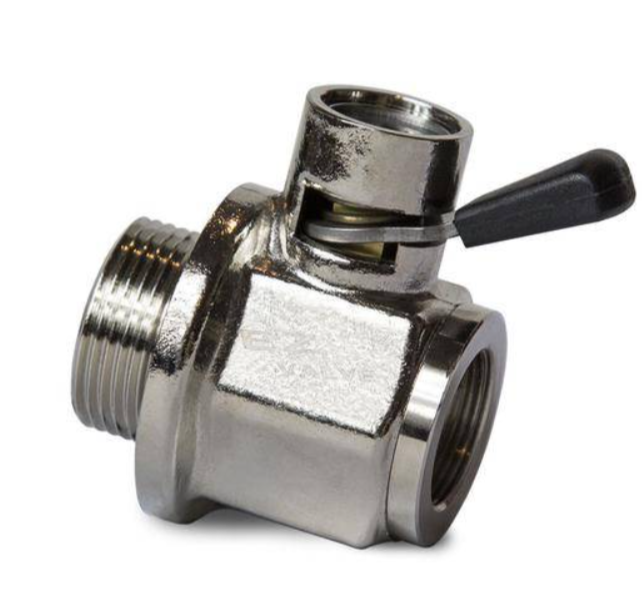

EZ Oil Drain Valve Part No: EZ-5
$36.66
The EZ-5 oil drain valve is a heavy-duty service upgrade that threads directly into oil pans using a 25mm-1.5 drain-plug port. Instead of removing a plug at each service, you lift the lever and turn it a quarter-turn to drain oil in a smooth, controlled stream, reducing spills and downtime. The nickel-plated forged brass body and Viton O-ring provide a tight seal, and optional hose ends can be attached for even cleaner draining. Available new through Wofford Truck Parts.
Specifications
Euclid EZ-5 Oil Drain Valve is designed for fleets and owner-operators who want safer, quicker oil service. The valve replaces the factory drain plug and uses a corrosion-resistant, nickel-plated forged brass ball-valve design that maintains full flow while draining. Operation is tool-free: lift the lever, rotate to open, and rotate back to lock shut. The embedded high-temperature Viton O-ring helps prevent seepage over long intervals, while the low-profile body suits tight oil-pan clearances. This model uses M25x1.5 threads and supports optional straight or 90° hose ends to route oil neatly into a container. Sold new by Wofford Truck Parts.
Weight
0.42
Compatibility
Alternative Part Numbers
- EZ-5
- FUMOTO FG-5
