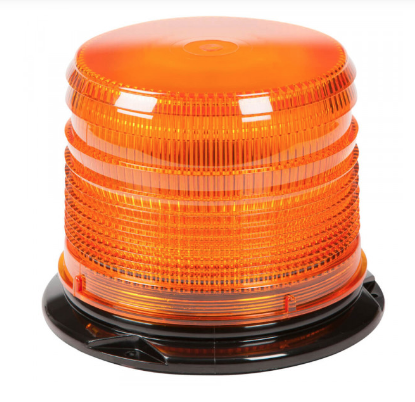

Grote Industries Permanent Mount, Class I, Amber Part No: 78033
$134.09
The Grote Industries LED Beacons with S-Link Synchronization 78033, sold by Wofford Truck Parts, are designed for durability and efficiency. Constructed from polycarbonate with an amber lens, these beacons operate at 12/24V and draw .5A. They are SAE J845 compliant, ensuring they meet stringent safety standards. The S-Link™ System allows for synchronization with up to six other units, enhancing their versatility. With 12 selectable flash patterns and a steady-on option, these beacons provide effective warning signals. The conformal coated circuit board protects the circuitry, ensuring long-lasting performance.
Specifications
The Grote Industries LED Beacons with S-Link Synchronization 78033, available at Wofford Truck Parts, are engineered for superior performance and durability in heavy-duty applications. These beacons feature a robust polycarbonate construction and an amber lens, providing high visibility and protection. Operating at 12/24V with a .5A draw, these beacons are SAE J845 compliant, meeting stringent safety standards. The S-Link™ System allows for synchronization with up to six other units, making them highly versatile. With 12 different selectable flash patterns in either of two phases, plus a steady-on option, these beacons offer effective and customizable warning signals. The circuit board is conformal coated to protect the circuitry from environmental factors, ensuring long-lasting performance. The beacons have a short dome shape with a height of 4.89 inches, a length and width of 6.39 inches, and an 18-inch wire length for easy installation. Designed to operate in temperatures ranging from -40°C to +55°C, these beacons are suitable for a wide range of environments. Backed by a 5-year warranty, the Grote Industries LED Beacons with S-Link Synchronization 78033 offer dependable performance and peace of mind.
Material: Polycarbonate
Color: Amber
Lens Color: Amber
Voltage: 12/24V
Amperage: .5A
Class: Class I
Gauge: 18 GA
Mounting Type: Permanent
Connection Type: Blunt Cut
Operating Temperature: -40°C to +55°C
Height: 4.89"
Length: 6.39"
Wire Length: 18"
Standards: SAE J845
VMRS: 034-006-056
Product Type: Beacon
Shape: Short Dome
Width: 6.39"
Warranty: 5 Years
S-Link™ System* synchronizing capabilities with up to six other units Allows for synchronization with other S-Link compatible products
12 different selectable flash patterns in either of two phases, plus steady-on
Circuit board is conformal coated to protect circuitry
12 different selectable flash patterns in either of two phases, plus steady-on
Circuit board is conformal coated to protect circuitry
Weight
1.62
