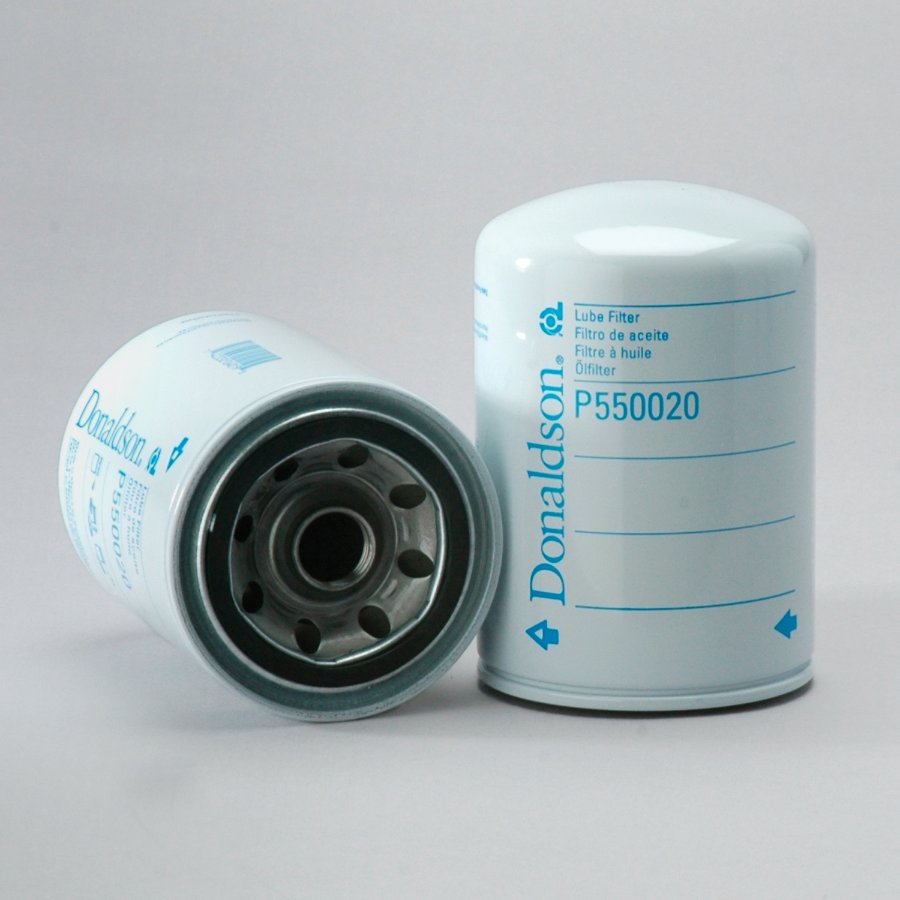

Donaldson Company Full Flow Screw-On Lubricant Filter Part No: P550020
$8.30
The Donaldson P550020 Full Flow Screw‑On Lubricant Filter provides essential oil filtration for heavy‑duty diesel truck and equipment engines. Its spin‑on design with 13/16‑16 UN thread makes installation quick and service easy. Featuring full‑flow performance with 99% efficiency at 40 microns, it captures harmful contaminants that can cause wear and damage. A built‑in bypass valve maintains oil circulation under varying conditions. Durable and reliable, this oil filter helps prolong engine life and maintain optimal lubrication.
Specifications
The Donaldson P550020 Full Flow Screw-On Lubricant Filter provides reliable oil filtration for heavy-duty truck and industrial engines. Its spin-on design ensures quick installation, while high-efficiency cellulose media captures up to 99% of contaminants to protect critical engine components. Equipped with bypass and anti-drainback valves, it maintains oil pressure and prevents dry starts. Durable construction supports long service life, and broad OEM cross references make replacement simple. Ideal for fleet maintenance, it helps extend engine life and ensures consistent, dependable lubrication performance.
Bypass Valve Setting HR:1.6 BAR
Type:Full-Flow
Media Type:Cellulose
Gasket ID:2.4 IN
Bypass Valve:Yes
Bypass Valve Setting LR:1.2 BAR
Primary Application:JOHN DEERE AR58956
Style:Spin-On
Outer Diameter:3.82 IN
Efficiency 99%:40 MICRON
Thread Size:13/16-16 UN
Gasket OD:2.8 IN
Length:140 MM
Type:Full-Flow
Media Type:Cellulose
Gasket ID:2.4 IN
Bypass Valve:Yes
Bypass Valve Setting LR:1.2 BAR
Primary Application:JOHN DEERE AR58956
Style:Spin-On
Outer Diameter:3.82 IN
Efficiency 99%:40 MICRON
Thread Size:13/16-16 UN
Gasket OD:2.8 IN
Length:140 MM
Weight
1.0200
Compatibility
JOHN DEERE AR58956, T19044
Alternative Part Numbers
- 1243MP
- 16017310V
- 51243MP
- 537984
- 85243MP
- 92243
- 92243
- 9613322
- AC DELCO-PF17
- ALCO-SP808
- AMERICAN PARTS-706
- BALDWIN-BT259
- BAUDOUIN-16017310V
- BERGERAT MONNOYEUR-E6605
- BIG A-706
- BLOUNT-537984
- BOBCAT-6511730
- CARQUEST-85243
- CASE/CASE IH-K200073
- CATERPILLAR-3I1089
- CHAMP-FP20
- CHAMPION-FP20
- CW243MP
- DELUXE-198
- FO3713
- FORD-9576P550020
- FRAM-PH20
- FREIGHTLINER-DNP550020
- GUD-Z32
- H17W09
- HASTINGS-LF340
- HENGST-H15W
- JOHN DEERE-AR58956
- KNECHT-AW143
- LFP20
- LUBER FINER-FP20
- MANN & HUMMEL-W9364
- NAPA-1243
- OC103
- P340
- PF28
- PH20
- PH20A
- T19044 variants
- W93640
- WD198
- WIX-51243
- WOODGATE-WGL678
- Z33
