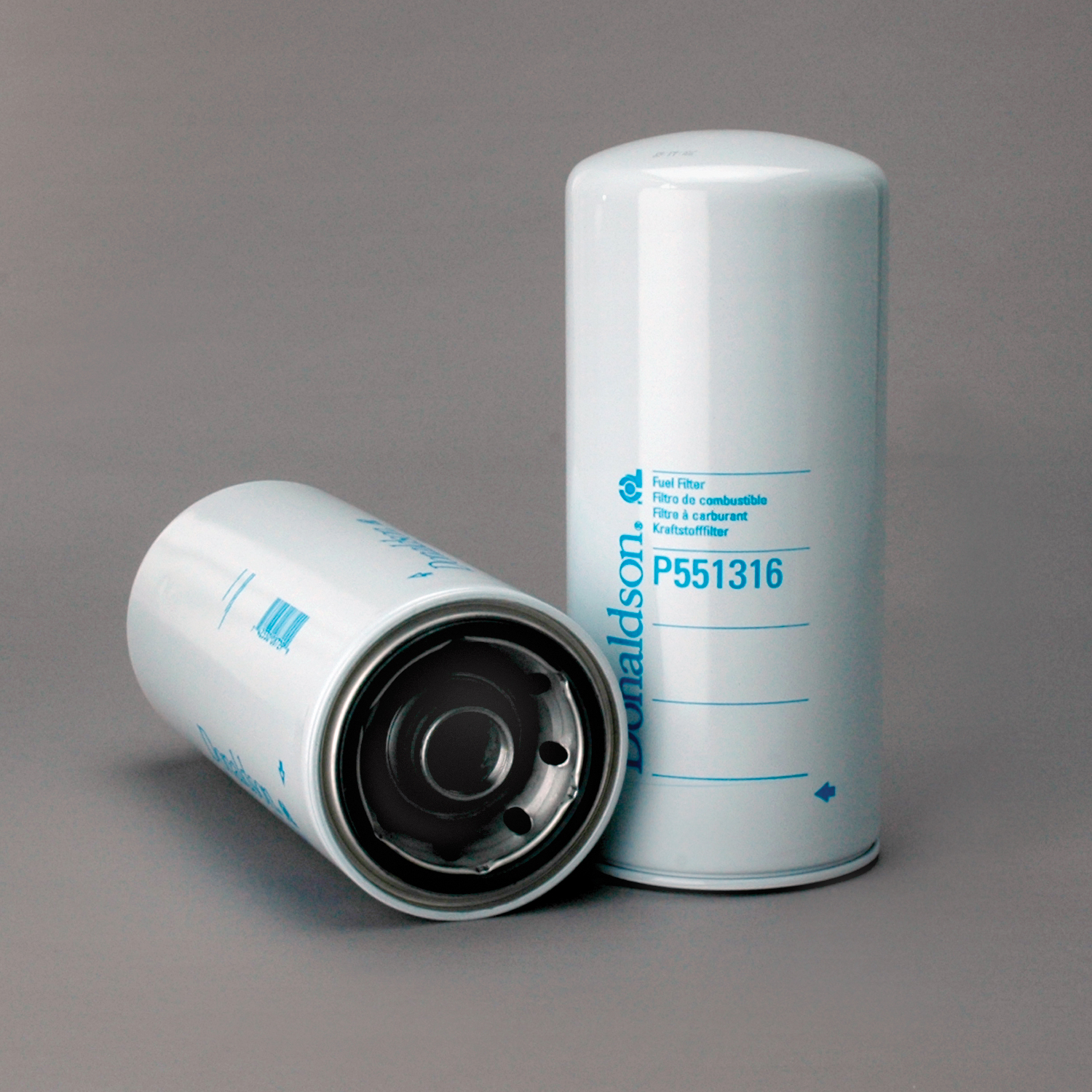

Donaldson Company Fuel Filter, Screw-On Part No: P551316
$58.81
The Donaldson P551316 screw-on fuel filter provides dependable fuel filtration for diesel engines, protecting injectors and fuel pumps from harmful contaminants. Its high-efficiency media captures fine particles and water while maintaining consistent fuel flow. The rugged spin-on design ensures quick installation and reliable sealing under harsh operating conditions. Ideal for heavy-duty trucks and commercial equipment, this filter helps maintain fuel system efficiency, reduce engine wear, and support consistent, reliable engine performance over time.
Specifications
The Donaldson P551316 screw-on fuel filter is engineered to meet the strict fuel cleanliness requirements of modern diesel engines. Its high-efficiency filtration media effectively removes fine particles and water that can damage injectors and fuel pumps. The robust steel housing withstands vibration, pressure, and harsh operating conditions common in commercial trucking. With its easy spin-on installation and reliable sealing, the P551316 ensures proper fuel flow, enhances engine reliability, reduces maintenance costs, and extends the service life of critical fuel system components in heavy-duty vehicles.
Efficiency Test Std: SAE J1858
Media Type: Cellulose
Gasket ID: 100.3 MM
Primary Application: CATERPILLAR 1R0755
Style: Spin-On
Outer Diameter: 135.2 MM
Efficiency 99%: 4 MICRON
Thread Size: 1 3/8-16 UN
Gasket OD: 110.5 MM
Efficiency 99.9%: 5 MICRON
Length: 12.13 IN
Media Type: Cellulose
Gasket ID: 100.3 MM
Primary Application: CATERPILLAR 1R0755
Style: Spin-On
Outer Diameter: 135.2 MM
Efficiency 99%: 4 MICRON
Thread Size: 1 3/8-16 UN
Gasket OD: 110.5 MM
Efficiency 99.9%: 5 MICRON
Length: 12.13 IN
Weight
1.8300
Compatibility
CATERPILLAR 1R0755
Alternative Part Numbers
- OEM: Caterpillar 1R0755
- <br/>
- Aftermarket Cross-Reference Numbers
- Baldwin BF7639
- Big A 95685
- Bucyrus V013569
- Carquest 86685
- Caterpillar 3890433
- Champion Laboratories LFF4102
- China Local STCX020
- Fleetguard FF5317
- Fleetrite FFR85317
- Fram P8430
- Hastings FF1090
- Kralinator F498
- Luber-finer LFF4102
- NAPA 3685
- Sandvik 61141061
- SF-Filter SK3354
- Sure Filter SFF1316
- Tim 1R0755
- VMC FF551316
- Wirtgen 2110145
- WIX 33685
- Woodgate WGF1755
