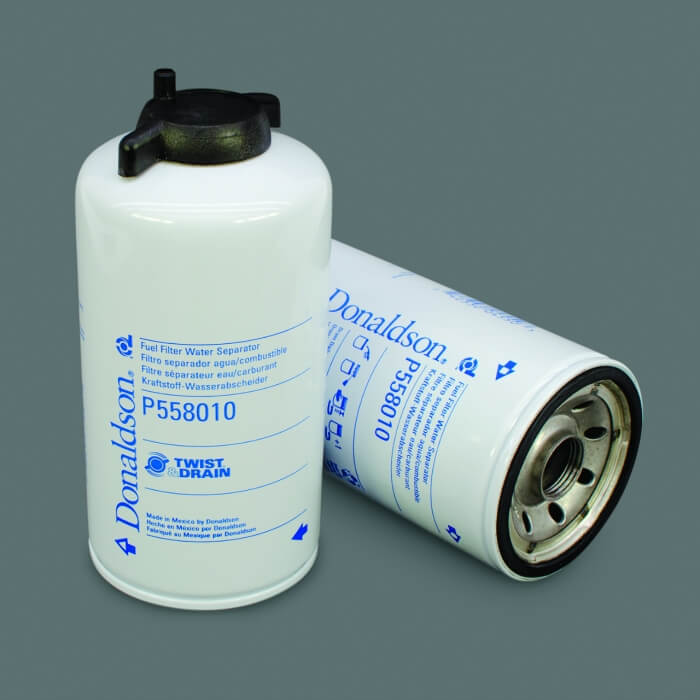

Donaldson Company Fuel Filter, Screw-On Water Separator, Twist & Drain Part No: P558010
$22.27
The Donaldson P558010 Fuel Filter Spin-On Water Separator Twist & Drain is engineered to deliver reliable diesel fuel filtration while removing harmful water contaminants. Built with high-efficiency cellulose media, it captures particles and separates emulsified water to protect fuel injectors and pumps. The Twist & Drain feature allows quick removal of collected water during maintenance. Designed for durability and consistent fuel flow, the P558010 supports dependable engine performance in demanding truck and equipment applications.
Specifications
The Donaldson P558010 Fuel Filter Water Separator provides dependable filtration and water removal for diesel engines operating in demanding environments. Featuring 20-micron filtration efficiency with 99% contaminant removal, it effectively captures harmful particles while separating emulsified water to prevent injector damage and corrosion. The Twist & Drain™ design allows technicians to quickly remove collected water without replacing the entire filter, improving service efficiency. Built with durable cellulose media and a heavy-duty spin-on housing, the P558010 ensures consistent fuel flow and long-lasting performance. It is commonly used in Detroit Diesel Series 60 engines and heavy-duty truck applications.
- WATER SEPARATOR SPIN-ON TWIST&DRAIN
Efficiency Test Std: SAE J1488, J1985
Type: Water Separator
Media Type: Cellulose
Gasket ID: 3.05 IN
Primary Application: DETROIT DIESEL 23512317
Style: Spin-On
Brand: Twist&DrainTM
Outer Diameter: 3.66 IN
Efficiency 99%: 20 MICRON
Thread Size: 1-12 UN
Notes: Not for Marine Applications
Gasket OD: 3.39 IN
Emulsified H2O Efficiency: 96 PERCENT
Length: 193.2 MM
Type: Water Separator
Media Type: Cellulose
Gasket ID: 3.05 IN
Primary Application: DETROIT DIESEL 23512317
Style: Spin-On
Brand: Twist&DrainTM
Outer Diameter: 3.66 IN
Efficiency 99%: 20 MICRON
Thread Size: 1-12 UN
Notes: Not for Marine Applications
Gasket OD: 3.39 IN
Emulsified H2O Efficiency: 96 PERCENT
Length: 193.2 MM
Weight
1.2400
Compatibility
Cummins-powered trucks 2010–Present
Construction and agricultural equipment using CUMMINS 3308638
Alternative Part Numbers
- AC DELCO 12921
- AC DELCO 25313753
- AC DELCO T921
- AC DELCO TP1009
- AC DELCO TP1057
- AC DELCO TP1262
- BIG A 95418
- CATERPILLAR 2266564
- CATERPILLAR 3I1306
- CATERPILLAR 3I1314
- CATERPILLAR 3I1366
- DETROIT DIESEL 23512317
- DETROIT DIESEL 23530771
- DETROIT DIESEL 23535985
- FORD 9576P558010
- FREIGHTLINER DNP558010
- GMC 19256911
- GUARDIAN G033418
- JLG 7024229
- KENWORTH KW1213
- KRALINATOR F183AR
- KRALINATOR FS183
- MARINE PERFORMANCE MPL3132
- PREVOST CAR 19500584
- TAMROCK 4521002
- TEREX 15504035
- VMC FS558010
- VOLVO 8064271
- VOLVO 8964271
- WALGAHN-MOTORENTECHN 00811469
- WALGAHN-MOTORENTECHN 811469
