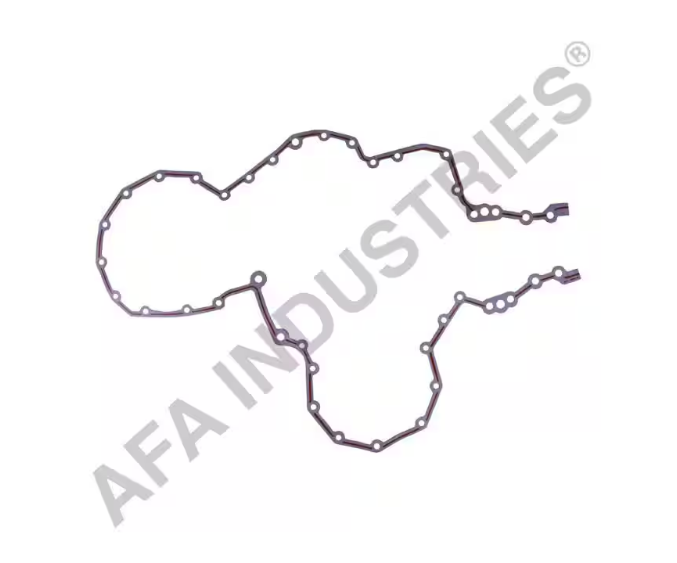

AFA Industries Front Housing Gasket 1669144
The AFA Industries 1669144 Front Housing Gasket seals the timing cover on Cat 3406E, C15, C16 engines. Designed to replicate OEM dimensions and seal characteristics, this static gasket prevents oil leaks and maintains coolant and pressure integrity at the engine’s front housing interface during high RPM and thermal cycling.
$26.96
Specifications
The AFA Industries 1669144 Front Housing Gasket is crafted to meet OEM-level specifications, providing a precise seal between the timing cover and engine block on Caterpillar heavy-duty engines, including the 3406, 3406E, C15, and C16 series. It matches Cat part 166‑9144 and cross-references including 102‑2226 and 124‑6014, ensuring compatibility with standard O-ring, gasket, and seal geometries used in front housing assemblies. Lightweight (~0.5 lb) with large flat dimensions (~26.6 × 17.9 in flange footprint and ~0.04 in thickness), it is built for optimal sealing under high thermal stress and mechanical load. Ideal for preventing oil seepage and coolant intrusion in both on-highway truck and off‑road equipment engines from mid‑1990s through early 2000s.
Weight
0.5
Compatibility
Caterpillar 3406, 3406E, C15, C16 (mid‑1990s through early‑2000s).
Freightliner Class 8 trucks using Cat 3406E/C15/C16.
Kenworth & Peterbilt heavy-duty models with Cat front housing design.
Cat articulated trucks (735, 740, D350E II, D400E II) and Challenger tractors (MT835‑MT865) using front housing gasket part 1669144.
Freightliner Class 8 trucks using Cat 3406E/C15/C16.
Kenworth & Peterbilt heavy-duty models with Cat front housing design.
Cat articulated trucks (735, 740, D350E II, D400E II) and Challenger tractors (MT835‑MT865) using front housing gasket part 1669144.
Alternative Part Numbers
Caterpillar 102‑2226
Caterpillar 124‑6014
Caterpillar 166‑9144
Interstate‑McBee M‑1246014
Interstate‑McBee M‑1669144
PAI 331396
Caterpillar 124‑6014
Caterpillar 166‑9144
Interstate‑McBee M‑1246014
Interstate‑McBee M‑1669144
PAI 331396
