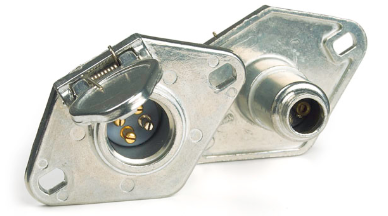

82-1020 Socket With Enclosed Terminals, 4 Pole
The GROTE 82-1020 is a heavy-duty 4-pole socket built for reliable trailer and truck electrical connections. It features enclosed split-pin terminals, a corrosion-resistant zinc die-cast housing, and durable brass pin contacts for excellent conductivity. Designed for 12-24 V systems and meeting SAE J560 specifications, this socket ensures safe and long-lasting performance in demanding conditions. Available now from Wofford Truck Parts.
$8.14
Specifications
The GROTE 82-1020 socket is engineered for superior performance in heavy-duty trailer and truck wiring systems. Its zinc die-cast housing provides outstanding corrosion resistance, ensuring durability even in harsh environments. Equipped with enclosed split-pin brass terminals, it offers excellent conductivity and protection from moisture or contaminants. Rated for 12–24 volts and up to 35 amps, it meets SAE J560 standards. Compact and easy to install, the 82-1020 delivers reliable, long-lasting connections for professional and fleet applications.
Standards: SAE J560
Material: Zinc die-cast
Product Type: Connector
Style: Heavy-Duty
Terminals: split pin, enclosed
Plug / Socket #: 4 Pole
Warranty: 1 Year
Voltage: 12-24V
Features & benefits
2 mounting holes - 0.26” by 0.37”
Mount holes 2.83” center to center of screw holes
Stainless steel spring
2, 1/4" mounting holes (82-1020)
Solid brass pin terminals for best conductivity
Die-cast housing for superior corrosion resistance
Compatibility
GMC 5500 2007
Great Dane Trailer * 1998-2006, 2008-2009, 2011-2017
Mack CHU612 2012-2013
Mack CHU613 2009-2014, 2016-2018
Mack CHU614 2015
Wabash Trailer 1998-1999, 2014
Alternative Part Numbers
50886
670-42
COLE-HERSEE 1232
TRUCK-LITE 50886
TECTRAN 670-42
VEL 055056
